This 8x8 HDMI matrix routes 8 Ultra HD sources to eight 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
- Max. resolution up to 3840*2160@30Hz

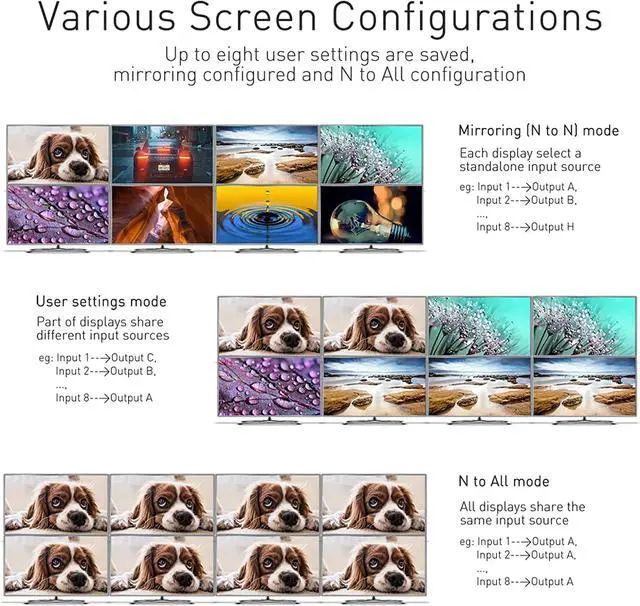

- Each HDMI output can share same input or select standalone input
- Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
- Smart EDID management, make it compatible with most display devices
- Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

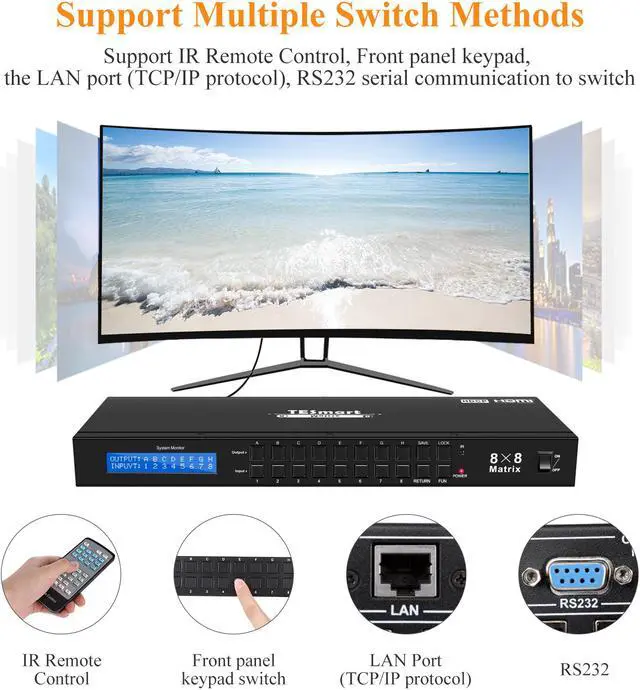

- Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
- Easy to view real time inputs and outputs status via LCD display

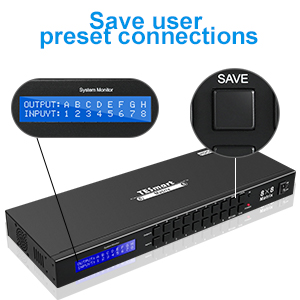

- Supports 8 configurable user preset connections
- Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
- HDCP1.4 compliant

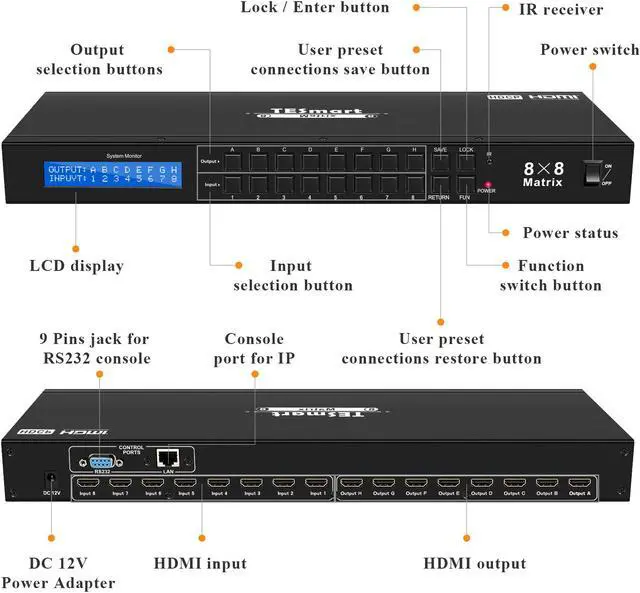

1. Press the "save" button, then press the "1/2/3/4" button in the scene block, save current routing status to a user preset memory 1/2/3/4.
2. Press the "save" button, then press the "1/2/3/4" button in scene block, load routing status from user preset memory 1/2/3/4 and apply to current routing.
3.Return button: Restore the user' s preset connection.
4. Save button: Save current routing status to one of the digital numbers in input select buttons.
5.LCD display: Display current routing status and system setting.
- RS232 PORT: Connect to local area network, control matrix by RS232 Codes.
- LAN PORT: Connect to local area network, control matrix by TCP/IP commands

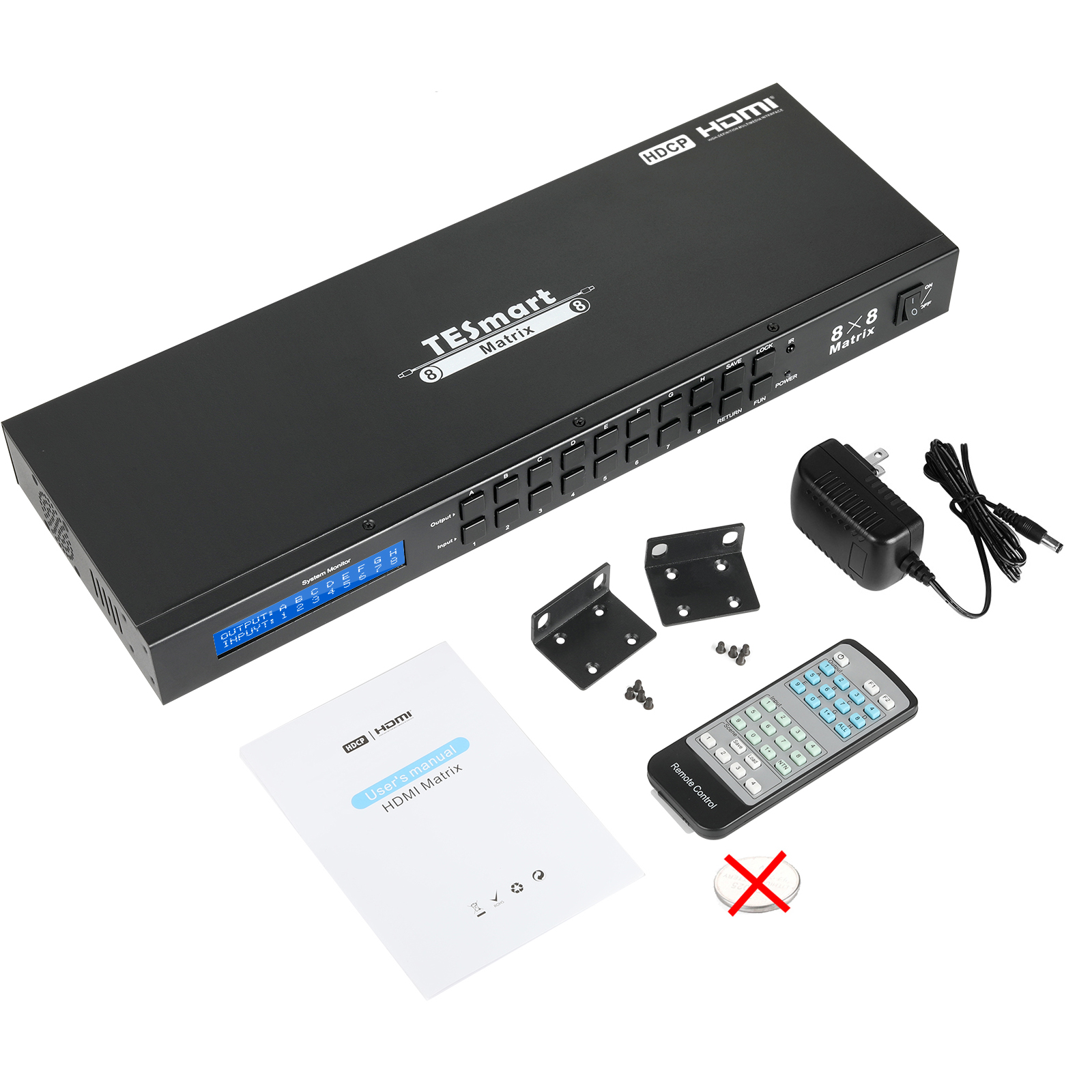

1 * HDMI Matrix 8x8
1 * Remote control
2 * Rack-ears
1 * DC 12V 2A Power Adapter
1 * User manual
