| HDMI version | HDMI 2.1 |
|---|---|
| Input ports | HDMI female x4 |
| Output ports | HDMI female X2 ,RCA X1, Optical X1 |
| HDMI Video | HDMI 2.1,HDCP 2.3,8K 60Hz 4:4:4 8bit 48Gbps HDR Do-l-by Vision, 4K 60Hz 4:4:4 10bit HDR10,HDR |
| HDMI Audio | Dolby Digital 5.1CH Audio,Do-l-by Atmos,Dolby TrueHD,DTS-HD Master,LPCM 2.1CH,5.1CH |
| Suggest HDMI-cable length | HDMI 2.1 standard cable, 4320P/AWG 26 < 3m/10 feet, 2160P/AWG 26 <5m/16.5 feet, 1080P/AWG 26 <10m/33 |
| Compatible systems | Windows, MacOS, and Linux. Drive-free. |
- Supports a multitude of video resolutions, including 480P/720P/1080P/2160P @24/25/30/50/60/ 100/120Hz;Up to 4320P@50/60Hz
- Support HDR10/Dolby Vision Support HDMI 2.1 and HDCP2.3,Support 48Gbps data rate and tmds clock up to 1Ghz

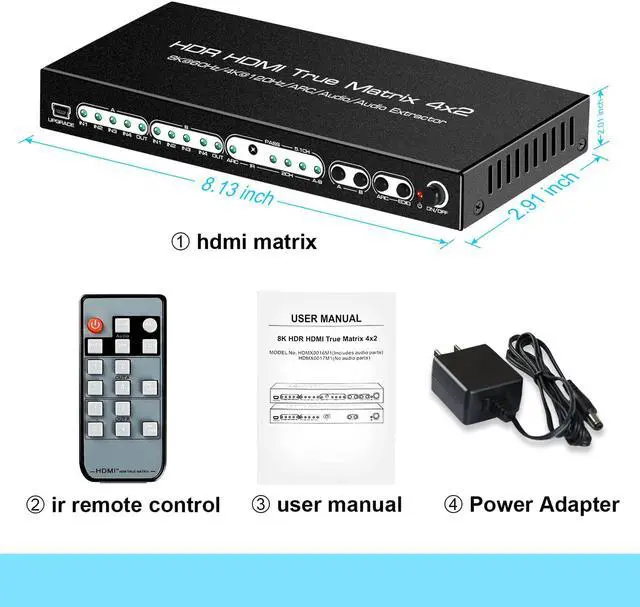

Package Contents:
- 4 x 2 HDMI-Matrix X1
- Remote Control x1
- User Manual x1
- Power Adapter
Extract audio from HDMI outputs and output to optical audio and L/R audio. HDMI Matrix Switch 4x2 Supports LPCM / Dolby / DTS 5.1 audio. Dolby Atoms HDR 10 Do-lby Vision.

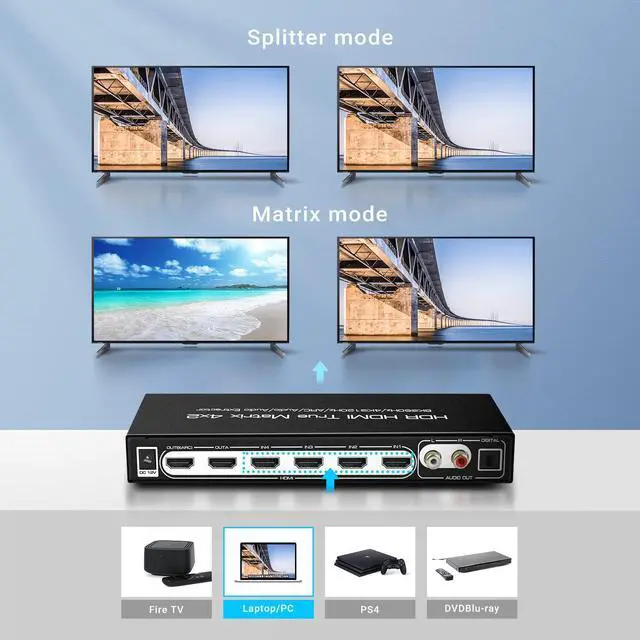

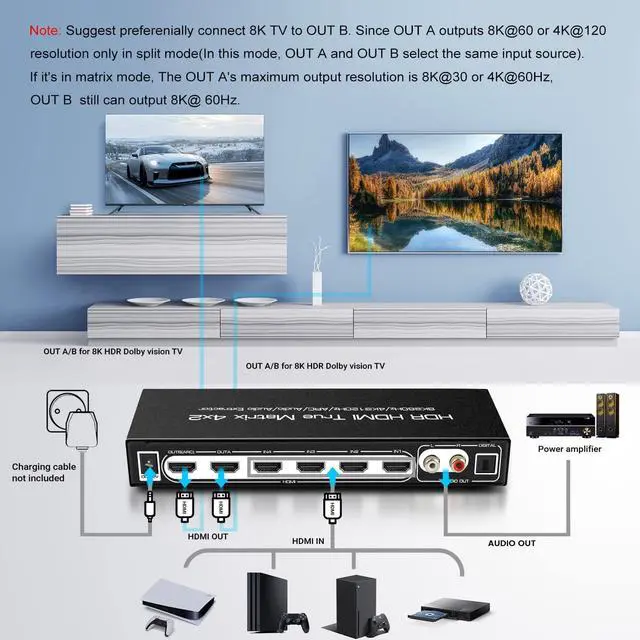

Note: 1. audio out is a set of multiplexed ports. You could select output the sound of out A or out B by using the key [A-B] on product/remote. 2.The audio EDID is also available for multiplexed. When audio source is same as out A, the audio EDID mode is valid for out A; When audio source is same as out B, the audio EDID mode is valid for out B. 3. Analog audio can only support LPCM mode, so it is recommended to choose the EDID mode as 2CH mode when using analog (L R) audio output.
Supports A R C. Return TV's audio to optical audio port where the TV's HDMI ports is ARC enabled. Supports audio independent EDID: choices for 5.1ch, 2.1ch and pass. Note: Only out B support ARC function. If you'd like to use ARC function, please connect the TV to out B port, and make sure the TV's HDMI port support ARC. Lastly, please press [ARC] button on product or remote to turn on ARC function.
This HDMI matrix 4 in 2 out can be switched using buttons. The 4K matrix switch splitter is also equipped with an infrared remote control, which makes switching videos more intuitive and convenient.
