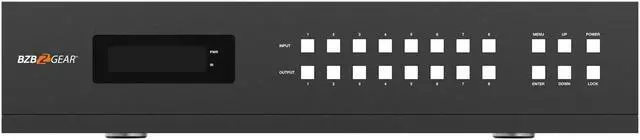

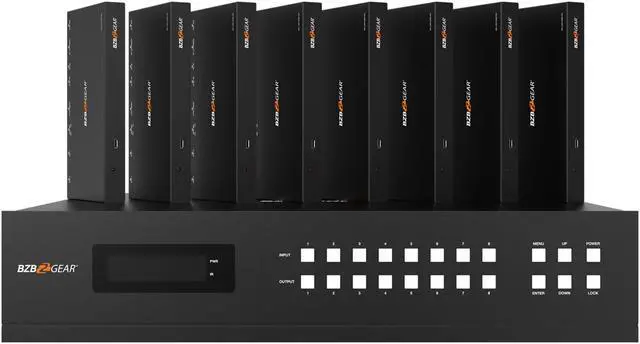

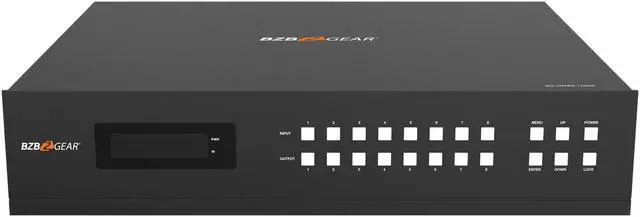

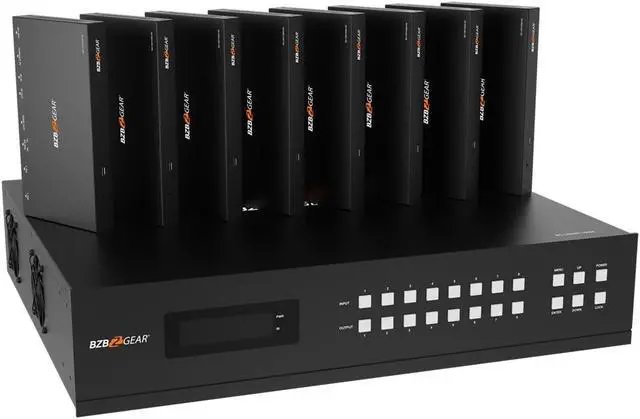

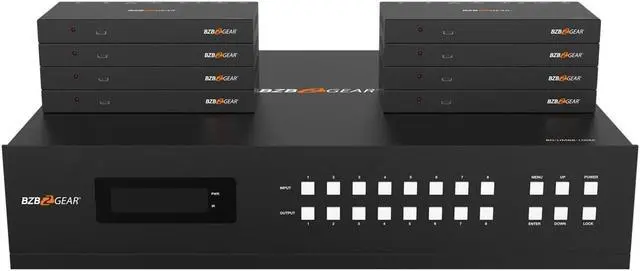

BZBGEAR 8x8 4K UHD HDMI/Audio Matrix Switcher Over HDBaseT with 2-Way IR/ARC/Ethernet/IP and RS-232 Control

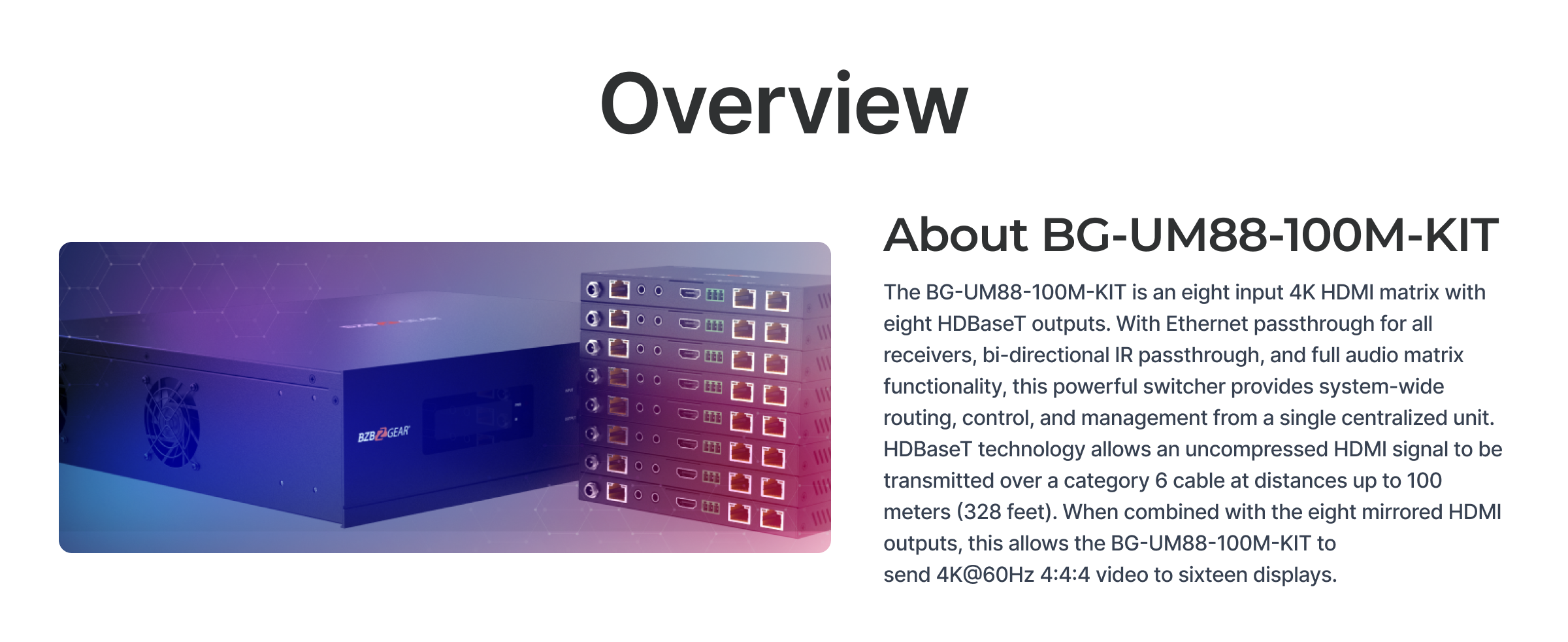

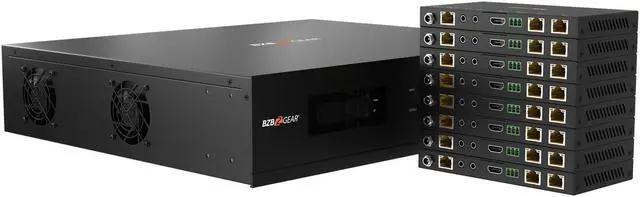

The BG-UM88-100M-KIT is an eight input 4K HDMI matrix with eight HDBaseT outputs. With Ethernet passthrough for all receivers, bi-directional IR passthrough, and full audio matrix functionality, this powerful switcher provides system-wide routing, control, and management from a single centralized unit.

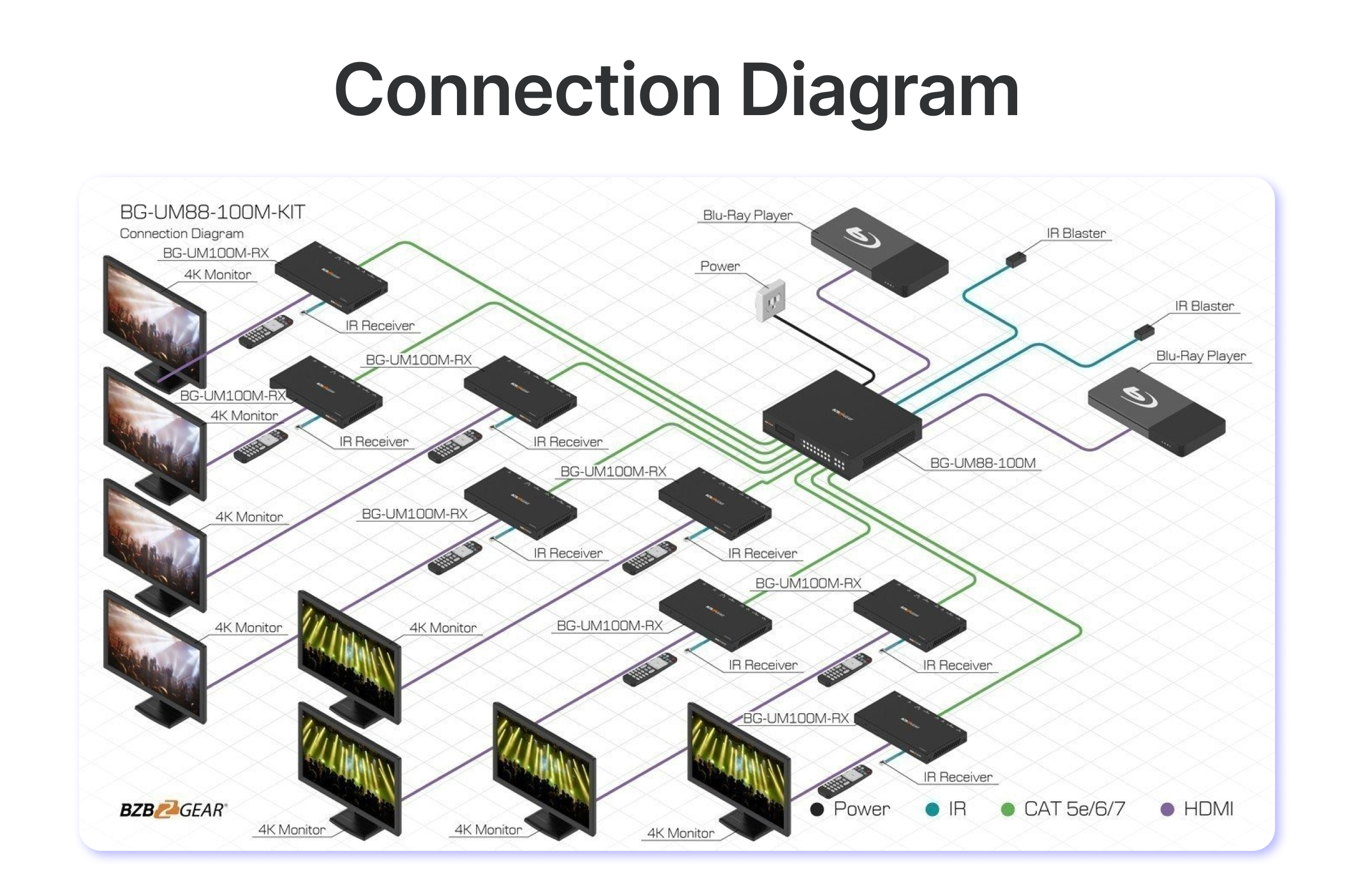

HDBaseT technology allows an uncompressed HDMI signal to be transmitted over a category 6 cable at distances up to 100 meters (328 feet). When combined with the eight mirrored HDMI outputs, this allows the BG-UM88-100M-KIT to send 4K@60Hz 4:4:4 video to sixteen displays.

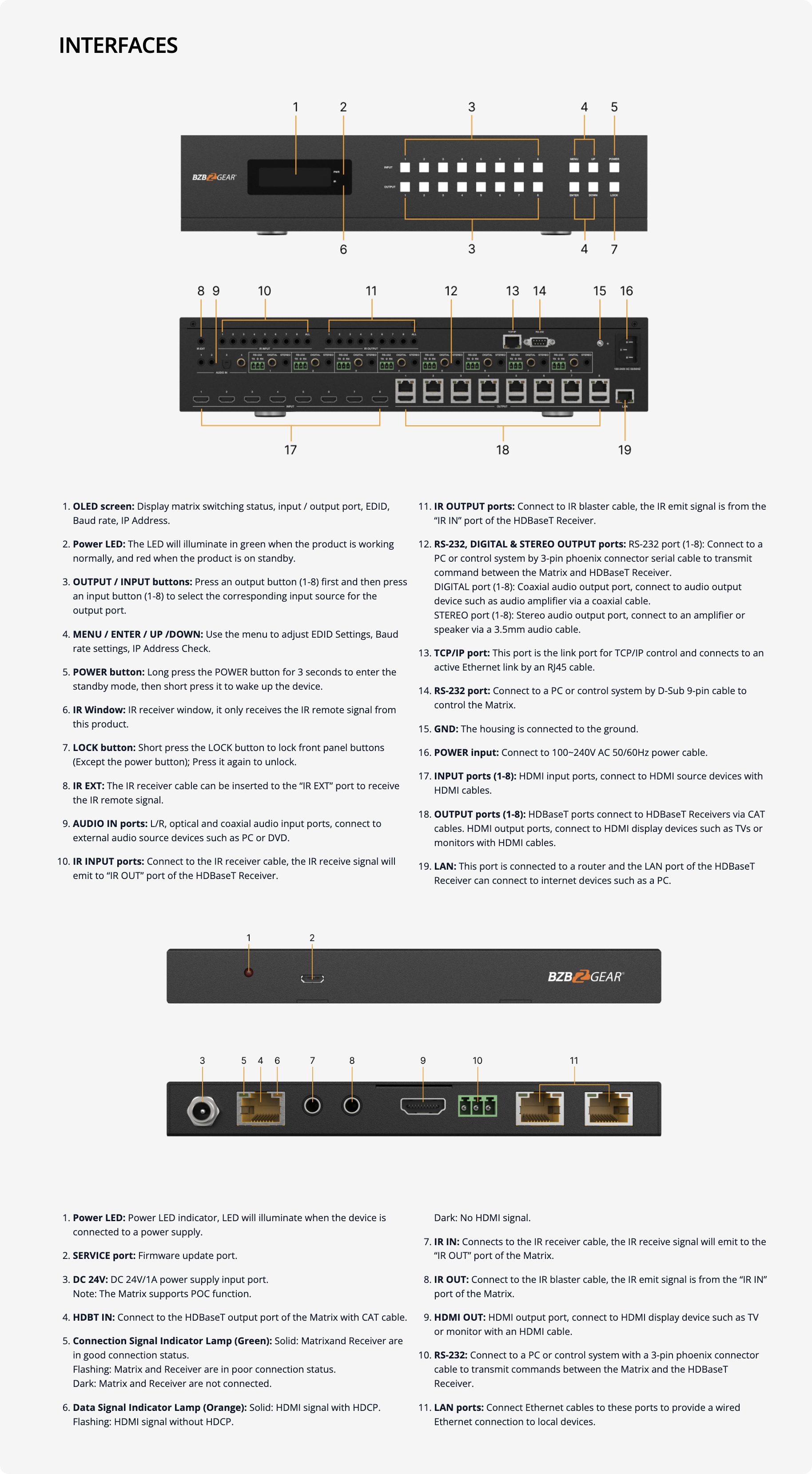

Connectivity & Features

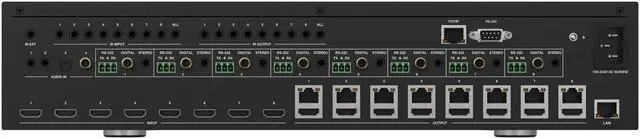

The BG-UM88-100M-KIT supports resolutions up to 4K@60Hz 4:4:4. The HDMI 2.0 ports are HDCP 2.2 compliant and transmit video at speeds up to 18Gbps while supporting Dolby Vision, HDR10+, and HLG formats. With the HDBaseT outputs, 4K@60Hz 4:4:4 video signals can be extended to distances of up to 328 feet (100 meters) over a single Category 6 cable. Each output performs 4K to 1080p downscaling and supports ARC (Audio Return Channel). With 24V power over cable on all HDBaseT outputs, the BG-UM88-100M-KIT supplies power to each HDBaseT receiver, each containing dual LAN ports.

Full audio matrix functionality is possible with the BG-UM88-100M-KIT. This allows users to select any of the HDMI, ARC, 3.5mm, optical, or coaxial audio sources and assign them to any of the HDMI, 3.5mm, or coaxial outputs. Two 3.5mm stereo, one optical, and one coaxial audio input ports provide audio embedding from external sources. Audio de-embedding is available from all eight HDMI sources via analog audio (3.5 mm stereo) and digital coaxial audio outputs.

Control

The BG-UM88-100M-KIT can be operated via the front panel menu, IR remote control, RS-232, or a detailed web interface. Bi-directional IR control is supported along with full IR matrix functionality. Smart EDID management via the front panel menu and web interface eliminate HDMI handshake issues for fast and reliable input switching. With bi-directional IR passthrough, RS-232 passthrough, and dual ethernet connections on each HDBaseT receiver, this powerful unit provides a centralized backbone for system-wide control and connectivity.

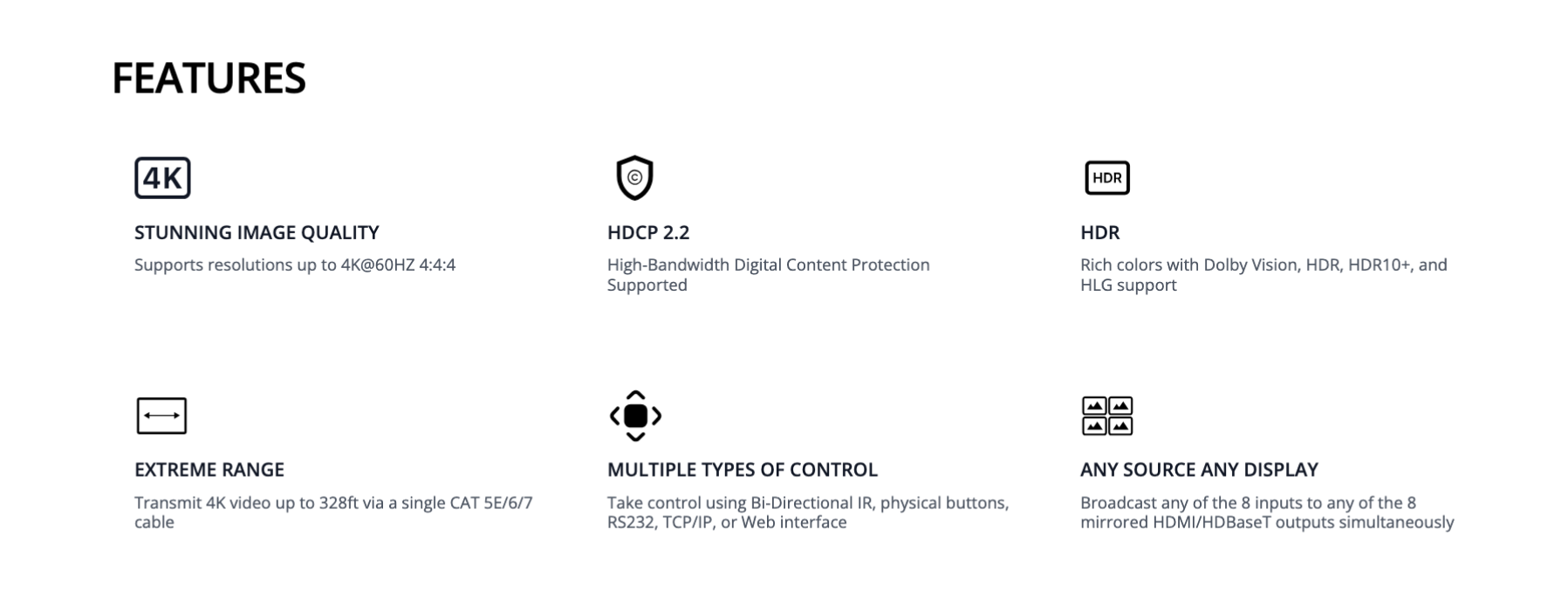

Features:

• Stunning Image Quality - Supports resolutions up to 4K@60Hz 4:4:4
• Compliant - HDMI 2.0 and HDCP 2.2 to ensure copyright protections
• HDR - Rich colors with Dolby Vision, HDR, HDR10+, and HLG support
• Extreme Range - Transmit 4K video up to 328ft via a single CAT 5E/6/7 cable
• Multiple Control Options - Take control using Bi-Directional IR, physical buttons, RS232, TCP/IP, or Web interface
• Any Source Any Display - Broadcast any of the 8 inputs to any of the 8 mirrored HDMI/HDBaseT outputs simultaneously
• Supports 4K->1080P Down-Scaling
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Supports ARC functionality on local HDMI and HDBaseT outputs
• IR matrix and Audio matrix are supported
• Smart EDID management
• 24V power over Cat5e/6/7 on all HDBaseT ports
