4x4 4K UHD Seamless HDMI Matrix Switcher/Video Wall
4X4 Matrixing | Video Wall | Multiview Capabilities | HDCP Compliant | Control Options
The BG-4K-VP44 is a powerful video processor and supports four HDMI inputs that can be independently routed to HDMI Outputs. This unit can create video walls, act as a multi-viewer and perform matrix functions! The BG-4K-VP44 supports Video Wall configurations of up to 7 different modes with each monitor. It can also display four pictures on the same screen and has multiple split display modes.
With max resolutions up to 4K@60HZ 4:4:4, the BG-4K-VP44 is capable of producing high-quality imagery with pristine detailing and rich color. All HDMI ports on this unit are HDCP 2.2 compliant. This device also supports analog audio extraction, and audio channels can be switched independently.
The BG-4K-VP44 offers multiple control methods including front panel controls, IR remote control, RS-232, or IP control.
4X4 Matrixing
4x HDMI Inputs that can be independently routed to 4 HDMI Outputs
Video Wall
Supports Video Wall up to 7 different modes with each monitor
Multiview Capabilities
It can display 4 pictures on the same screen and has multiple split display modes
HDCP Compliant
HDCP 2.2 compliancy ensures copyright protection
Control Options
Control via panel button, Remote Control, RS232 Control, TCP/IP Control, BZBGEAR Switch Control
4K@60Hz
Supports resolution up to 4K@60Hz 4:4:4
Seamless Switching & EDID
No switching delay or picture loss during transitions; seamless scaling for the best results
Audio Support
Supports HDMI audio formats including Dolby-5.1, DTS-5.1; analog audio extraction, and the audio can be independently switched
Connection Diagram
The BG-4K-VP44 takes HDMI inputs from sources such as a Blu-Ray player, PS5, BG-ADAMO-4K camera and laptop/PC and routes them to video wall or multiview displays, with a network switcher on CAT 5e/6/7 and an audio system on S/PDIF.

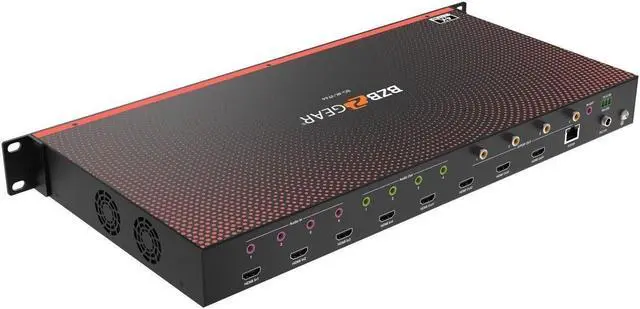

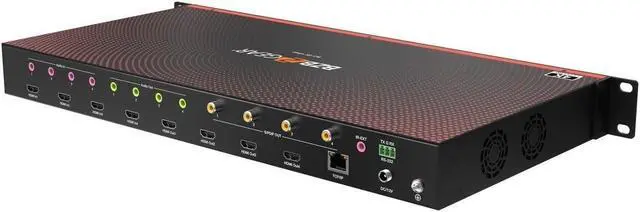

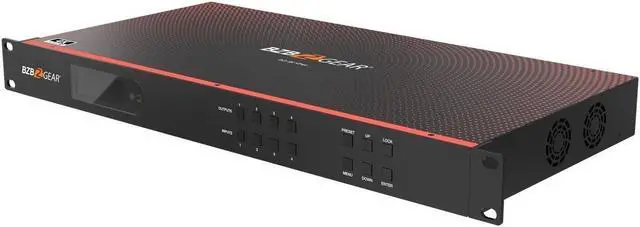

Front and Rear Panels
1. LCD Screen - LCD screen and IR receiving port, indicator light
2. Output & Input buttons - Output button OUT 1~4 & Input button IN 1~4
3. MENU button - PRESET, MENU, UP, DOWN, LOCK, ENTER
4. Audio In 1~4 - 3.5mm ports
5. Audio Out 1~4 - 3.5mm ports
6. S/PDIF OUT 1~4 - Coaxial Ports
7. IR EXT - 3.5mm port
8. RS232 Port - 3PIN Phoenix port:TX - GND - RX
9. HDMI IN 1~4 - A type 19 PIN-HDMI Port
10. HDMI OUT 1~4 - A type 19 PIN-HDMI Port
11. Ethernet port - WEB GUI Control
12. Power - Power input 12V/3A
Specifications
| Input ports | 4xHDMI |
|---|---|
| Output ports | 4xHDMI |
| Video Format Supported | 4K@60Hz, YUV4:4:4 8 bit; 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | HDMI digital audio DTS-5.1/Dolby-5.1 |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Bandwidth | 18 Gbit/s |
| Matrix mode | 4x4 seamless switching |
| Video Wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Power Consumption | 23 Watts (Max.) |
| Operating Temperature Range | 23 to +104 F / -5 to +40 C |
| Storage Temperature Range | -14 to +140 F / -10 to +60 C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Dimensions | Matrix: 10"(L) x 6.4"(W) x 1.4"(H) [L262 x W163 x H36 mm] |
| Mass (Main Unit) | 6lbs [2710g] |
| Package Contents | 1x Main Unit (4x4 HDMI Matrix); 1x DC 12V/3A power adapter; 1x Remote control; 1x Wide-Band IR Receiver cable; 1x 3 Pin Phoenix terminal plug |
