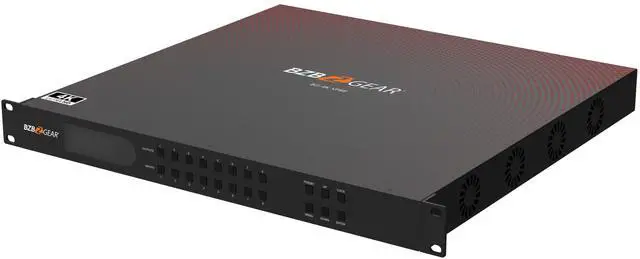

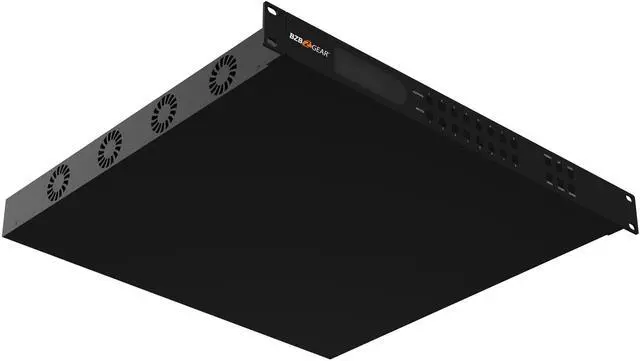

8x8 4K UHD Seamless HDMI Matrix Switcher/Video Wall
8X8 Matrixing | Video Wall | Multiview Capabilities | HDCP Compliant | Control Options
The BG-4K-VP88 supports eight HDMI inputs that can be independently routed to HDMI Outputs. This unit can create video walls, act as a multi-viewer and perform matrix functions! The BG-4K-VP88 supports video wall configurations of up to 7 different modes with each monitor. It can also display eight pictures on the same screen and has multiple split display modes.
8X8 Matrixing
8x HDMI Inputs which can be independently routed to 8 HDMI Outputs
Video Wall
Supports Video Wall up to 7 different modes with each monitor
Multiview Capabilities
Up to 8 sources can be displayed on each output in different layouts
HDCP Compliant
HDCP 2.2 compliancy ensures copyright protection
Control Options
Control via panel button, Remote Control, RS232 Control, TCP/IP Control, Switch Control App
4K@60Hz
Supports resolution up to 4K@60Hz 4:4:4
Seamless Switching & EDID
No switching delay or picture loss during transitions, and EDID management for seamless scaling and the best results
Audio Support
Supports HDMI audio formats including Dolby-5.1 and DTS-5.1, plus analog audio extraction that can be switched independently

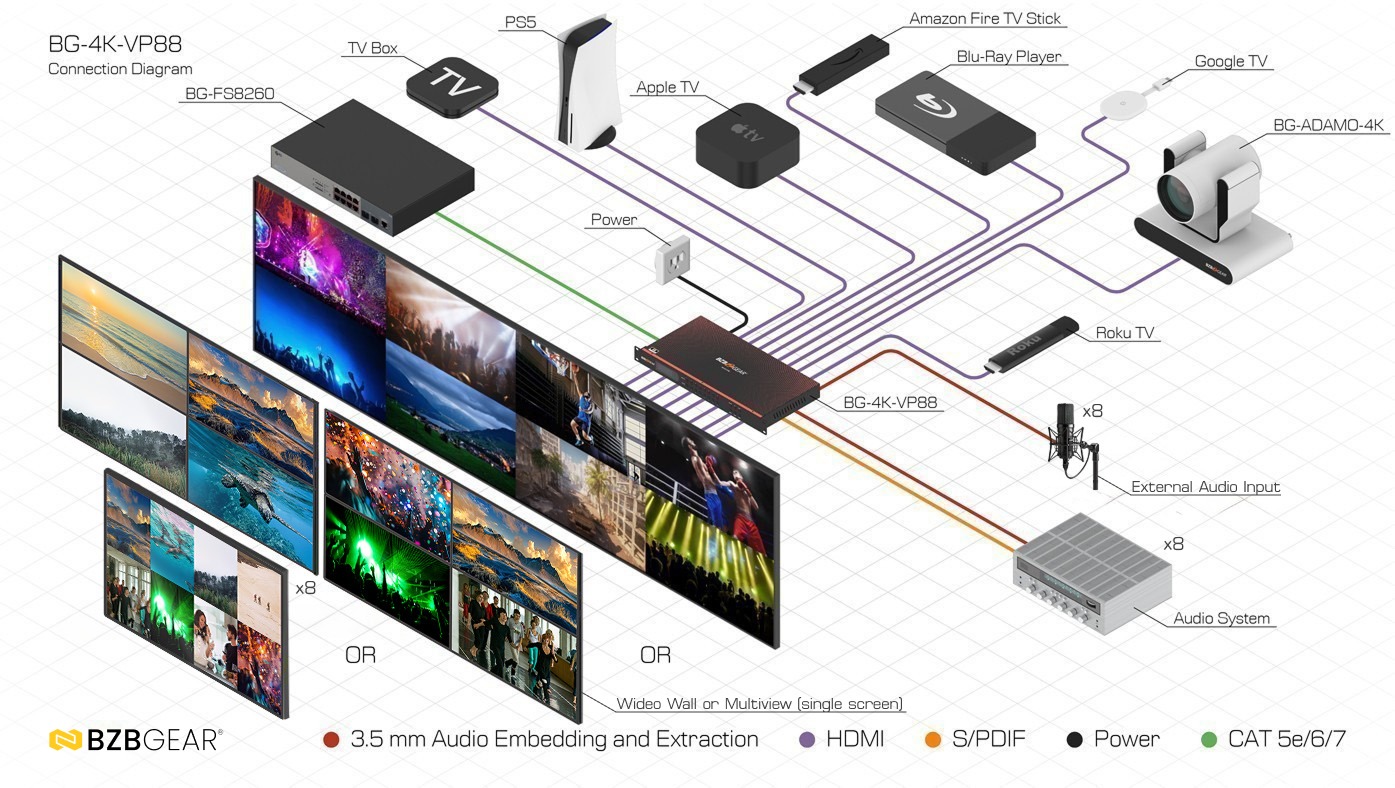

Connection Diagram
HDMI sources such as a Blu-Ray player, Apple TV, PS5, Amazon Fire TV Stick, Google TV and Roku connect to the BG-4K-VP88, which can drive a video wall or a multiview single screen. External audio inputs and an audio system connect through the 3.5 mm and S/PDIF ports, and a network switch connects over CAT cable.

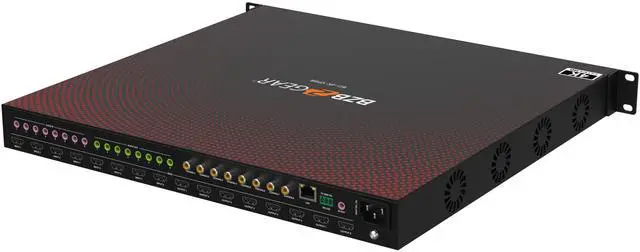

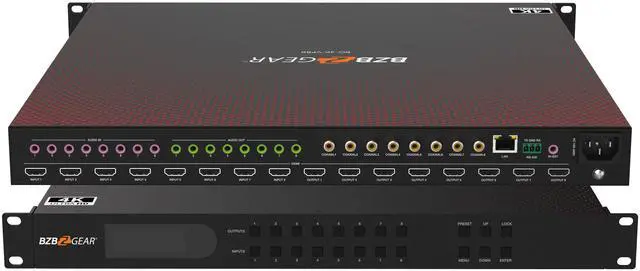

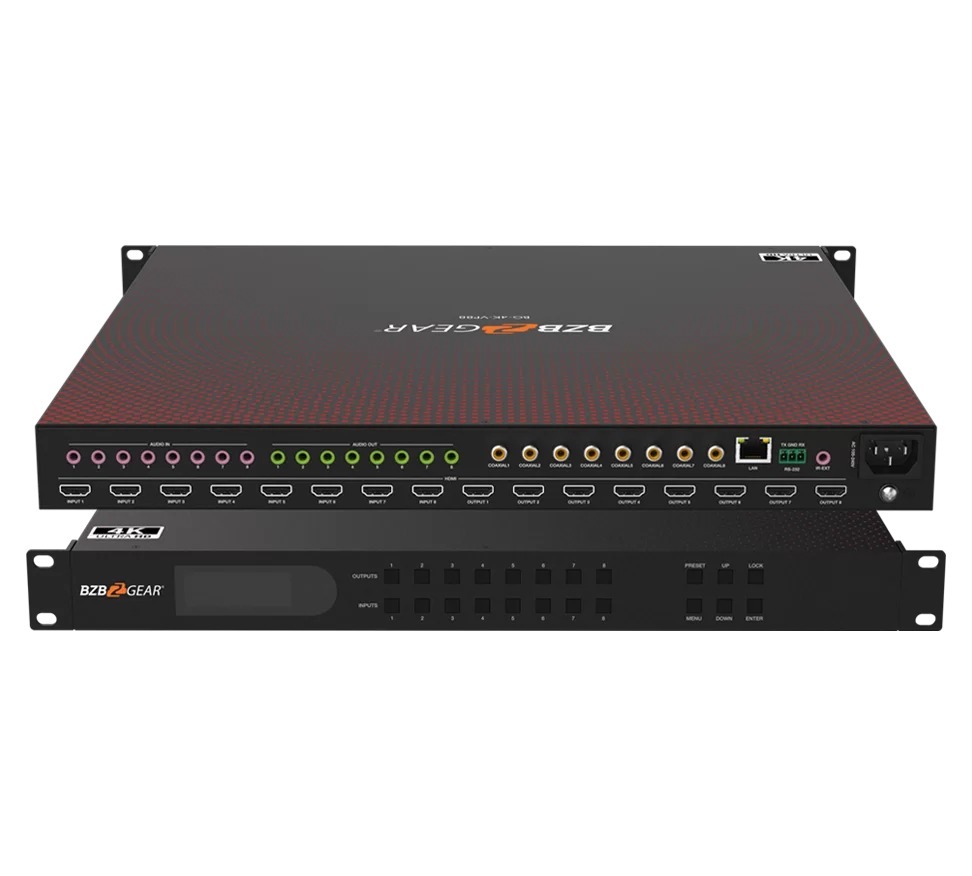

Front and Rear Panels
1. LCD Screen - 192x64-LCD Screen
2. Output 1~8 - Black button for Matrix switching
3. Input 1~8 - Black button for Matrix switching
4. Preset - Easy for preset calling
5. UP - Function button: UP
6. Lock - Press over 1s, panel button will be locked. Re-press to unlock
7. Menu - Function button: Menu
8. Down - Function button: Down
9. Enter - Function button: Enter
10. Audio Embedded 1~8 - 3.5mm ports, Sampling Rate: 32K~192Khz
11. Audio Extraction 1~8 - 3.5mm ports, Sampling Rate: 32K~192Khz
12. SPDIF Extraction 1~8 - Coaxial Port, Sampling Rate: 32K~192Khz
13. LAN Port - WEB GUI Control
14. RS232 Port - 3PIN Phoenix port: TX - GND - RX
15. IR EXT - 3.5mm ports, supports 38~52Khz frequency
16. HDMI Inputs 1~8 - A type 19 PIN-HDMI Port
17. HDMI Outputs 1~8 - A type 19 PIN-HDMI Port
18. Power - AC110V~240V
| Input ports | 8xHDMI |
|---|---|
| Output ports | 8xHDMI |
| Video Format Supported | 4K@60Hz, YUV4:4:4 8 bit; 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | HDMI digital audio DTS-5.1/Dolby-5.1 |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Bandwidth | 18 Gbit/s |
| Matrix mode | 8x8 seamless switching |
| Video Wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Power Consumption | 92 Watts (Max.) |
| Operating Temperature Range | 23 to +104 F / -5 to +40 C |
| Storage Temperature Range | -14 to +140 F / -10 to +60 C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Dimensions (L x W x H) | 17.2" x 16.4" x 1.7" [438 x 416 x 44 mm] |
| Package Contents |
1x Main Unit (8x8 HDMI Matrix); 1x Power Cable; 1x Remote Control; 1x Wide-Band IR Receiver Cable; 1x CD for user manual & Command list; 1x 3 Pin Phoenix terminal plug |
