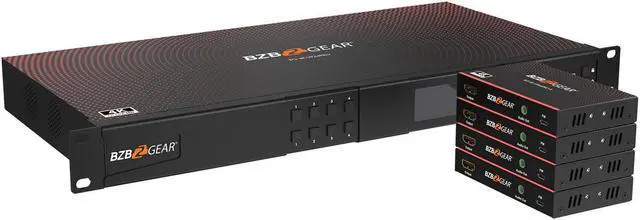

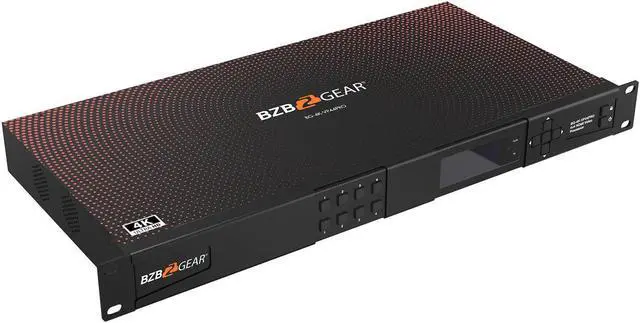

4x4 4K UHD Seamless HDMI Matrix Switcher/Video Wall
Signal Extension | Audio Matrixing | PoC | Multiview Mode | Video Wall Mode | 4K UHD
Introducing the BG-4K-VP44PRO: Your Ultimate 4x4 HDMI 2.0 CAT5/6/7 Seamless Matrix. Experience the next level of video distribution with the BG-4K-VP44PRO, a versatile all-in-one solution that's redefining the audiovisual landscape. Packed with advanced features like video wall and multi-view modes, this device unleashes a new era of flexibility, empowering your audiovisual setup with unmatched signal extension capabilities for even the most expansive spaces. Its sophisticated audio matrixing ensures crystal-clear sound, while the Power over Cable (PoC) functionality eliminates cable clutter, streamlining your setup and providing a cleaner, more efficient solution. Upgrade your AV setup today with the BG-4K-VP44PRO and elevate your entertainment experience to new heights.
Signal Extension & Loop-Out
Extend your HDMI 2.0 signals up to 70m (229ft) over category cable; HDMI Loop-Out
Audio Matrixing & LPCM 2.0
Analog audio embedded & extraction - the audio can be independently routed; LPCM 2.0 audio format
PoC
Power over Cable enables devices to be powered and centralized via a single cable connection
Multiview Mode
Display 4 different sources on the same screen
Video Wall Mode
Supports up to a 2X2 video wall - Up to 7 different modes built-in and supports cascading
4K UHD
Support for 4K@60Hz 4:4:4 8bit, HDCP 2.2
Seamless Matrix & EDID
4 in 4 out, no switching delay and signal loss; advanced EDID Management
Control Options
Control via Panel button, Remote, RS232, TCP/IP Control, BZBGEAR Pro PTZ Camera Control
Connection Diagram
The BG-4K-VP44PRO distributes HDMI sources such as a Blu-Ray player, Apple TV, PS5 and a BG-ADAMO-4K camera over CAT 5e/6/7 to four BG-4K-VP44PRO-R receivers and 4K TVs, with stereo audio to an audio system and speakers, IR receivers and blasters, and a BG-FS8260 switch.

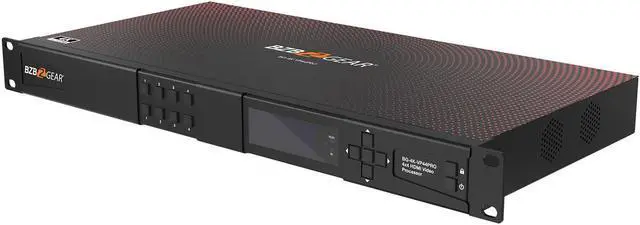

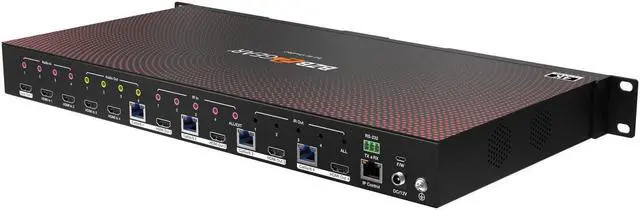

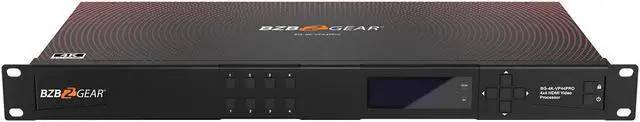

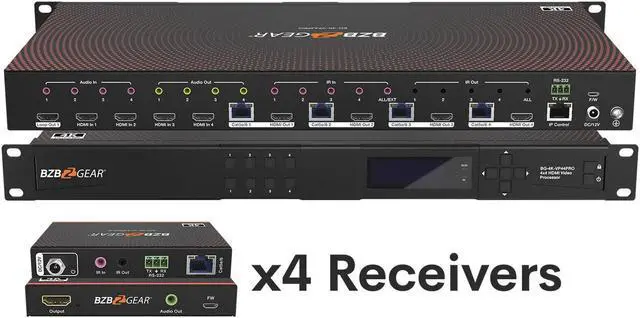

Front and Rear Panels
1. Audio In - 3.5mm stereo mini
2. Audio Out - 3.5mm stereo mini
3. IR In - Connect the IR receiver extension cable
4. IR Out - Connect the IR blaster extension cable
5. Control Connections - 3-Pin Phoenix RS232
6. FW - Micro USB for firmware updates
7. HDMI Input and Loopout - 4x HDMI 2.0 inputs and 1x HDMI loopout
8. HDMI Output and Cat5e/6 Extension ports
9. DC Power Input - DC 12V power supply
10. Output Select Buttons 1 - 4
11. Input Select Buttons 1 - 4
12. LED Display - Shows onscreen menu and current matrix routing
13. IR Remote Window and LED Indicators - Receives IR remote commands and LED lights display current command status
14. Menu Control Buttons - Left, Right, Up, Down, Lock and Enter
15. Lock Button - Button are used to lock OSD navigation
16. Power Button - Turning the device on/off

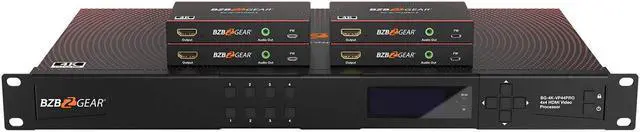

Receiver Panels
1. DC Power Input (Receiver) - 12V DC power input for receiver
2. IR In (Receiver) - Connect the IR receiver extension cable. IR follows video matrix routing
3. IR Out (Receiver) - Connect the IR blaster extension cable. IR follows video matrix routing
4. RS232 (Receiver) - 3-Pin Phoenix for RS232 control command passthrough
5. Cat5e/6 (Receiver) - LAN connection to base unit for signal extension and PoC power
6. Output (Receiver) - HDMI 2.0 output for audio and video
7. Audio Out (Receiver) - 3.5mm stereo mini for audio extraction
8. FW (Receiver) - Micro USB for firmware updates
| Input ports | 4x HDMI Ports |
|---|---|
| Output ports | 4x RJ45 Ports and 4x HDMI Ports |
| Matrix mode | 4x4 seamless switching |
| Video Wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Video Input Connectors | 4x HDMI Type A, 19-pin, female |
| Video Output Connectors | 4x RJ45 female and 4x HDMI Type A, 19-pin, female |
| Bandwidth | 18Gbit/s |
| Video Format Supported | 4K@60Hz,YUV4:4:4 8bit; 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | LPCM 2.0 |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Power Consumption | 41 Watts (Max) |
| Dimensions (L x W x H) | Matrix: 10 x 6.4 x 1.4in [262 x 163 x 36mm] |
| Weight (Main Unit) | Matrix: 5.97 lbs [2710g] |
| Operating Temperature Range | 23 to +104 F / -5 to +40 C |
| Storage Temperature Range | -14 to +140 F / -10 to +60 C |
| Operating Humidity Range | 5 to 90% RH (no condensation) |
| Package Contents | 1x BG-4K-VP44PRO; 1x 12V/4A DC power adapter; 1x Remote control; 5x 3 Pin Phoenix Terminal Plug; 4x BG-4K-VP44PRO-R; 5x IR Transmitter Cables; 5x IR Receiver Cables; 1x CD and User Manual |
