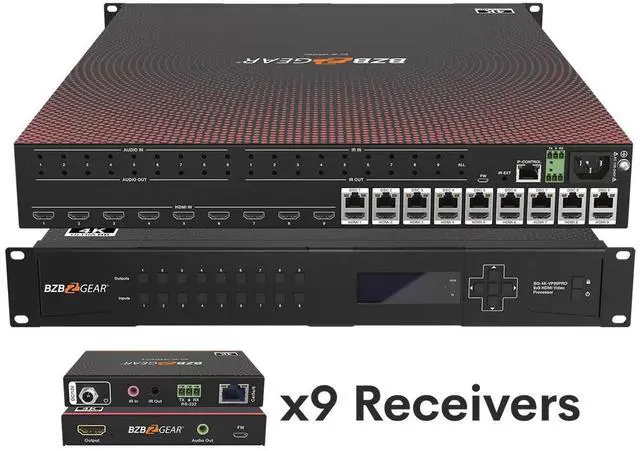

9x9 4K UHD Seamless HDMI Matrix Switcher/Video Wall
Signal Extension | Audio Routing | PoC | Multiview Mode | Video Wall Mode
The BG-4K-VP99PRO is a highly versatile HDMI matrix switcher /video wall processor/ multiviewer, perfect for professional AV installations. Offering exceptional connectivity with 9 HDMI inputs, outputs, and loopouts, it extends HDMI signals up to 70 meters over CAT5e/6/7. With support for resolutions up to 4K60Hz 4:4:4 and advanced video processing, it enables seamless switching between video sources, 3x3 video wall creation, and the display of up to 9 sources on one screen. Balanced audio extraction and multiple control options ensure an immersive experience, making it ideal for presentations and conferences. It offers a future-proof design with HDCP compliance and firmware updates via a micro-USB port, making it a comprehensive solution for professional AV setups.
Signal Extension
Extend your HDMI outputs up to 70m (230ft) over category cable
Audio Routing
External audio embedding and de-embedding audio from the outputs. Independent audio matrixing
PoC
Power over Cable enables extension receivers to be powered by the main unit.
Multiview Mode
Display up to 9 sources on one screen or make custom layouts on multiple screens
Video Wall Mode
Supports multiple separate video walls simultaneously or one expansive 3x3 configuration
Seamless Matrix
Switch between 9 sources on 9 displays with no delay and no signal loss
HDCP 2.2 Compliant
Advanced EDID Management
Control Options
Control via Panel button, Remote, RS232, TCP/IP or BG-Switch-Control App
Firmware Updates
Micro-USB for firmware updates
Audio Extraction
Audio extraction on local unit and remote receivers
IR Routing
Advanced IR routing to control sources and displays
Connection Diagram
The BG-4K-VP99PRO takes up to 9 HDMI sources and sends video over CAT5e/6/7 to BG-4K-VP99PRO-R receivers feeding a 3x3 video wall, with HDMI mirrored outputs and loopouts, audio systems and speakers, IR, and RS-232/CAT control from a PC.
| HDMI Input | 9x HDMI In |
|---|---|
| HDMI Output | 9x HDMI loopout, 9x HDMI Out |
| Audio output | Analog (Balanced audio) |
| Video Format Supported | 4K@60Hz/1080P/720P/576P/480P/480i |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Control way | Panel button/Remote/TCP/IP/RS232 |
| Audio Format Supported | PCM, Dolby 5.1/7.1, DTS 5.1/7.1 digital audio |
| USB | Firmware update |
| Power Consumption | 138 Watts |
| Dimensions (L x W x H) | 1.5U Rack Design 21.5 x 17.5 x 2.75in [546 x 445 x 70mm] |
| Ship Pack Dimensions (L x W x H) | 27.5 x 22 x 6.3in [700 x 560 x 160mm] |
| Mass (Main Unit) | 12.1 lbs [5.48 kg] |
| Ship Pack Weight | 37 lbs [16.78 kg] |
| Operating Temperature Range | 23 to +104 F / -5 to +40 C |
| Storage Temperature Range | -14 to +140 F / -10 to +60 C |
| Operating Humidity Range | 5 to 90% RH (no condensation) |
| Package Contents | 1x Main Unit; 1x Power Adapter DC24V4A; 1x Power Adapter DC12V3A; 1x Remote Controller; 1x Mounting ear kit; 1x IR-TX & IR-RX cable kit; 1x Disk (User manual; Update software; Command list) |
