16x16 8K UHD HDMI 2.1 Matrix Switcher
16X16 Routing | HDCP Compliant | 8K and 4K@120Hz | Auto Scaling | Control Options
The BG-8K-1616MA 8K HDMI matrix switch is an excellent device for situations where you need to share up to sixteen HDMI sources with up to sixteen displays. It comes with sixteen HDMI 2.1a inputs and sixteen HDMI 2.1a outputs, allowing you to switch between multiple sources and display them on various screens at the same time, or select one source and display it on all screens simultaneously with the push of a button. The device supports 8K resolutions and various high-quality audio formats, ensuring professional-grade picture and audio quality.
For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-1616MA can help ensure that your games are displayed with the highest level of detail and fluidity.
16X16 Routing
Features 16 x HDMI inputs which can be independently routed to 16 x HDMI outputs
HDCP Compliant
HDMI 2.1a (48Gbps) HDCP 2.3 (and all earlier versions supported)
8K and 4K@120Hz
Up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4 8K to 4K or 8K/4K to 1080p
Auto Scaling
Down Scaling on all outputs
Control Options
Control via front panel, IR, RS-232, TCP/IP (Web GUI), BZBGEAR Switch Control App
EDID management
Seamless scaling for the best results
HDR Pass-Through
HDR, HDR10, HDR10+, Dolby Vision pass-through; VRR, ALLM, QMS, QFT, SBTM are supported
S/PDIF and Balanced Audio
Digital S/PDIF and balanced audio output
Connection Diagram
HDMI sources such as a laptop, a desktop PC and a media box connect to the BG-8K-1616MA, which routes them over HDMI to multiple displays.

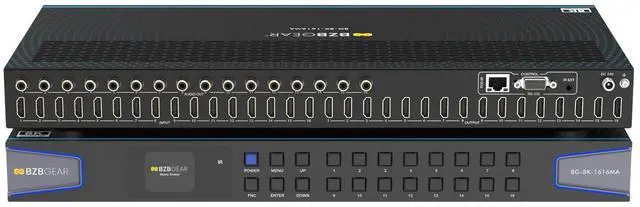

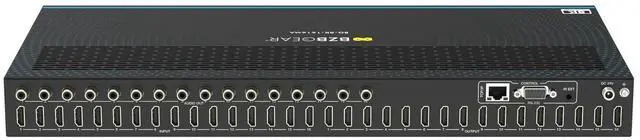

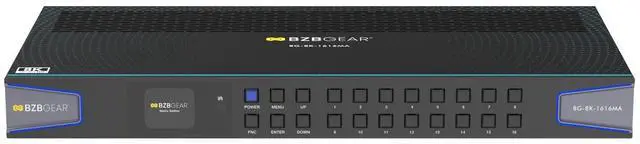

Front and Rear Panels
1. HDMI Input - HDMI input 1~16
2. HDMI Output - HDMI output 1~16
3. Audio Outputs - Digital audio outputs
4. TCP/IP - RJ45 ethernet connection for network control
5. RS-232 - D-sub 9-pin connector for RS-232 commands
6. IR Ext - 3.5mm IR receiver extension port
7. Power - DC24V/3.75A power port
8. OLED Display - Displays matrix status, power indicator, and IR receiver
9. Menu Navigation - Menu, Enter, Up, Down, Power, and Panel Lock
10. In/Out Buttons - Input/Output buttons 1~16
| HDMI Compliance | HDMI 2.1 |
|---|---|
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 1200MHz/48Gbps |
| Video Resolution | Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4, 4K120Hz 4:4:4, 1080p240Hz |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI In/Out: LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Digital Audio Outputs |
| ESD Protection | Human body model: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Input ports | 16x HDMI [Type A, 19-pin female] |
| Output ports | 16x HDMI [Type A, 19-pin female]; 16x Digital Audio |
| Control ports | 1x TCP/IP [RJ45]; 1x RS-232 [D-Sub 9]; 1x IR EXT [3.5mm, Stereo Mini-jack] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 17in x 10in x 1.8in [440mm x 256mm x 44.5mm] |
| Weight | 10 lbs [4.54kg] |
| Power Supply | Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified) |
| Operating Temperature | 32 - 104 F / 0 - 40 C |
| Storage Temperature | -4 - 140 F / -20 - 60 C |
| Relative Humidity | 20 - 90% RH (no-condensing) |
| Package Contents | 1 x BG-8K-1616MA; 1 x 24V/3.75A Locking Power Adapter; 1 x AC Power Cord (1.5m); 1 x IR Remote; 1 x 12V IR Wideband Receiver Cable (1.5m); 1 x RS-232 Serial Cable (1.5m, male to female head); 8 x 5-pin 3.81mm Phoenix Connectors; 8 x Machine Screws (KM3*4); 2 x Mounting Ears |
