BZBGEAR 4x1 8K UHD HDMI/USB-C 2.1 Switcher (8K60/4K120Hz 4:4:4 VRR/ALLM/QMS/QFT/SBTM Support)
- UHD USB-C Quality - Supports resolutions up to 8K@30Hz (4:2:2, 10-bit) and 4K@120Hz (4:2:2, 10-bit) via USB-C
- UHD HDMI Quality - Supports resolutions up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz (4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit)
- Input Switching Options - Supports automatic and manual input switching, controllable via front panel buttons and IR remote
- CEC Control Functionality - Enables CEC pass-through control from the display (output) to the source device (input)
- Audio Pass-Through - Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio formats
- HDR Pass-Through - Passes through HDR formats, including HDR, HDR10, HDR10+, Dolby Vision, and HLG
- Advanced HDMI 2.1 Features: Supports VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport), and SBTM (Source-Based Tone Mapping)

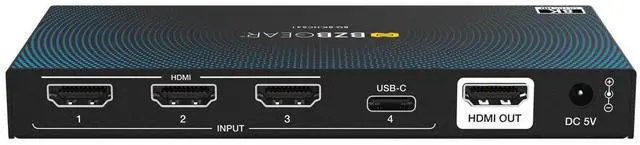

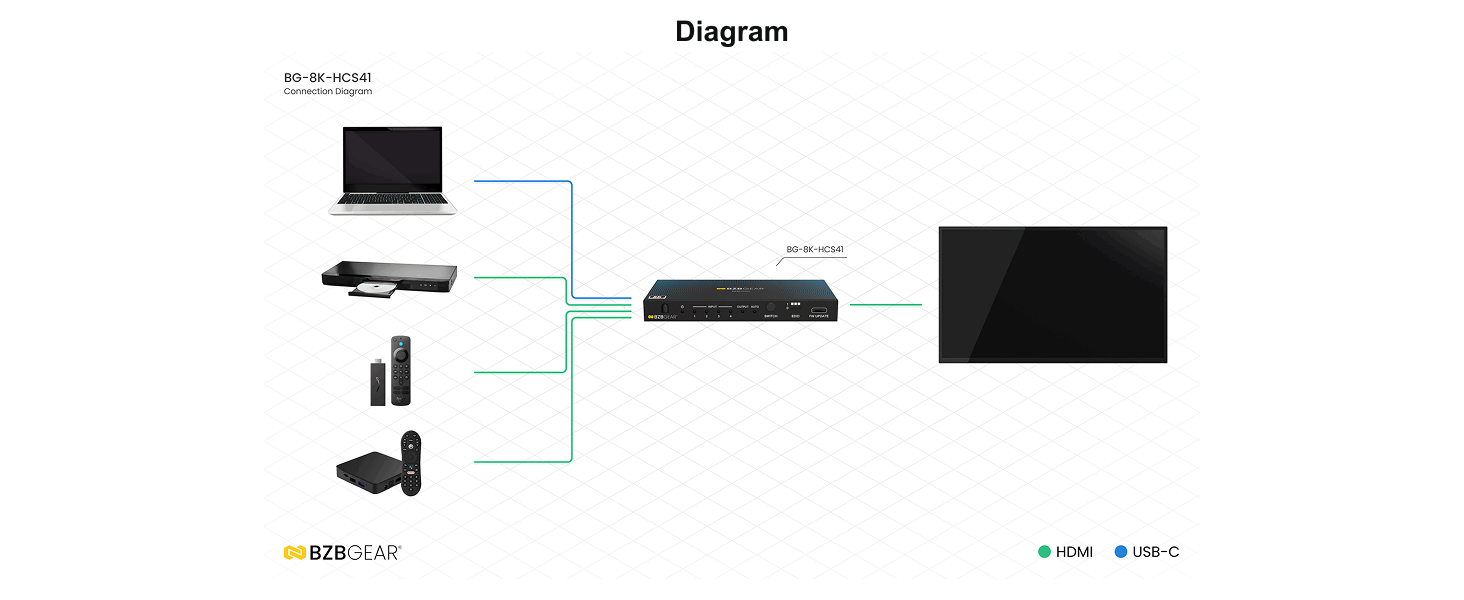

- Flexible Input & Output Configuration: Features 3x HDMI inputs and 1x USB-C input, routed to a single HDMI output
- Advanced EDID Management: Includes customizable EDID settings for flexible compatibility with various displays and sources
- Industry Compliance: Compliant with DisplayPort 1.4 and HDCP 2.3 standards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

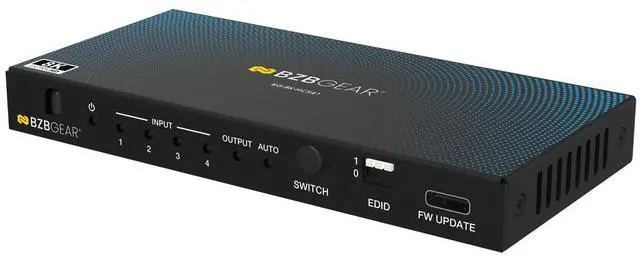

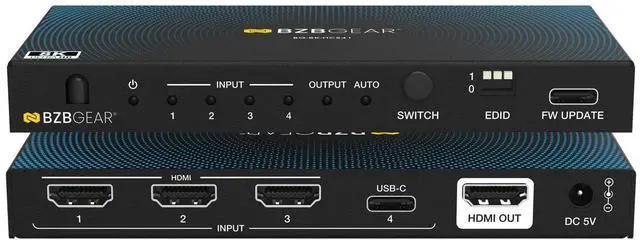

The BG-8K-HCS41 is an ultra-thin 4x1 switcher designed for high-performance AV applications. It features three HDMI 2.1 inputs, one USB-C input, and one HDMI output, supporting resolutions up to 8K@60Hz 4:2:0 12-bit (HDMI) and 8K@30Hz 4:2:2 10-bit (USB-C). This switcher is fully compliant with DP 1.4 and HDCP 2.3, and supports advanced video technologies including HDR10, HDR10+, Dolby Vision, and HLG pass-through. With support for HDMI 2.1 features such as VRR, ALLM, QMS, QFT, and SBTM, along with multichannel audio pass-through for Dolby Atmos, DTS:X, and LPCM 7.1CH, it delivers an immersive audio-visual experience.

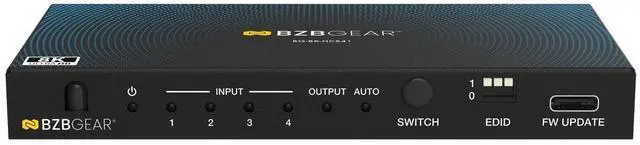

The BG-8K-HCS41 offers easy control via front-panel buttons, IR remote, and supports both manual and auto-switching between active inputs. Built-in EDID management can be configured using a 3-pin DIP switch on the front panel, with EDID status displayed on the connected monitor. Additional features include CEC control for simplified TV-to-source communication and firmware updates through the service port, making this switcher a versatile solution for home theater, gaming, and professional AV installations.
