4x1 4K UHD HDMI Seamless Switcher/Scaler/MultiViewer
4K Resolution | Seamless & Flexible Switching | Multiview Modes | Audio De-Embedding
The BG-MV41A-G2 is a high-performance 4x1 HDMI quad multi-viewer designed to display up to four HDMI sources on a single screen with seamless switching and flexible layouts. Supporting resolutions up to 4K@30Hz with 10.2Gbps bandwidth, it complies with HDMI 1.4b and HDCP 1.4 standards. Users can select from eight versatile viewing modes, including single view, picture-in-picture (PIP), picture-by-picture (PBP), triple-view, and quad-view - making it ideal for monitoring, control rooms, and content presentations.
Audio can be independently selected and output through the analog port with support for LPCM, Dolby Digital, Dolby Digital Plus, and DTS. Featuring auto/manual input switching, smooth transitions between views, and an on-screen display (OSD), the BG-MV41A-G2 offers both performance and control flexibility.
4K Resolution
Handles input and output resolutions up to 4K@30Hz
Seamless & Flexible Switching
Smooth transitions with both automatic and manual input selection in single-view or multi-view modes
Multiview Modes
Offers 8 layouts including SINGLE, PIP, PBP (1/2), Triple (1/2), and Quad (1/2)
Audio De-Embedding
Outputs audio via analog stereo connection
Independent Audio Routing
Select audio sources separately from video
Control Options
Operate via front panel buttons, IR remote, or RS-232 commands
Compact Design
Compact, space-saving design for flexible integration
On-Screen Display (OSD)
On-screen display (OSD) for multi-view layouts
High Bandwidth
Supports up to 10.2Gbps video bandwidth
HDMI & HDCP Compliance
Fully compliant with HDMI 1.4b and HDCP 1.4 standards
Advanced EDID Management
Ensures compatibility with connected devices
Audio Format Support
Works with LPCM, Dolby Digital (DD), Dolby Digital Plus (DD+), and DTS
Connection Diagram
Connect up to four HDMI source devices to the BG-MV41A-G2 inputs and send the combined HDMI output to a single display.

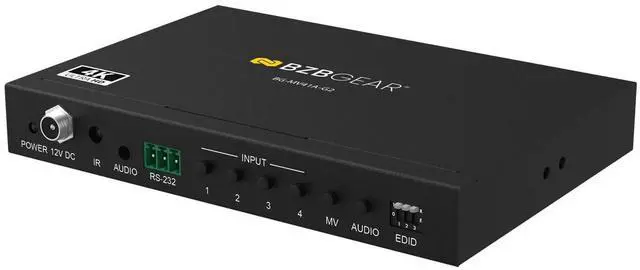

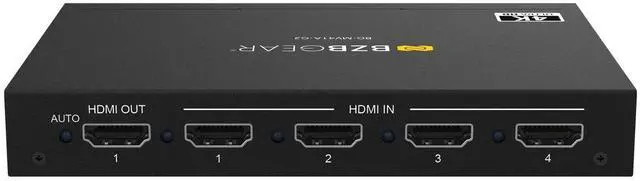

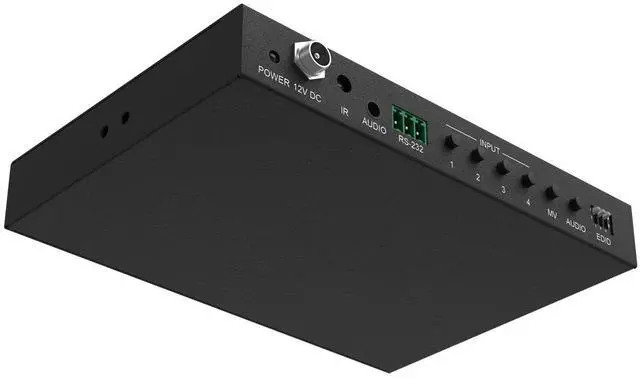

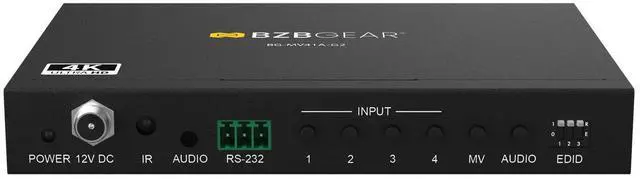

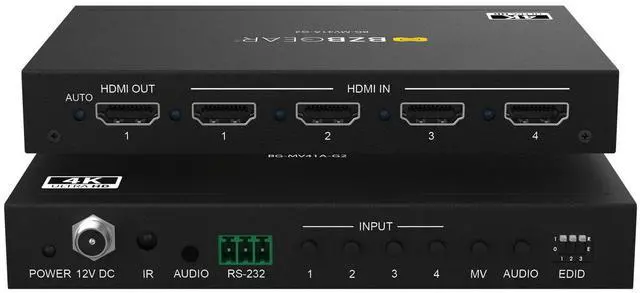

Front and Rear Panels
1. POWER LED - When the device is powered on, the power LED is blue
2. 12V/DC - 12V/DC power input port
3. IR - IR signal receiving window
4. L/R OUT - PCM 2.0 analog audio output port
5. RS232 - Connects to a PC or control system for serial update and command control
6. IN 1/2/3/4 Switch Button - Single-view mode: Press IN 1/2/3/4 to switch to the corresponding input channel
7. MV Button - Press to cycle through the 8 display modes
8. AUDIO Button - In multi-view mode, press to cycle through the audio of the four input sources
9. EDID DIP Switch - Used for EDID setting
10. AUTO LED - When auto switching mode is enabled, the blue LED will be on
11. OUTPUT - HDMI signal output port
12. INPUT - HDMI signal input ports; connect to source devices such as DVD or PS5 via HDMI
13. INPUT LED - Single-view mode: Blue LED is on when the corresponding IN 1/2/3/4 is selected
| Signal Inputs/Output | 3840x2160@30 MAX |
|---|---|
| HDMI Input/Output Connector | Type A 19 pin |
| Operating Frequency | 50/60Hz |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 10.2Gbps |
| Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 2160p@30Hz |
| Input Resolution | 720p, 1080p, 1200p, 2160p |
| Output Resolution | 720p, 1080p, 1200p, 2160p |
| Dimensions (W x D x H) | 5.8in x 4.1in x 0.85in / 148.5mm x 103mm x 21.5mm |
| Weight | 0.75 lbs [342g] |
| Chassis Material | Metal |
| Color | Black |
| Operating Temperature | 32 F to 158 F / 0 C to +70 C |
| Operating Humidity | 10% to 85% RH (no condensation) |
| Storage Temperature | 14 F to 176 F / -10 C to +80 C |
| Storage Humidity | 5% to 90% RH (no condensation) |
| External Power Supply | 12V DC @ 2A |
| Power Consumption (max) | 10 W |
| Regulatory Approvals (Main Unit) | FCC, CE |
| Regulatory Approvals (Power Supply) | UL, CE, FCC, REACH, RoHS |
| Package Contents | 1x BG-MV41A-G2 Multiviewer; 1x 12V/DC, 2A Power Supply; 1x User Manual; 1x Remote control |
