4K @60Hz 4x2 HDMI Matrix Switch, 4K HDMI 2.0b Matrix Switcher 4 in 2 Out, 4K HDMI Switcher Splitter + Optical and L/R Audio Output, Scaler EDID with Remote, HDCP2.2, HDR 10

HDMI Matrix Switch 4 in 2 out 4K @60hz

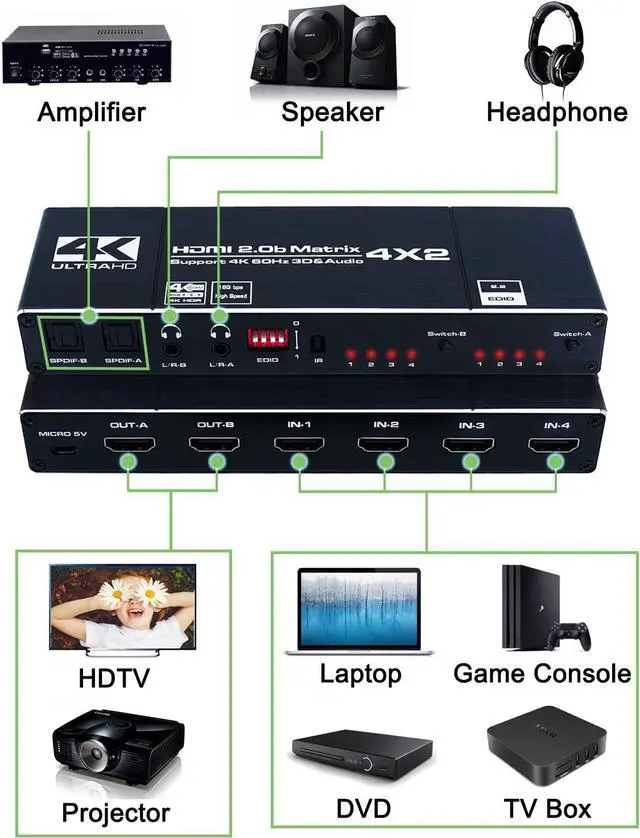

The HDMI Matrix Switch 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. It allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo headphone.

Features:

Two Ways Easy Switch
Manual switch: Press the switch button on the box and select the exact input you want.
IR Remote Switch: Aim your remote switch at the IR receiver box and easily select the HDMI input that you want for your HDTV.

Visual enjoyment
Supports 3D effects, 4K@60Hz HD resolution, and 2K@144Hz refresh rate, which makes the picture more coherent, smooth and natural, reduces picture delay problems, and brings the best viewing experience.

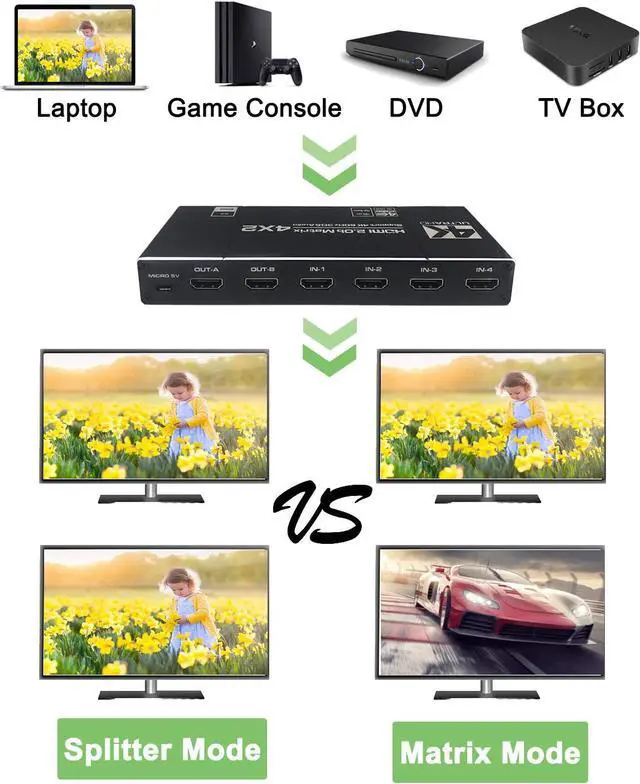

Multifunctional use
It is a matrix and also a splitter. You can connect multiple input devices and multiple output devices to use as a 4x2 matrix. It is also possible to connect one input device and two output devices to use as a splitter.

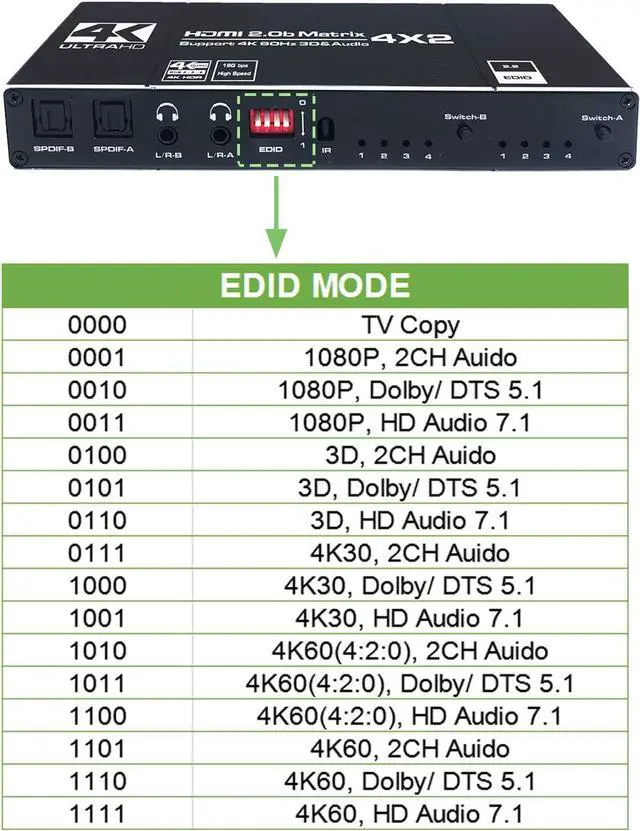

Printed the EDID setting ways on the backside
Friendly design, you don't need read user manual, just see the product's backside to set the EDID according to your demand.

Specification:
- Support HDMI 2.0 b, HDCP 2.2
- Support 3D video format
- Support highest resolution up to 4K@60Hz
- Support deep color 8/10/12/24/32/48bit
- Support 18.5G bps data rate and tmds clock Up to 600Mhz
- Support HDMI audio outputs, 3.5 mm earphone jack and optical output at same time
- Support audio format: LPCM/ Dolby-AC3/ DTS audio
- Input cable distance: =10m AWG26 HDMI 2.0 standard cable
- Output cable distance: =15m AWG26 HDMI 2.0 standard cable

Package included:
1x HDMI Matrix 4X2
1x 5V Power Adapter
1x Remote Control
1x User Manual
