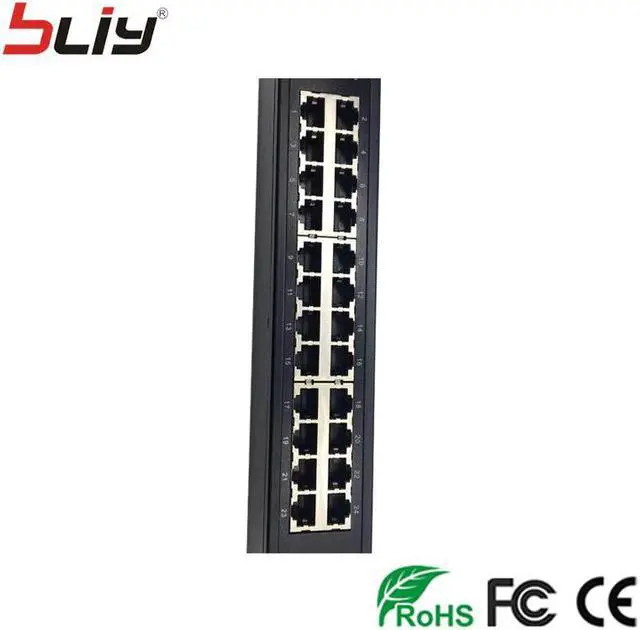

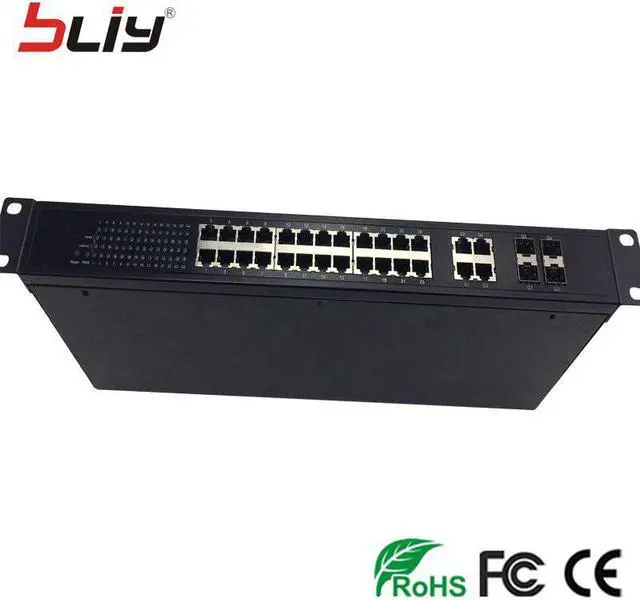

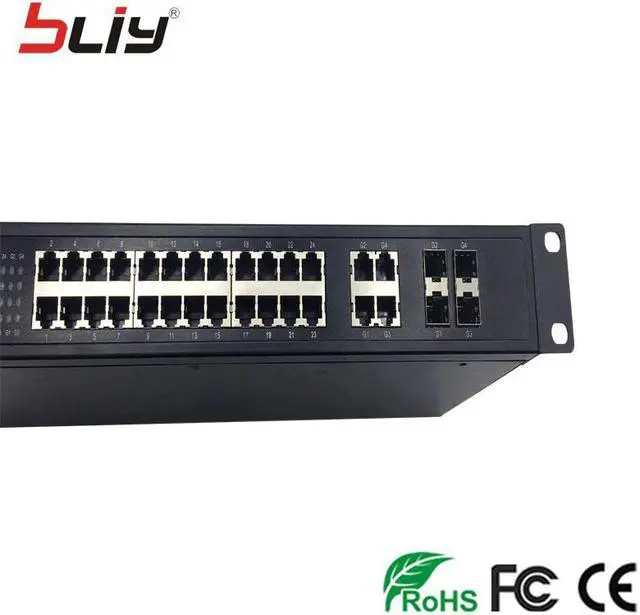

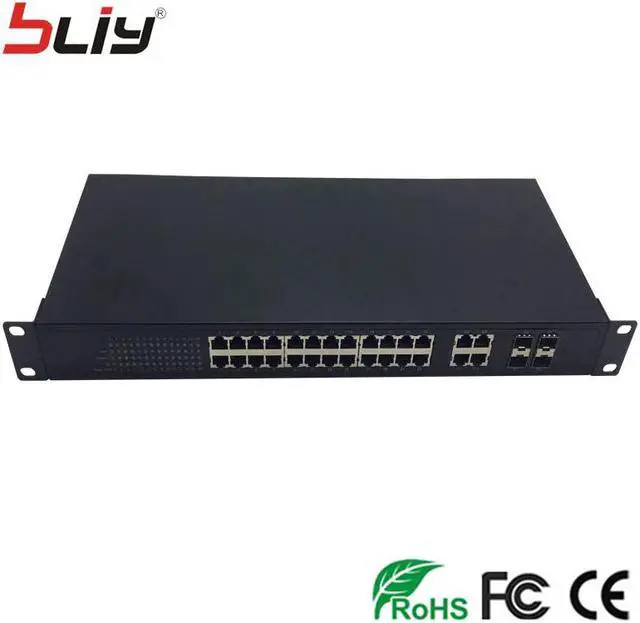

L3 sfp snmp network optical switch 24 rj45 4 combo switch layer 3 sfp media converter with RSTP/web management/SNMP/VLAN

L3 sfp snmp network optical switches 24 rj45 4 combo switch layer 3 sfp media converter with RSTP/ web management/SNMP/VLAN

Main Features:

Support the switch between 10/100Base-TX, 10/100/1000Base-T and 1000Base-SX/LX

4 combo ports (can be used as 1.25Gbps fiber port s or 10/100/1000M Ethernet port)and 24

100M Ethernet ports with auto-negotiation function

The Fiber port is SFP slot and Gigabit SFP optical module is freely configured as request.

Support MDI/MDIX and half/full-duplex with auto-negotiation function

Each port has the complete LED Indicator light

Store and forward switching mechanism and all ports support wire-speed forwarding

Support IEEE802.1d Spanning Tree

Support high performance QoS function on each port

4Mbit large data cache space

Internal 16K MAC Address Entities

Support 16K bytes Jumbo packet

Support IEEE 802.3x flow control and back pressure control

Require no configuration and will instantly operate as soon as you power it up

Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

IEEE802.1q VLAN

Ethernet Port

Connector: RJ45

Data Rate: 10/100/1000M

Distance: 100m

UTP Type: UTP-5E or higher level

Fiber Port

Connector: SFP slot

Data Rate: 1.25Gbps

Optical Wavelength: 850nm/1310nm/1490nm/1550nm

Distance: 550m120km

Performance

Processing Type: Store and Forward
