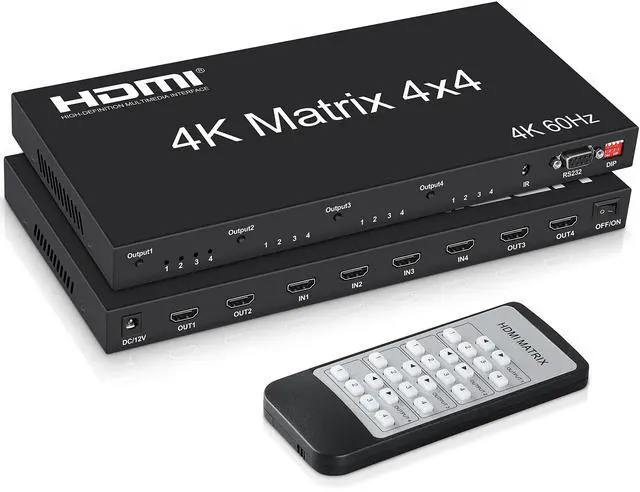

BUCIER 4K@60Hz HDMI Matrix Switch 4x4, HDMI Matrix Switcher Splitter 4 in 4 Out with EDID, HDMI Matrix Selector box with RS232 Control, Support Auto Downscaler, HDR, HDMI2.0, HDCP2.2, 18Gbps

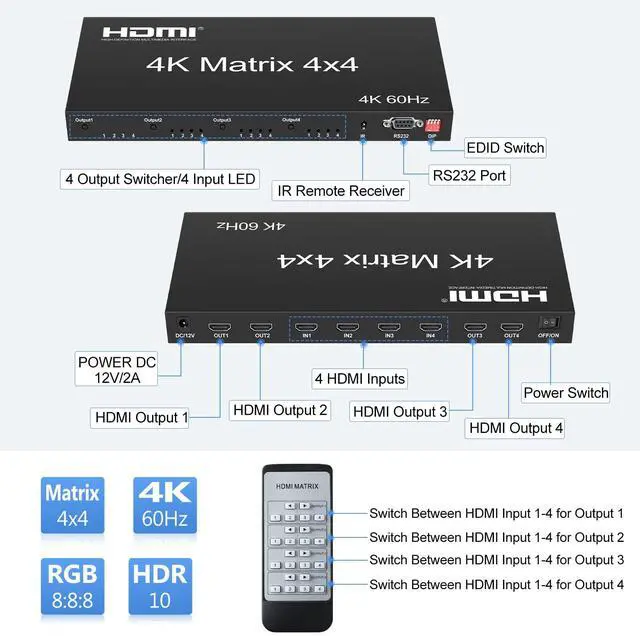

4x4 HDMI Matrix Switcher with RS232 control

This HDMI matrix 4x4 switcher can connect 4 HD signal sources to 4 HD displays, which allows 4 HDMI devices to be switched or split easily to 4 HDMI compatible monitors or projectors.

--Specifications--

Support HDMI 2.0, HDCP 2.2

Support highest resolution up to 4K@60Hz

Support video format: 8/10/12 bit deep color

Support audio format: DTS-HD, Doby-true HD, LPCM7.1, DTS, Doby-AC3, DSD

Support max baud rate up to 18Gbps

Support auto video scaling/downscale function

4 HDMI inputs switch and split to 4 HDMI displays

--Connecting and Operating--

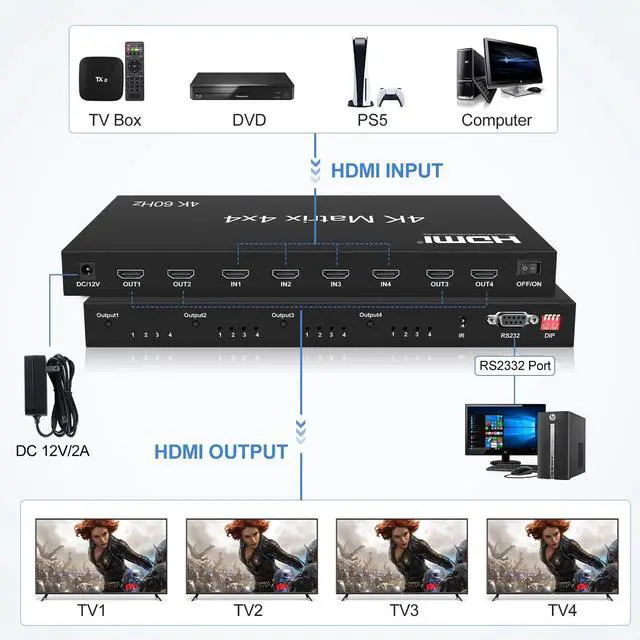

1.Connect each HDMI source devices and input of HDMI Matrix with HDMI cable.

2.Connect display devices and output of HDMI Matrix with HDMI cable.

3.Use IR remote control to switch the signal source freely.

4.Connect 12V power supply to the HDMI 4x4 Matrix.

5.How to use RS-232 port?

Through RS 232 port you can update software and monitor the state of the input and output signals. And can switch signals. When connects the computer, customer can easily switch the signals via computer.

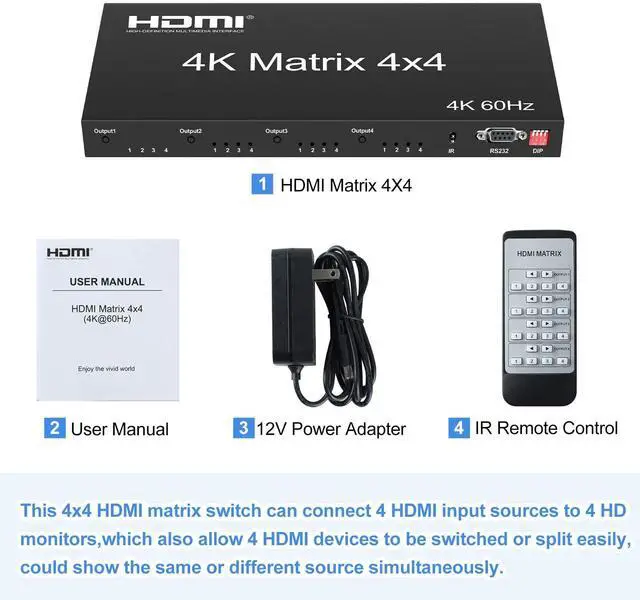

--Package Contents--

1 x 4K@60Hz HDMI Matrix Switcher

1 x 12V Power Adaptor

1 x IR Remote Control

1 x User Manual

Additional Features

• [Auto Video Scaling/Downscale Function]This HDMI Matrix 4x4 with the downscale function, this HDMI matrix switcher splitter 4 in 4 out selector box can support mixed 4k & 1080p display outputs, means a 4K video source device can simultaneously display 4k video to 4K monitors and 1080p video to 1080p monitors. NOTE: Only supports mixed 4K@60Hz & 1080p@60Hz display outputs.
• [RS232 & Remote Control] This 4 in 4 out HDMI switch box comes with a built-in IR remote, you can easily switch HDMI input sources and output displays by IR remote control or the switch button of this 4X4 HDMI matrix. Also support RS-232 advanced remote-control. Can compatible with most devices with the standard HDMI interface. Input: Xbox, PS3 / PS5, Fire Stick, Blu-Ray, Roku, PC etc. Output: HD TVs, Monitors, Projectors etc.
• [Package Included]1 x 4K@60Hz HDMI Matrix Switcher, 1 x 12V Power Adapter, 1 x IR Remote Control, 1 x User Manual. This 4 ports HDMI matrix switch selector box has the quick heat absorption and dissipation, which can minimize EMI/RFI noise interference, make more durable. It is an ideal choice for retail bar, office, backyard, conference room, education and training.
