BUCIER 4x2 HDMI Matrix Switch, 4 in 2 Out Matrix HDMI Video Switcher Splitter +Optical & L/R Audio Output,Support Ultra HD 4K, 3D 1080P, Audio EDID Extractor with IR Remote Control
- [4 IN 2 OUT Matrix]This HDMI Matrix can connect up to 4 HD Source to 2 HDMI Display terminals with optical fiber or stereo headphone output,it allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.Ideal solution for home theater, office, school, conference room, shopping mall, hotel or museum
- [High Resolution]Supports a multitude of video resolutions, including 4K x 2K, 1080P, Ultra HD, 3D, HD audio and etc. Supports 8/10/12 bit deep color. Support HDMI 1.4b and HDCP1.4,Support 3.4Gbps x3 data rate and tmds clock up to 340Mhz
- [Audio Split&EDID]Supports LPCM/Dobly/DTS 5.1 channel and smart EDID management. Any input HD source can do audio extract by the SPDIF or 3.5mm headphone audio output port separately or at the same time.Built-in IR sensor comes with a handy, intuitive remote control that makes switching inputs,it can do also switch by press button. Note: AAA battery neededand pls confirm your audio format is correct
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

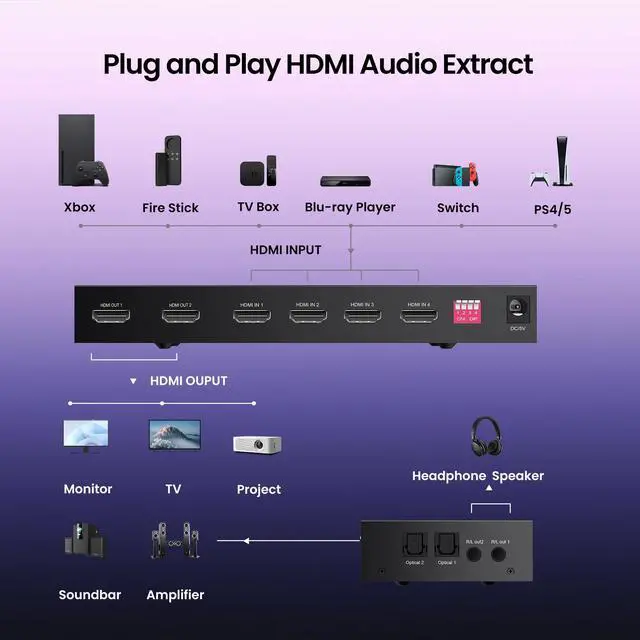

The HDMI Matrix Switch 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. It allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo headphone.
Features :
Support HDMI 1.4b/HDCP1.4
Support 3D video format
Support highest resolution up to 3840*2160/30Hz
Support 3.4Gbps x 3 data rate and tmds clock up to 340Mhz
Support deep color 8/10/12 bit
Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
Support LPCM/Dobly/DTS 5.1 channel
Supports EDID control via EDID Selector.
Specification:
HDMI version:HDMI 1.4b
HDMI resolution:up to 4Kx2K,3840*2160/30Hz
Support video format:8/10/12 bit deep color
Support audio format:LPCM/DTS/Dobly-AC3
Max bandwidth:340MHz
Max baud rate:3.4Gbps x 3
Input cable distance: 10m AWG26 HDMI 1.4 standard cable
Output cable distance:15m AWG26 HDMI 1.4 standard cable
Package :
1x4K HDMI Matrix 4X2
1xIR Remote Control
1x5V power adapter
1xUser Manual
Instruction of Buttons&LED:
LED: In1-In 4 LED indicator is the corresponding input sources for OUT 1 or OUT 2
Buttons:Key 1 or Key 2 is used to switch the corresponding input source for OUT 1 or OUT 2
Note: Press Key 1 or Key 2 for around 5 seconds,it can switch audio channel between 5.1 and 2.1
Additional Features
- [Premium Quality]This 4x2 HDMI Matrix contains in-built automatic equalization and amplification to ensure optimum transmission without loss in video/audio quality.It is embedded with ESD protectionand has been passed thousands of hours of tests under different and sophisticated applications which include security systems, outdoor advertising screens, broadcasting stations, and public theaters etc
- [What will you get?]1* 4K HDMI Matrix 4 in 2 out, 1*Remote Control, 1*Power adapter, 1*User manual.
