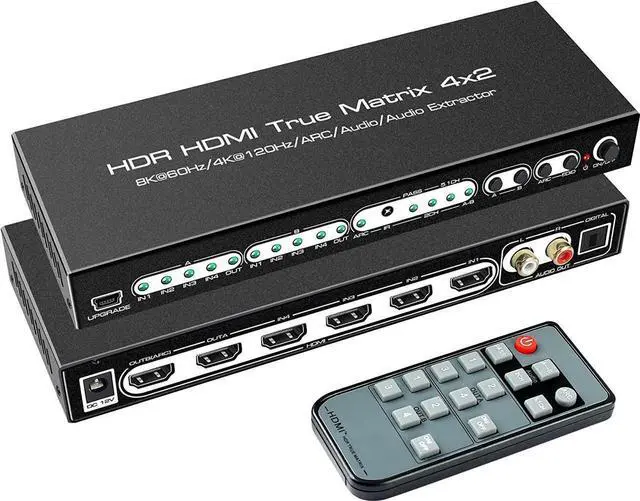

HDMI Matrix 4 in 2 out 8k 60hz HDR Dolby Vision
- 4K HDMI Matrix 4x2 distributes four HDMI sources to two HDMI displays reliably, supports HDMI2.1 8K60Hz 4:4:4 8bit 18Gbps, HDR 10, HDR Dolby Vision, firmware upgrade via micro-USB port.

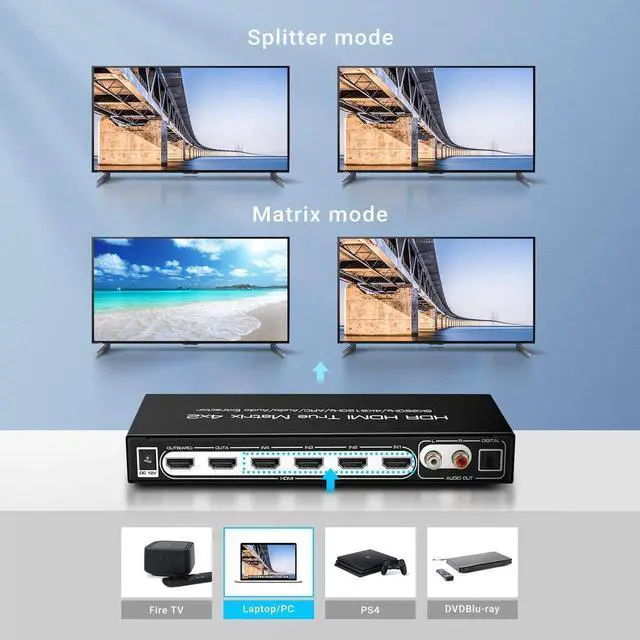

- Connect 8K TV to OUTB.OUTA outputs 8K@60 or 4K@120 resolution only in split mode(In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30 or 4K@60in other modes.
- The Audio EDID mode selection is also available for multiplexed.When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B.Analog audio can only be output when the audio format is LPCM,so it is recommended to choose the EDID mode in 2CH mode when using analog audio output.

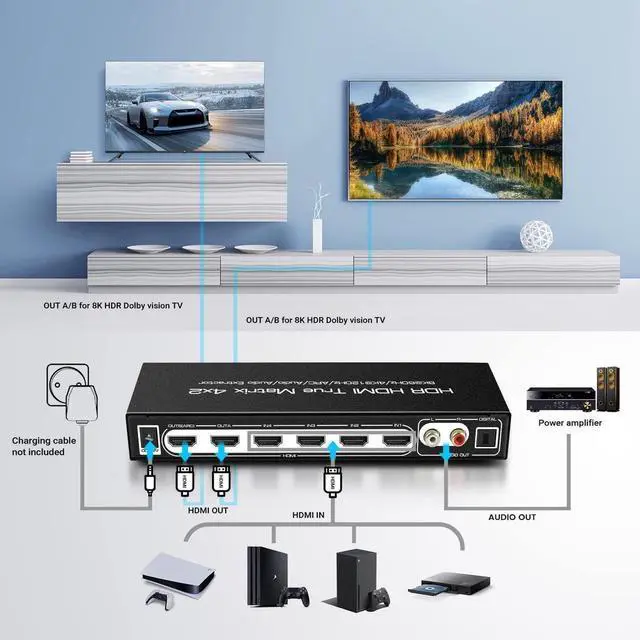

- Connect the TV to the OUT A port.Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
Analog& digital audio output
Extract audio from HDMI outputs and output to optical audio and L/R audio. HDMI Matrix Switch 4x2 Supports LPCM / Dolby / DTS 5.1 audio. Dolby Atoms HDR 10 Dolby Vision.
ARC function& EDID
Supports ARC. Return TV's audio to optical audio port where the TV's HDMI ports is ARC enabled. Supports audio independent EDID: choices for 5.1ch, 2.1ch and pass.
Remote control& manual switch
This HDMI matrix 4 in 2 out can be switched using buttons. The 4K matrix switch splitter is also equipped with an infrared remote control, which makes switching videos more intuitive and convenient.
8K60Hz& 4K120Hz High Resolution
- Supports a multitude of video resolutions, including 480P/720P/1080P/2160P @24/25/30/50/60/ 100/120Hz;Up to 4320P@50/60Hz
- Support HDR10/Dolby Vision Support HDMI 2.1 and HDCP2.3,Support 40Gbps data rate and tmds clock up to 1Ghz

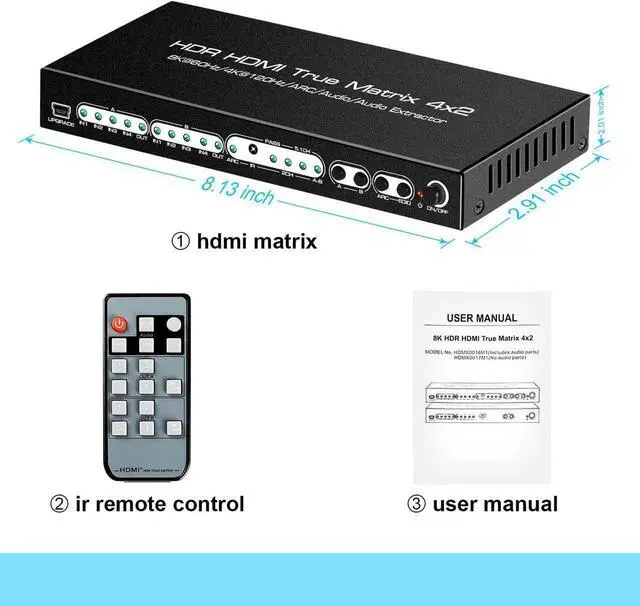

Package Contents:
- 4 x 2 HDMI Matrix X1
- Remote Control x1
- User Manual x1
- Power Adapter x1
8K 60HZ HDMI MATRIX 4X2
| HDMI version | HDMI 2.1 |
|---|---|
| Input ports | HDMI female x4 |
| Output ports | HDMI female X2 ,RCA X2, Optical X1 |
| HDMI Video | HDMI 2.1,HDCP 2.3,8K 60Hz 4:4:4 8bit 48Gbps HDR Dolby Vision, 4K 60Hz 4:4:4 10bit HDR10,HDR Dolby Vi |
| HDMI Audio | Dolby Digital 5.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master,LPCM 2.1CH,5.1CH |
| Suggest HDMI cable length | HDMI 2.1 standard cable, 4320P/AWG 26 < = 3m, 2160P/AWG 26 < = 5m, 1080P/AWG 26 <= 10m |
| Compatible systems | Windows, Mac OS, and Linux. Drive-free. |
