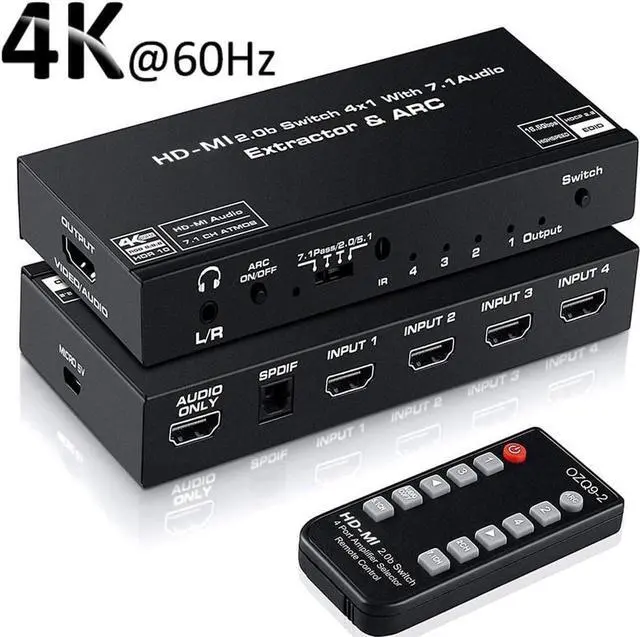

HDMI 2.0 Switch Audio Extractor 4K HD-MI SPDIF Converter 5.1 HD-MI to HD-MI to RCA Splitter Optic TOSLINK Switch Adapter
4 IN 1 OUT HDMI AUDIO SWITCH: HDMI switch 4-port distributes up to four HDMI input source to one HD Display, solving your multiple HDMI devices issue. Simultaneously, Via HDMI (7.1CH audio)/optical/3.5mm port add external speakers, amplifiers, sound bar, receiver to your film/game system with ease. (Not 1 In 4 Out HDMI Splitter)
HDMI 7.1CH ATMOS/OPTICAL 5.1CH/3.5MM 2.0CH AUDIO EXTRACTOR: Extracts audio from the HDMI signal to HDMI 7.1 Atmos audio, 3.5mm Stereo audio, and Optical Toslink SPDIF Audio. Support audio format: D-o-l-b-y Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
4K@60HZ HDMI2.0B SWITCH: HDMI Switch 4 in 1 out use the latest chips, support 4K@60Hz, HDR 10, HDCP2.2, RGB 8:8:8, and Dobly 7.1 Atoms/Plus D audio. Deep Color to 36bit, Max Bandwidth of 18.5Gbps/600MHZ. The display more clear and more delicate, give you a visual feast and an excellent gaming experience.

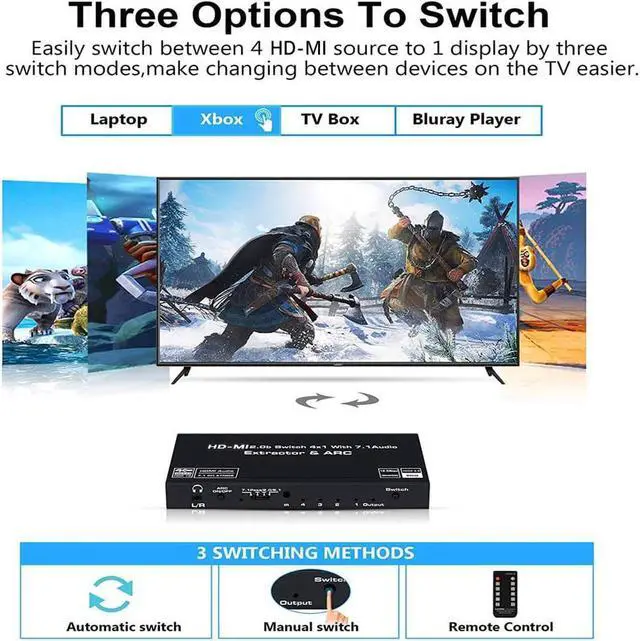

HDMI AUTO-SWITCH WITH REMOTE CONTROL: HDMI selector switch will automatically skip to the next port with a viable signal source;It will automatically skip to the most recently inserted HDMI signal source,it is not an automatic switch. The only time it changes "automatically" is when you physically remove cables (Tips:It will not allows auto-switch to the PS4/xbox due to current protection principle)
FOUR AUDIO MODE SWITCH SETTINGS: (Pass, 2CH ,5.1CH and 7.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, 5.1 digital surround, Dobly TrueHD, DTS-HD. HDMI 7.1 Audio output support incoming 2CH PCM LPCM 5.1CH, Dobly 7.1CH ATMOS (Note: This HDMI audio switch can't decode only pass through the audio formats.)

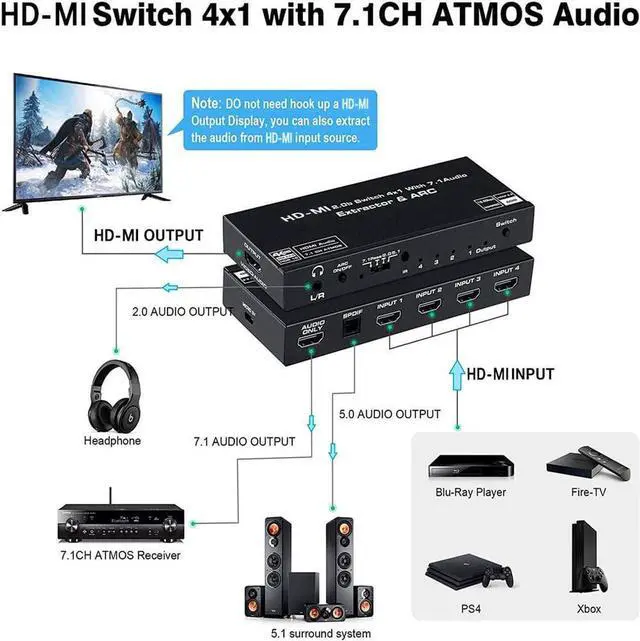

HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
- Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
- HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
- HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
- Optical Audio Out: Dobly Digital / DTS Digitial 5.1CH, PCM 2.0
- 3.5mm Audio Out: PCM 2.0
To get better video and audio quality, we high recommend you use the standard hdmi2.0 AWG cable less than 5m/16ft.

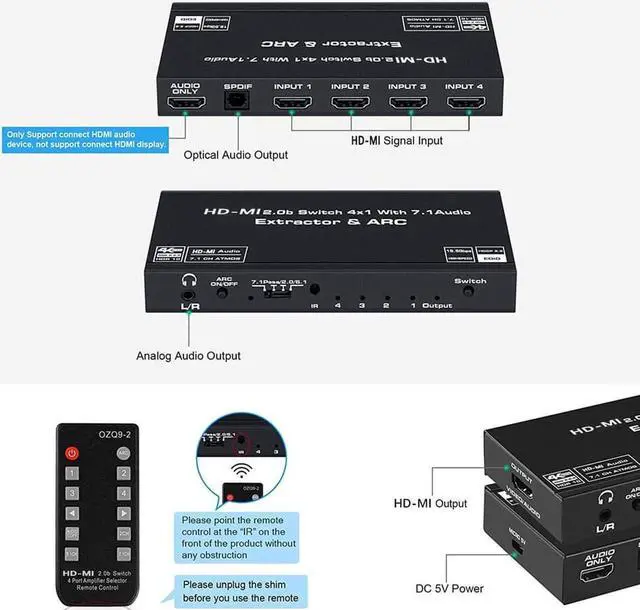

Easy switch to what you want by remote
Maxium remote control is 8 meters
1. Switch between HDMI input 1-4
2. Select HDMI input source from 1-4
3. Select Four audio modes:
· When select to "2CH" , 3.5mm audio jack/spdif optical/HDMI audio port all have audio.
· When select to "5.1CH", spdif optical/HDMI audio port have audio.(HDMI source audio must be 5.1CH)
· When select to "7.1CH", only HDMI audio port have audio.(HDMI source audio must be 7.1CH).
· When select to "Bypass", the output audio format depends on the HDMI input signal.

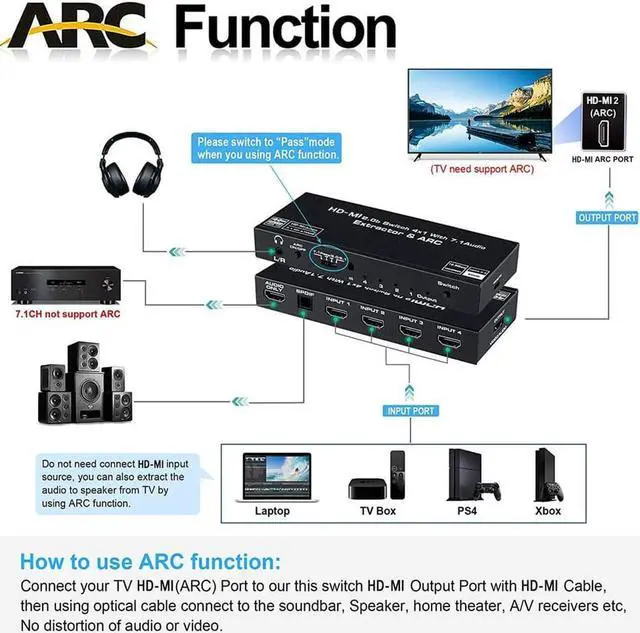

ARC: Turn on/off ARC function
Package Included
1x HDMI Switcher 4x1 4K@60Hz
1x Remote Control
1x DC 5V Power Adapter
1x User Manual
