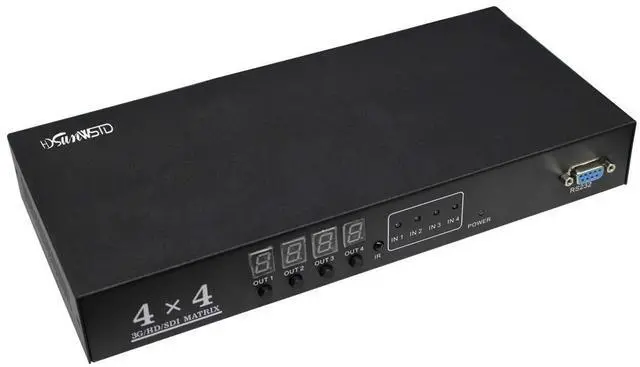

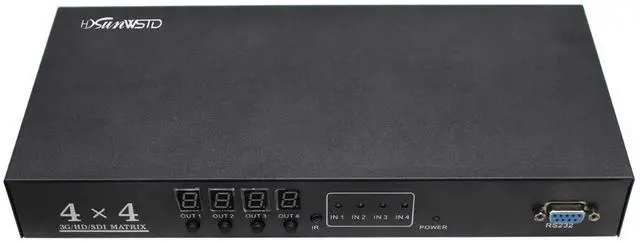

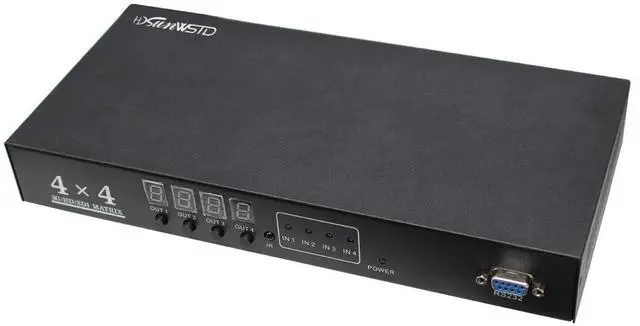

Vszerda 4x4 Sdi Matrix Switcher Supports HD-SDI, SD-SDI and 3G-SDI Signals (4 Input, 4 outputs)

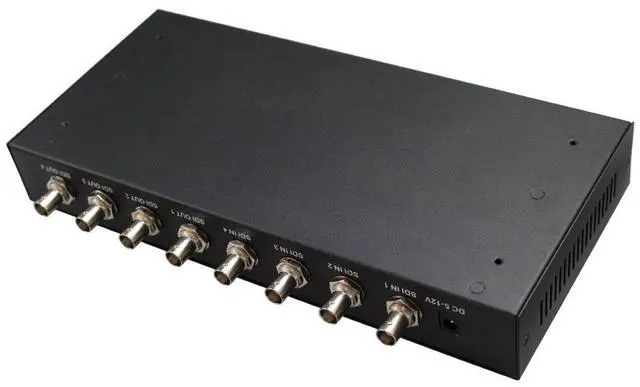

- SDI input port : BNC SDI×4
- SDI output port:BNC SDI×4
- Button:4,IR :1
- SDI standard: Compatible SMPTE 424M,SMPTE 292M and SMPTE 259M-C
- Designed for professional SMPTE video applications this HD-SDI, SD-SDI and 3G-SDI SDI 4x4 Switch allows you-Inch determine which of four connected SDI video sources will be displayed on the four SDI monitor.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction:

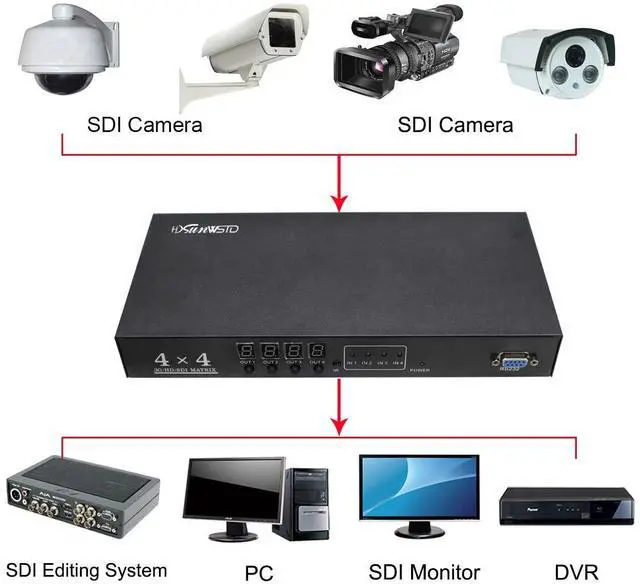

This product is a SDI 4×4 matrix,which can convert SDI signal from 4 ports to any other 4 independent output ports.It support Full-HD SDI signal input and output,and it also very easy to be use with high stability and reliability.It is widely used at all the TV station and other work place,safe security monitoring,training venue and so on.
Feature:
* SDI signal format:SD-SDI HD-SDI 3G-SDI
*SDI input resolution:480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/
* SDI output resolution:480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/
* SDI signal:output range 800mVp-p
*SDI standard Compatible :SMPTE 424M,SMPTE 292M and SMPTE 259M-C

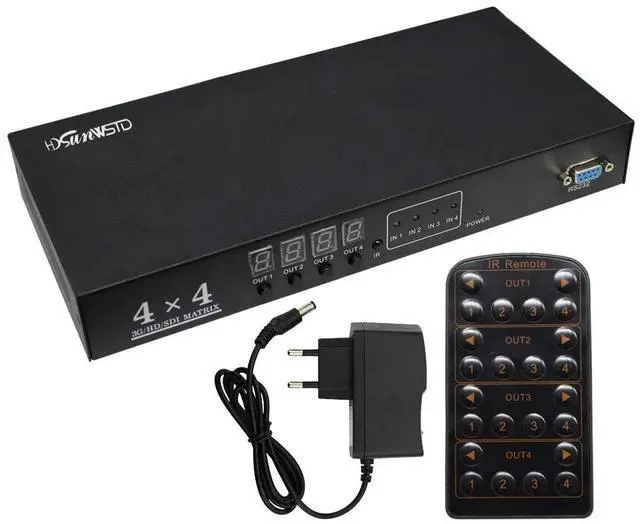

Package: 1x sdi 4x4 1X us power adapter
