4x4 HDMI splitter switch can support a resolution input of 4K( up to 3840X2160@60hz), and realize point-to-point lossless, equal-scale, non-distorted, and non-stretched display of images. Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P RGB4:4:4, YUV 4:4:4.

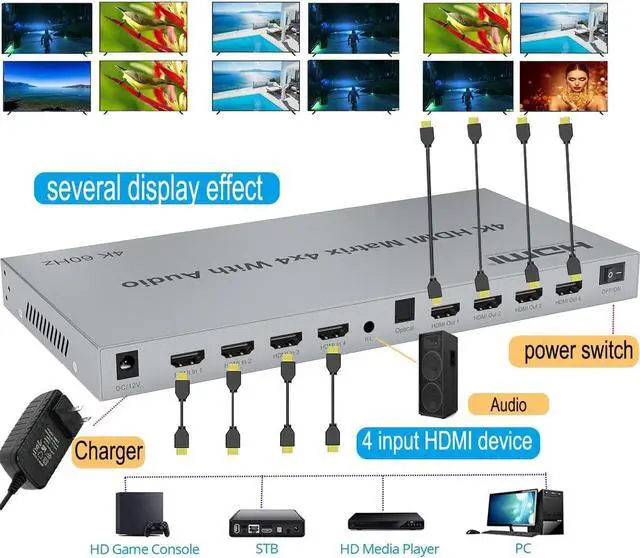

Connect ports:
Input ports: 4 HDMI (female type) Supoort Comupter, Laptop TV BOX, Game devices or with Hdmi Port Device.
Output ports: 4 HDMI (female type) Support TVS, monitor , splicer screen, billboard or other HDMI displays.
Audio output: optical firber, L/R 3.5mm,

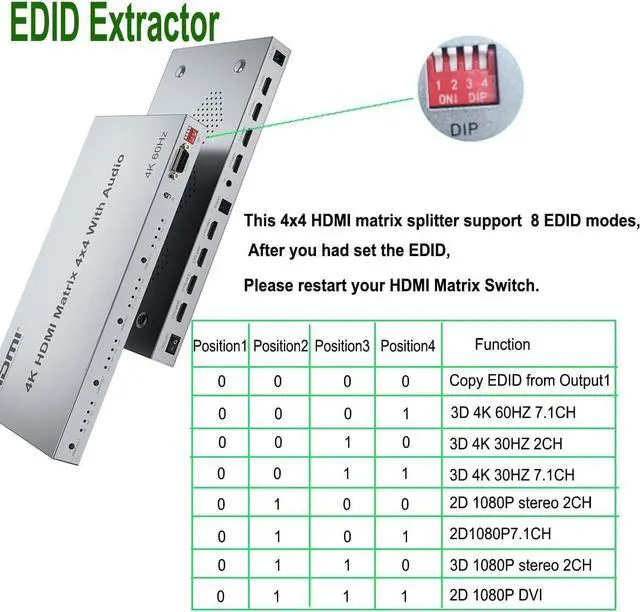

EDID Audio Extractor: EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.After you had set the EDID, Please restart your HDMI Matrix Switch.
Power switch: With power switch to turn on off the device.
Package included:
1xswitch device, 1x12V charger, 1xuser manual, 1xIR remoter
Size: 10.86 x5.6 x1suit for 1U
4 HDMI input to 4HDMI output, matrix or split, widely used in various fields to achieve personalization or places that have actual needs for ultra-large resolution, such as big data, exhibitions, displays, games and other fields.
HDMI matrix resolution: up to 3840*2160/60 Hz, RGB 4:4:4,3D, HDR, 18 GBPS, HDCP 2.2 & HDCP 1.4, realize point-to-point lossless, equal-scale, non-distorted, and non-stretched display of images. Bringing you life-like visual effects.
Full solid capacitor design smart chip, more stable, no crash, more fluid, no stuck screen, Extensive matching for more system such as WIN DOWS9X, NT, WIN2000, WINXP, WIN7, LINUX, NOVELL and other operating systems.
The HDMI splitter is plug and play, No software needed. With out audio from HDMI output 1, you can choose the input resource from the HDMI 1 output. If no connect output audio, each screen can play the audio itself from the TV.
