- Model name: 8K HDR HDMI True Matrix 4x2
- Input ports: HDMIX4
- Output ports: HDMIX2 ; RCAX2,Optical X1
- Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
- Up to 4320P@50/60Hz, Support HDR/Dolby Vision
- Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P
- Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
- Transmission bandwidth: 1200MHz Max.
- Transmission rate: 40 Gbps Max.
- IR distance: < = 5m
- Input cable length: 2160P/AWG 26 < =5m; 1080P/AWG 26 < =10m
- Output cable length: 2160P/AWG 26 < =5m; 1080P/AWG 26 < =12m
- Power adapter specification: Input: AC 100~240V Output: DC 12V/1.5A
- Max working current: 500mA
- Size: 250x75x30 (mm)
- Weight: 440g

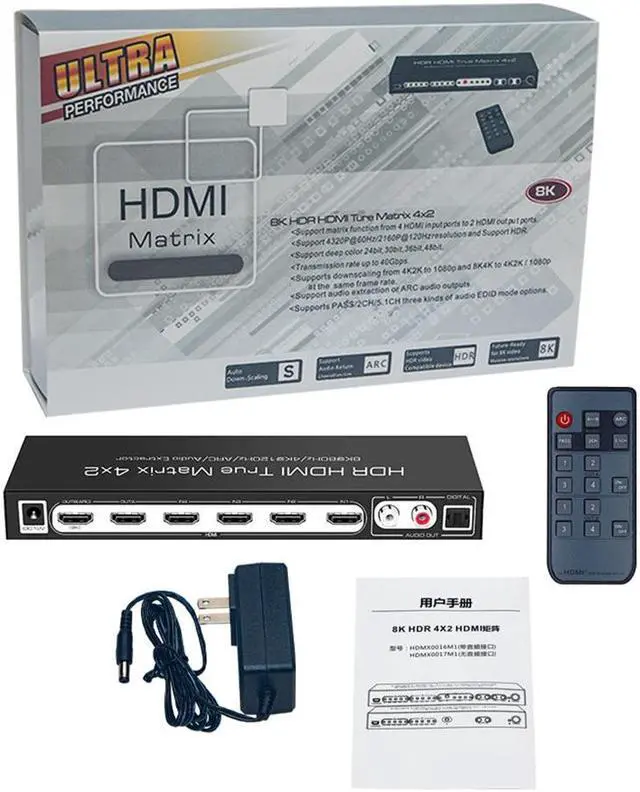

Package Content:
1x 8K 4x2 HDMI Matrix
1x Manual
1x Remote Controller without battery
1x Power Adaptor
SPECIFICATIONS:
Model name 8K HDR HDMI True Matrix 4x2
Input ports HDMI x 4
Output ports HDM x 2, RCAX2, Optical X1
Video format 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz (YCC420), Support HDR/Dolby Vision
Deep color 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1GHz Max.
Transmission rate: 40Gbps Max.
IR distance 5m
Input cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Power adapter specification AC 100~240V/ DC 12V/ 1.5A
Max working current 300mA
Working temperature range -5 ~ +40
Working humidity range 5 to 85%RH (No Condensation)
Storage temperature -15 to 55
Storage humidity 5 ~95%RH (No Condensation)
Size approx. 250x75x30 (mm)
Weight approx. 430g
Package Content:
1PCS 8K 4x2 HDMI Matrix
1PCS Manual
1PCS Remote Controller without battery
1PCS Power Adaptor
