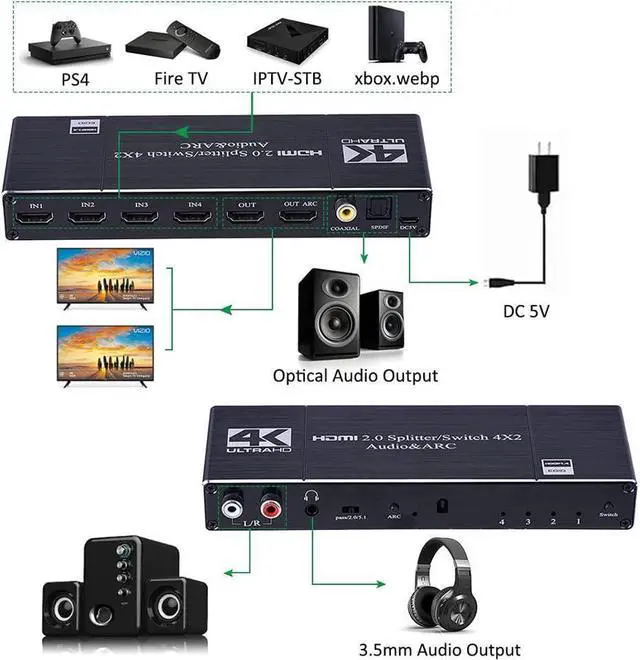

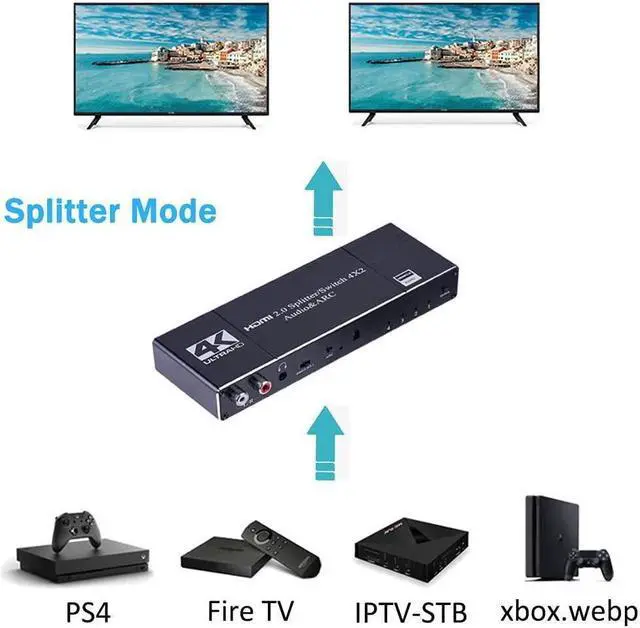

HDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please
Note: Two HDMI Output are the same Siganl. )
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0 ch audio output and SPDIF Toslink ( 2.0 ch/ 5.1 ch) audio output.

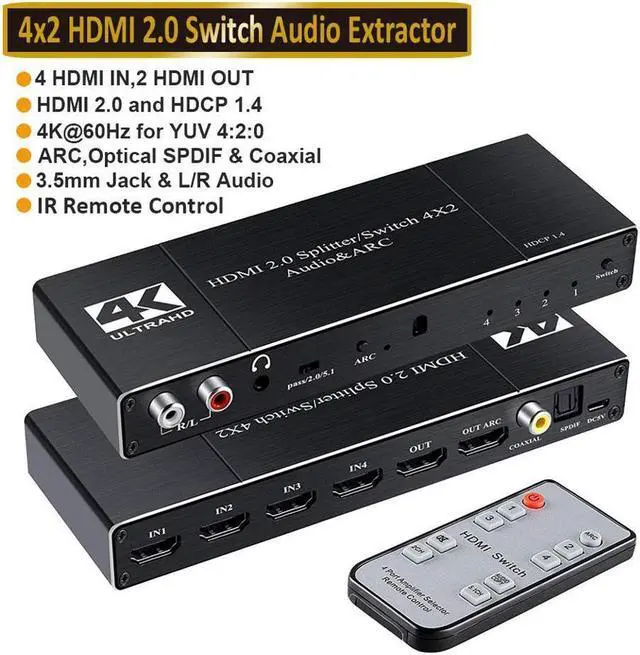

HDMI Switch 4X2 Features:
Support HDMI 2.0 /HDCP 1.4
Support highest resolution up to 3840*2160/60Hz, 3 D
Support deep color 8/10/12 bit

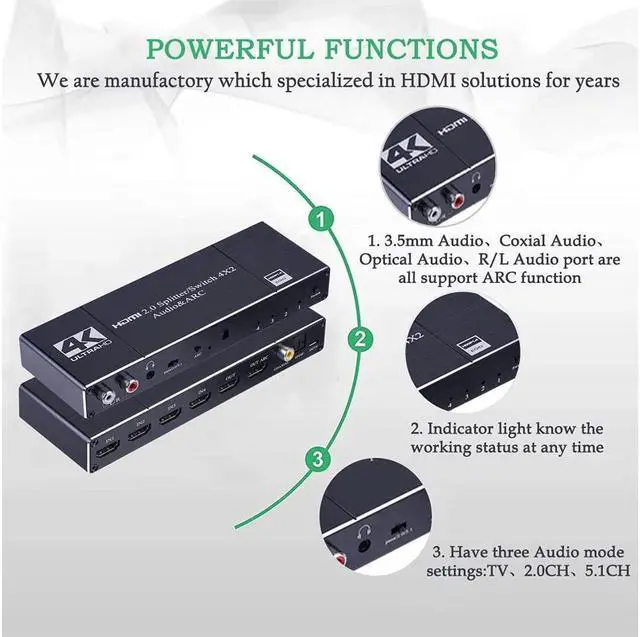

Support 4 HDMI audio outputs, 3.5 mm earphone jack and optical output, Coaxial x 1, R/L Audio output
Support video format: 8/10/12 bit deep color
Support audio format: LPCM/DTS/Dolby-AC3
Max bandwidth: 340MHz
Max baud rate: 6 Gbps

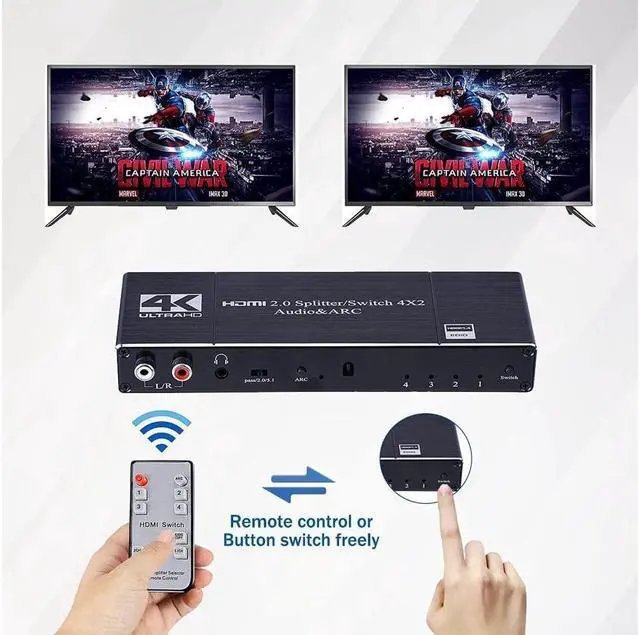

Three Switch Modes: Automatically switch when device is on; Manually switch by pressing button; Manually switch by IR remote
