8 ports smart managed administrable gigabit network lan switch 10/100/1000Mbps
- Enjoy Your Shopping
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

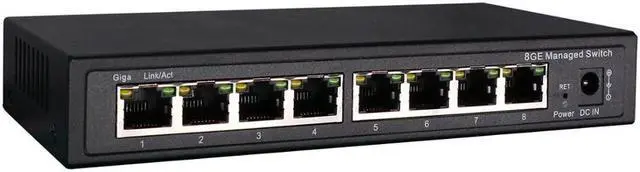

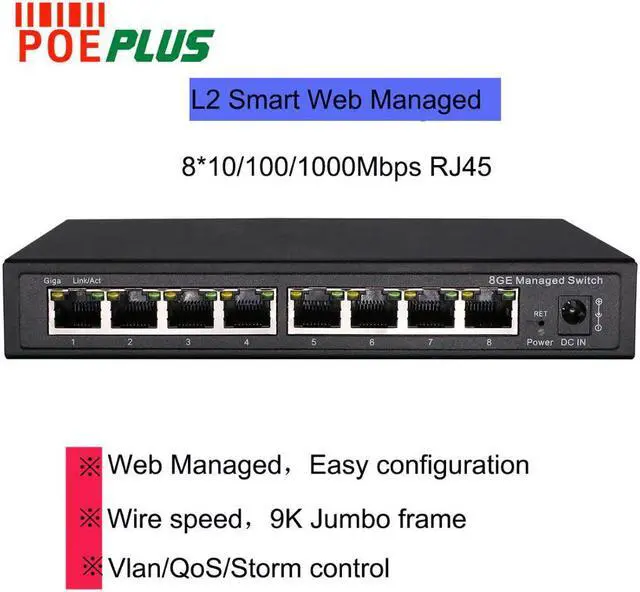

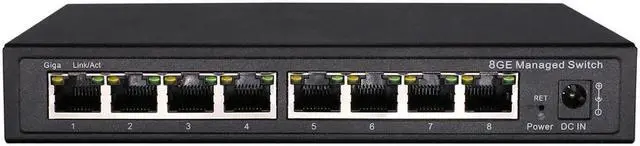

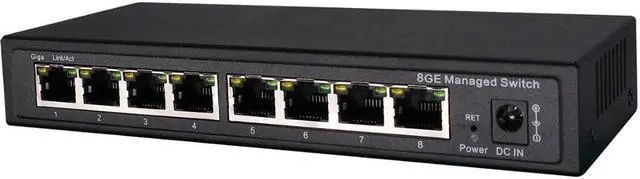

8-port 10/100/1000Mbps smart switch
Model:S0800GM
Ports
8*10/100/1000M RJ45 ports
Backplane bandwidth
20G
Switch chip
RT8332L
Packet forwarding rate
14.44MPPS
Switch cache
2.5M
Working temp.
0~45
Storage temp.
40~70
Working humidity
10%~90% No condensation
Storage humidity
5%~95% No condensation
Size
160 x 30 x 128 mm
Power adapter
DC 12V 0.5A AC input 110~220V 50/60HZ
standards
IEEE 802.3x
IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3z
IEEE 802.3ad
IEEE 802.3q IEEE 802.3q/p
IEEE 802.1wIEEE 802.1d EEE 802.1S
MAC Address
8K MAC addresses MAC address learning and aging
VLAN
4k VLANSPort-based VLANs802.1Q VLAN
Link Aggregation
Support
Port Mirror
Supports two-way port mirroring
Loop Guard
Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery
isolation
Support downlink ports isolated from each other and communicate with upstream port
Port flow control
Half duplex based back pressure control
Full duplex based on PAUSE frames
Line rate
Support port based input / output bandwidth management
IGMP
Support
Storm suppression
Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering
Security
User port+IP address+MAC
ACL based on IP and MAC
Security properties of port based MAC address quantities
QOS
Port
Model:S0800GM
Ports
8*10/100/1000M RJ45 ports
Backplane bandwidth
20G
Switch chip
RT8332L
Packet forwarding rate
14.44MPPS
Switch cache
2.5M
Working temp.
0~45
Storage temp.
40~70
Working humidity
10%~90% No condensation
Storage humidity
5%~95% No condensation
Size
160 x 30 x 128 mm
Power adapter
DC 12V 0.5A AC input 110~220V 50/60HZ
standards
IEEE 802.3x
IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3z
IEEE 802.3ad
IEEE 802.3q IEEE 802.3q/p
IEEE 802.1wIEEE 802.1d EEE 802.1S
MAC Address
8K MAC addresses MAC address learning and aging
VLAN
4k VLANSPort-based VLANs802.1Q VLAN
Link Aggregation
Support
Port Mirror
Supports two-way port mirroring
Loop Guard
Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery
isolation
Support downlink ports isolated from each other and communicate with upstream port
Port flow control
Half duplex based back pressure control
Full duplex based on PAUSE frames
Line rate
Support port based input / output bandwidth management
IGMP
Support
Storm suppression
Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering
Security
User port+IP address+MAC
ACL based on IP and MAC
Security properties of port based MAC address quantities
QOS
Port
