48V POE Network Switch 10/100/1000Mbps Ethernet Switch 4Port/8Ports Network Switching Hub IEEE 802.3 AF/AT Switch for IP Camera

Product Description

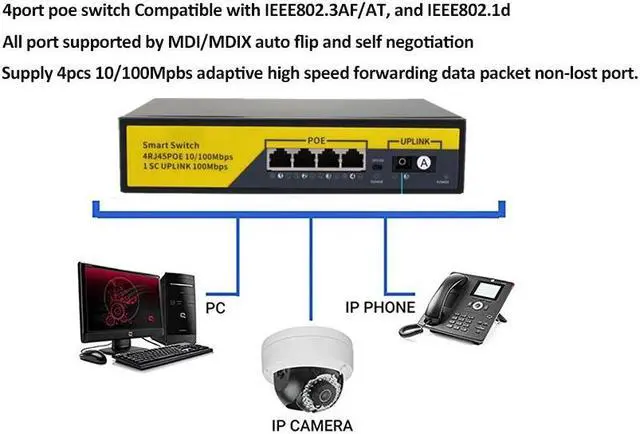

1.One Switch Made to Expand Network:4/8Ports RJ45 Ports supporting Auto Negotiation and Auto MDI/MDIX 2.PLUG AND PLAY: Simple set up with no software to install or configuration needed 3.Saves Energy: Latest innovative energy-efficient technology greatly expands your network capacity with much less power consumption and helps save money 4.Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation 5.The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems

Product Detail

PoE Output Power:15.4W/30W   Network Medium:Cat5 (UTP) or more Network Standards: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet PoE power:15.4W per port(IEEE802.3af). Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) Processing types:Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control Address database Table Size:2K MAC address Buffer memory:48Kb embedded memory per Backboard Bandwidth:1.2/2/5.6G Network Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission Power:Input 52V DC input 110V-250V Installation:Desktop/Rack mounting Environment specification Operating temperature -10-55(32-104) Storage temperature -40-70(14-158) Operating humidity 90% maximum relative humidity, non-condensing Storage humidity 95% maximum relative humidity, non-condensing Package List POE Switch*1 User Guide*1 Warranty Card*1 Power cable*1
