mini 5 port 10/100mbps network switch 5-12v wide input voltage smart ethernet pcb rj45 module with led built-in

mini size 5 port 10/100mbps RJ45 fast ethernet switch module

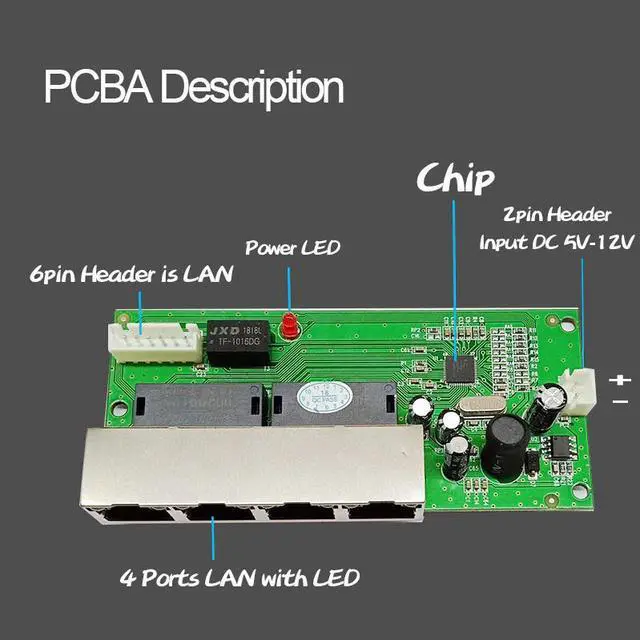

Simple feature:

5 10/100mbps RJ45

100*45*20mm size

mini size,plug n play

Indicators for power,/act

Features

Complies with IEEE 802.3 and IEEE 802.3u standards

5port10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port

Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput

Support MAC address auto-learning and auto-aging

LED indicators for monitoring power,/activity

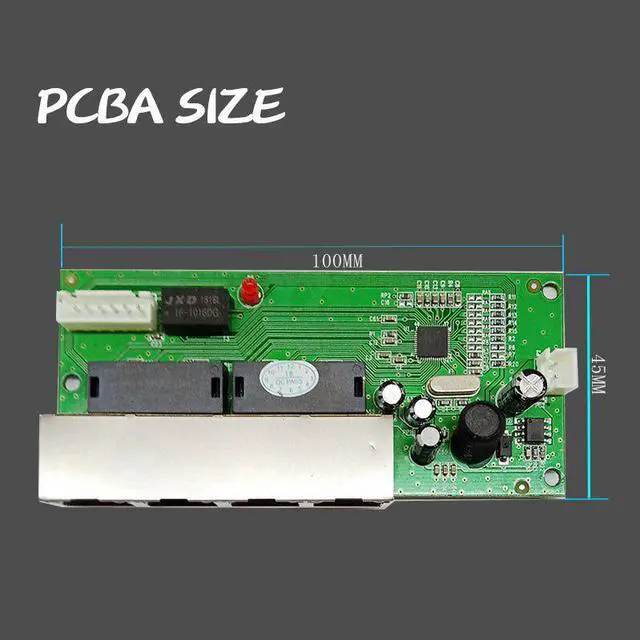

Standards cabling size design,PCBA size: 95x40x20mm

Power input DC range 5-12v

OEM is supported for bulk order

Product specification

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3x flow control

protocol

CSMA/CD

Transmission Rate

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port

Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(Less than 100m)

100Base-TX:Cat 5 UTP(Less than100m)

Number of Ports

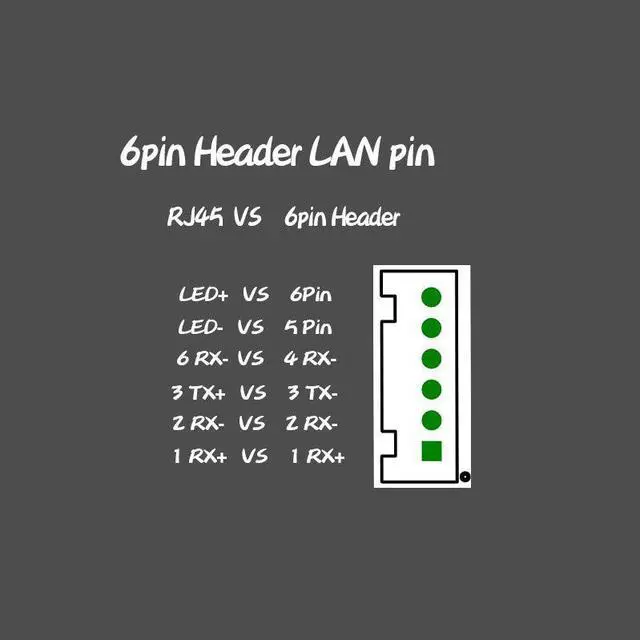

4port 10/100M RJ45 ports and 1PCS 6pin header port

UP

Any port (support Auto-MDI/MDIX function)

Transmits Method

Store-and-Forward

Temperature

Operating Temperature 0 ~40 Celsius  (32 F~104 F)

Storage Temperature -40 ~70 Celsius (-40 F~158 F)
