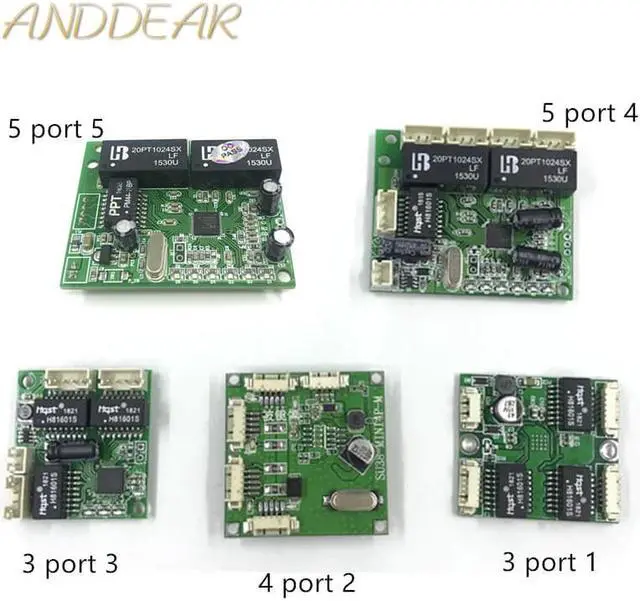

5V 12Vswitch module PBC OEM module size 3/4/5 Ports Network Switches Pcb Board ethernet switch 5V-12V 10/100Mbps
- Enjoy Your Shopping
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
All module products in our store contain connecting lines
The switch module widely use network cabling and cabling distance extend of the network cabling boxes, multimedia cabling boxes and other
Complies with IEEE 802.3 and IEEE 802.3u standards
it is available for mulitmedia cabinet
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power, link/activity

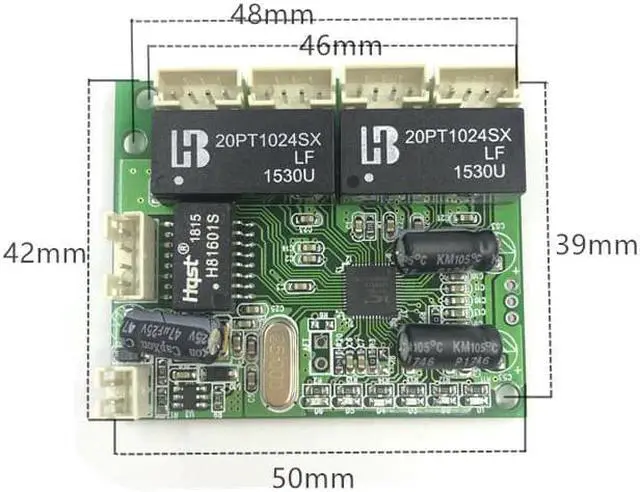

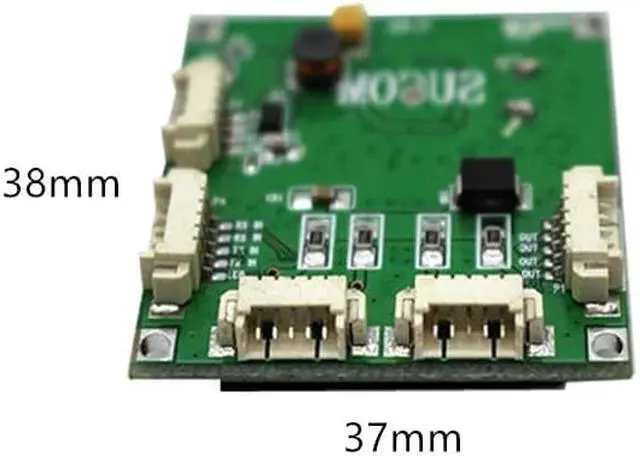

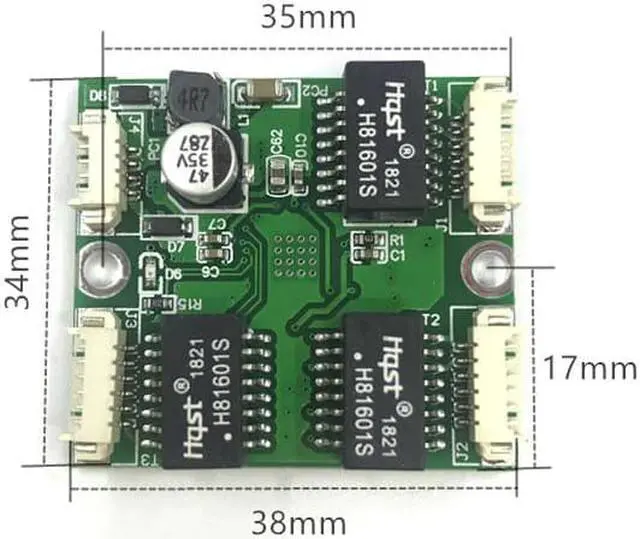

cabling size design, PCBA size: 38*38mm
External supply power adapter 5-12V
Product pass CE and ROHS Certification
OEM/ODM, Professional custom Ethernet switch module
Network protocol
IEEE802.3 10Base-T, IEEE802.3 10Base-TX
Ports
4 10/100Mbps Auto-Negotiation ports
Network Media(Cable)
10Base-T: UTP category 3, 4, 5 cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m),100Base-Tx: UTP category 5, 5e cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m)
Swiching capacity
1G
LED Indicators
100Mbps Link/Act
Transfer Method
Store-and-Forward
MAC Address Learning
Automatically learning, automatically Update
Frame Filtering and Forward Rate
10Mbps: 14880pps, 100Mbps: 148800pps
Dimension
38*38MM
Environment
Operating Temperature: 0°C~40°C(32 F~104 F),
Storage Temperature: -40°C~70°C(-40 F~158 F),
Operating Humidity: 10%~90% non-condensing,
Storage humidity: 5%~90% non-condensing
Support Windows/MAC OS/Netware/Linux operating system
The switch module widely use network cabling and cabling distance extend of the network cabling boxes, multimedia cabling boxes and other
Complies with IEEE 802.3 and IEEE 802.3u standards
it is available for mulitmedia cabinet
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power, link/activity
cabling size design, PCBA size: 38*38mm
External supply power adapter 5-12V
Product pass CE and ROHS Certification
OEM/ODM, Professional custom Ethernet switch module
Network protocol
IEEE802.3 10Base-T, IEEE802.3 10Base-TX
Ports
4 10/100Mbps Auto-Negotiation ports
Network Media(Cable)
10Base-T: UTP category 3, 4, 5 cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m),100Base-Tx: UTP category 5, 5e cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m)
Swiching capacity
1G
LED Indicators
100Mbps Link/Act
Transfer Method
Store-and-Forward
MAC Address Learning
Automatically learning, automatically Update
Frame Filtering and Forward Rate
10Mbps: 14880pps, 100Mbps: 148800pps
Dimension
38*38MM
Environment
Operating Temperature: 0°C~40°C(32 F~104 F),
Storage Temperature: -40°C~70°C(-40 F~158 F),
Operating Humidity: 10%~90% non-condensing,
Storage humidity: 5%~90% non-condensing
Support Windows/MAC OS/Netware/Linux operating system
