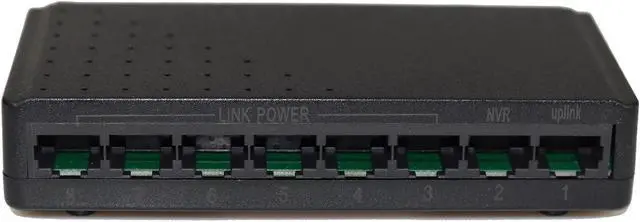

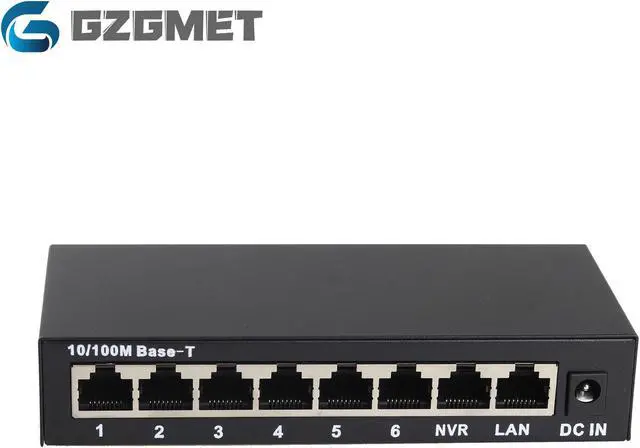

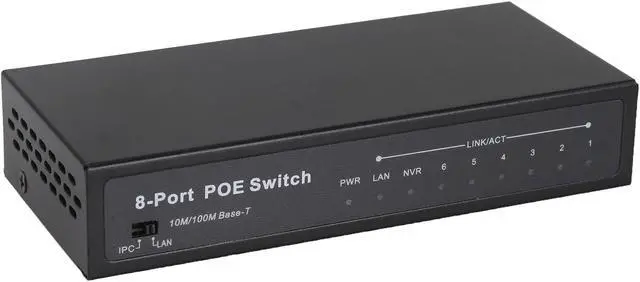

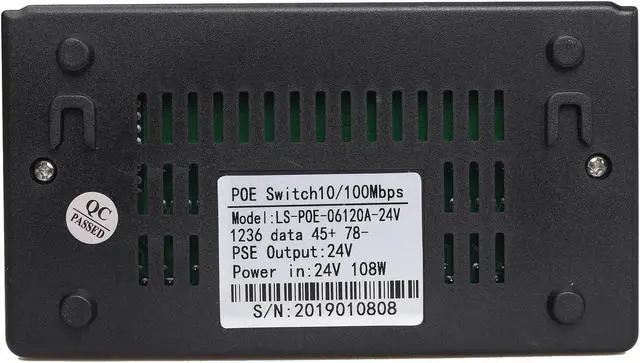

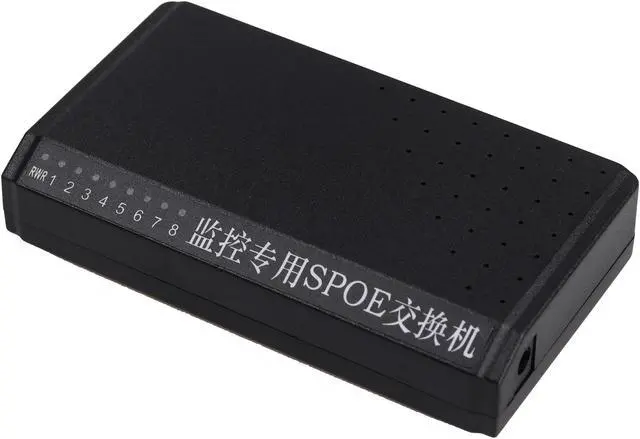

24V 8 Port POE Switch Ethernet 100Mbps Network IP Cameras Wireless AP 6 + 2 Network Switches 108W PoE HUB

Features:

1. Full-duplex IEEE802.3x standard, half-duplex using Backpressure standard;

2.6 10 / 100M adaptive RJ45 POE power supply port, a 100M UPLINK port;

3. Support port auto flip function;

4. Transmission using storage - forwarding mechanism to provide full line speed forwarding rate to ensure data integrity;

5. Automatically maintain MAC address list, support two-way address learning function;

6. Each port provides its own independent bandwidth, providing true non-blocking transmission;

8. Appearance: DS compact case;

9. Lightning rating: 2.0KV

10,Power supply: DC 12-56V

Specifics:

Uplink port RJ45   2

POE port 6

Backplane bandwidth 1.6G

Address table capacity 2K

Full line speed forwarding All ports in full duplex mode meet wire-speed forwarding

Forwarding mode Store and forward

Filtering and forwarding rates 10Mbps, 100Mbps

Valid packet length 1518 Byte

Dimensions 125x70x25mm

Power supply 65W

Port adaptive stand by

Operating temperature 0-50 ° C

storage temperature -20 ° C to 70 ° C

Operating Voltage 12-56VDC

Maximum power consumption 10W

working frequency 50HZ AC

Maximum PoE Power Supply (PSE)  108W
