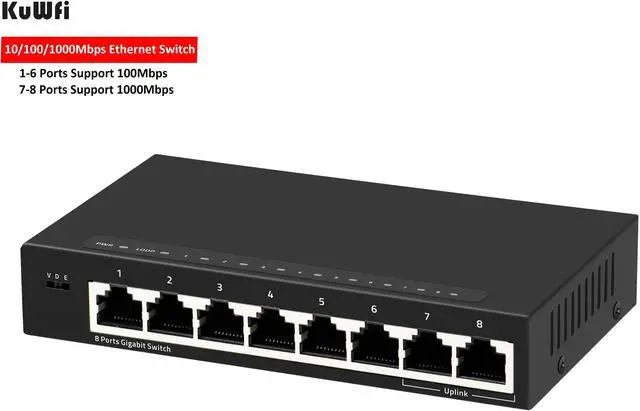

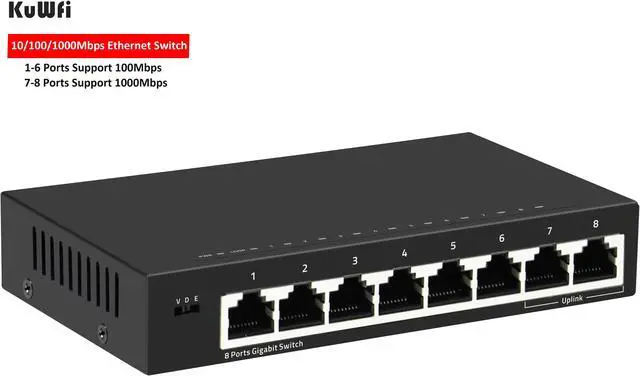

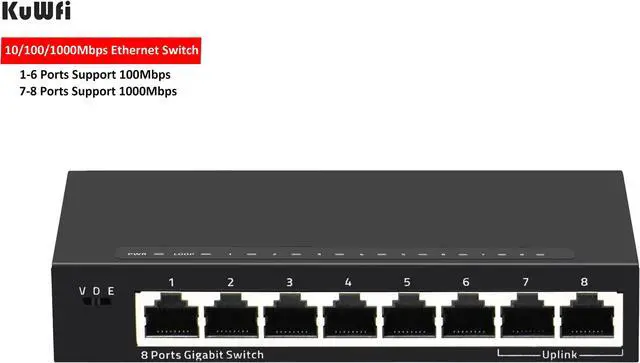

Gigabit 8-Port Ethernet Switch Mini Desktop1000Mbps Fast Network Switch LAN Hub/ Full or Half Duplex Exchange 2020 New

Product Description1.This switch is a 8-Port Gigabit Desktop SOHO switch. It provides 2 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared

2.with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth.

3.Without configuration, it can be played once plugged.

4.With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.

Specifications

I/O Interface

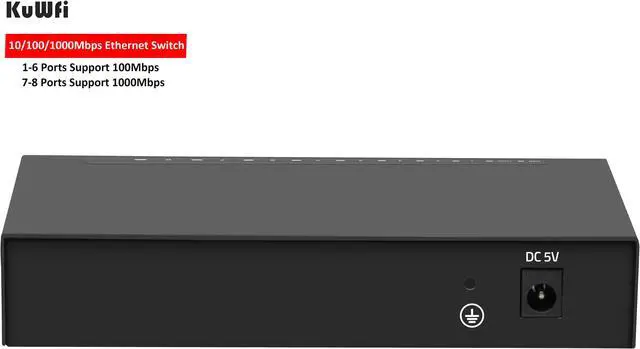

Power

DC 5V

Ethernet

8*RJ45 10/100/1000Mbps Ports

Performance

Switching Capacity

16Gbps

Throughput

11.9Mpps

Packet Buffer

2.5M

MAC Address

1K

Jumbo Frame

2K

Transfer Mode

Store and forward

MTBF

100000

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX/FX)

IEEE802.3ab (1000Base-TX/FX)

IEEE802.3x (Flow control)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3,4,5 or above UTP(100m)

100Base-TX : Cat5  or above UTP(100m)

1000Base-TX : Cat5 or aboveUTP(100m)

Protection

Security Certificae

CE,FCC,RoHS

Environment

Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing
