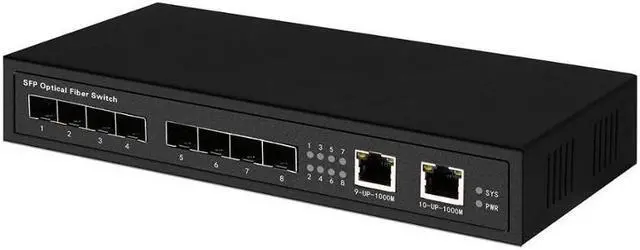

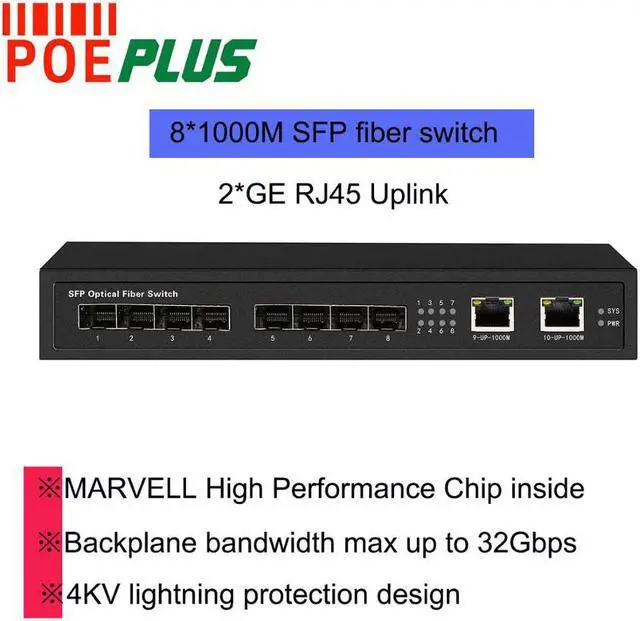

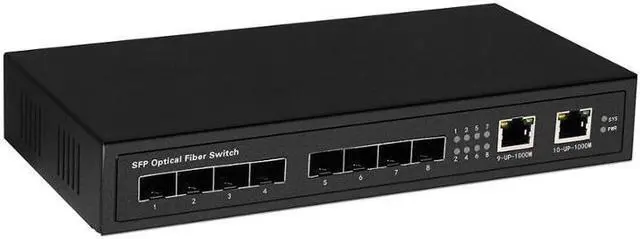

8 port fiber switch 8* SFP +2 ports 100/1000M RJ45 full gigabit unmanaged network switch

8*1000M SFP+2*10/100/1000Mbps unmanaged fiber switch

SPECS

Model

S0802GST

Product

Full Gigabit 8SFP+2TX Switch

Fixed Port

2*10/100/1000Base--TX RJ45 port(Data)

8*1000M SFP

Network Protocol

IEEE802.3

IEEE802.3i 10BASE-T

IEEE802.3u100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE802.3x

IEEE 802.3z 1000BASE-X

Port Specification

10/100/1000BaseTX Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

32Gbps

Packet Forwarding

14.44Mpps

MAC Address

8K

Buffer

4.1M

Transmission Distance

10BASE-T Cat3,4,5 UTP(250 meter)

100BASE-TX Cat5 or later UTP(150 meter)

1000BASE-TX Cat6 or later UTP(150 meter)

Single mode single fiber(MAX 80KM)

Single mode double fiber (MAX 100KM)

Multiple mode double fiber(MAX 850M/2KM)

Watt

15W

LED Indicator

PWR:Power LED

:( System LED

Port:(Green-10/100M LED+Orange=1000M LED)

1~8:(SFP LED

Power

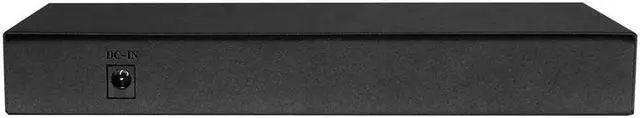

Built-in power DC 12V 2A

Operating Temperature/Humidity

10+55°C5%90% RH Non coagulation

Storage Temperature/Humidity

40+75°C5%95% RH Non coagulation

Product size/Packing sizeL*W*H

225mm*105mm*35mm

295mm*170mm*100mm

N.W/G.Wkg

0.6kg/0.9kg

Installation

Desktop

Lightning Protection level

3KV 8/20us

IP30

Certificate

CE mark, commercialCE/LVD EN60950

FCC Part 15 Class BRoHS

Warranty

Whole device for 1 year(Accessories not included)
