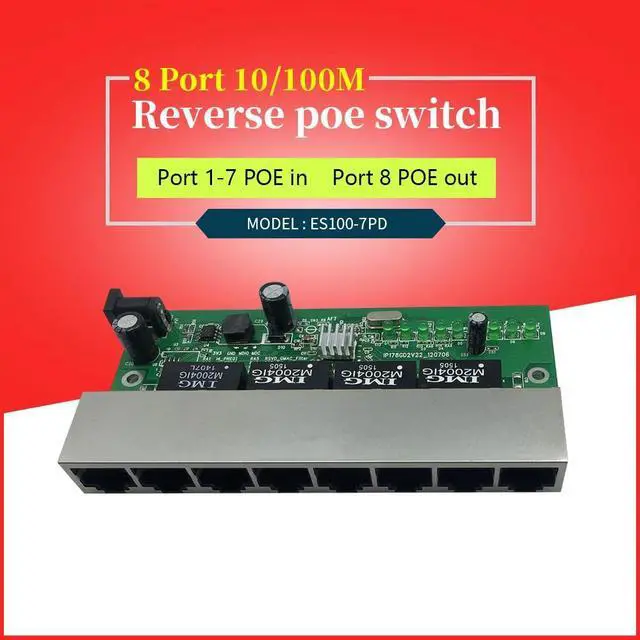

24v 8 port 10/100M Ethernet Reverse poe switch

MODEL:ES100-7PD

Introduction

ES100-7PD Reverse PoE Switch with 7-Port PoE provides the seamless network connection. It integrates 10/100Mbps Fast Ethernet network capabilities. Port1-7 for PoE In, Port 8 can do PoE out,Support 24v 1A  Passive PoE compliant PSD and PD.

Features

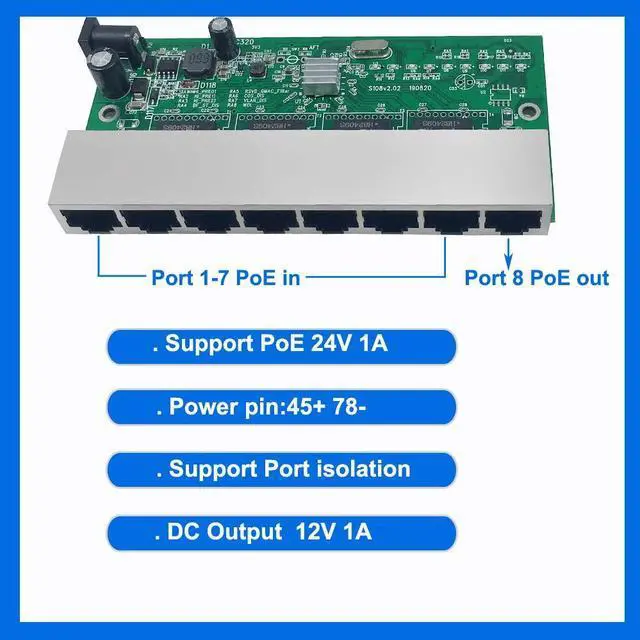

1.  Port 1-7 for PoE In,Port 8 for PoE Out.

2. Support Fixed Vlan, No.1 Port to No.7 Port can not communicate with each other,but they all can communicate with No.8 Port

3.   Support 24v Passive PoE compliant PSD and PD.

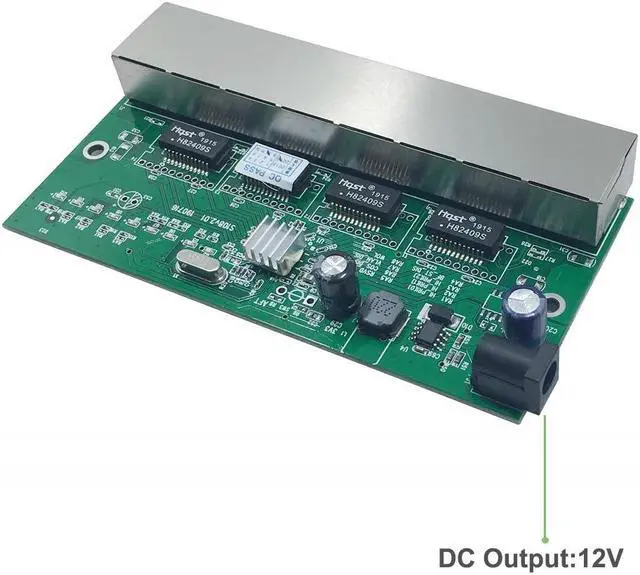

4.  DC output 12v power supply via dc jack,which can be supplied to ONT

5.  Plug and play

6.  Support Green Ethernet

Specification:

PoE

PoE in

1-7 port

Powered pin

45+,78- 24vdc

PoE out

8 port

Power pin

45+,78- 24vdc

Ethernet port

8

parameters

interfaceRJ45

linecat 5,

protocol

IEEE 802.3 i 10 BASE-T;

IEEE 802.3 u 100 BASE-TX;

IEEE 802.3 x Flow Control;

Performance

back inpress1.6G

address48bits MAC

address database1,000MAc

delay<3ms

buffer 96kb

Working Tem.

0-55

Storage Tem.

20-70

Operatig Humidity

20-85,Non-condensing

Electromagnetic Emissions

CE mark,commercial  FCC Part 15 class B   C tick   VCCI Class B

Safety

CE Mark,commercial    CE/LVDÂ EN60950

Warrnty

One year

Gross Weight

0.5Kg (5pcs/ PCB)
