5-Port Fast Ethernet Unmanaged Switch network ethernet switch rj45 lan hub internet splitter ethernet hub Plug and Play

5-Port Fast Ethernet Desktop Switch

Overview:

F1005 provides 5 10/100Mbps autosensing ports and all ports support Auto MDI/MDIX for parallelwire and crosswire, making this device not only can be connection to common terminal equipments, but also can be cascade connection to other nerworking equipments to extend your networking easily.F1005 can provide you a easy, economic, high-performance solution for 100M networking, which is your ideal chioce for high-speed networking

Features:

Provide 5 10/100Mbps auto-negotiation ports

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x

Supports MAC address self-learning and auto MDI/MDIX

Supports full-duplex 802.3x flow control and half-duplex backpressure flow control

Plug and play, no need configuration

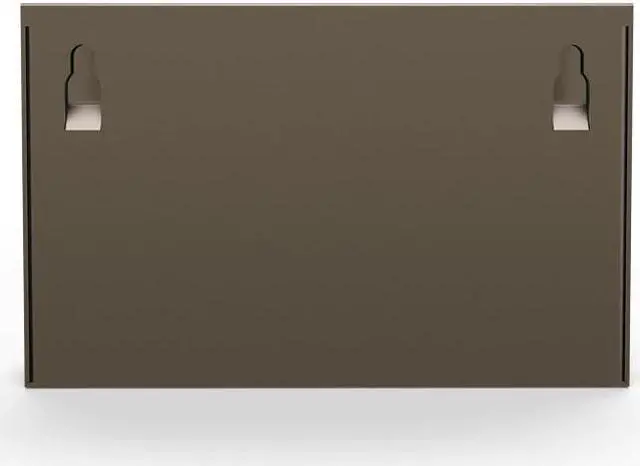

Desktop or wall mounting Design , steel case

Application

Specification:

Standard&Protocol

IEEE 802.3IEEE 802.3uIEEE 802.3x

Transmission Media

100BASE-TX: Cat.5, Cat.5e or Above100mUTP/STP

Interface

5*10/100Mbps auto-negotiation RJ45 ports, auto MDI/MDIX

LED

1*power LED5*10/100Mbps Link/Act LEDs

Dimension

100mm×64mm×25mm(W*D*H)

Forwarding Mode

Store-and-Forward

MAC Address Table

1K

Forwarding Rate

10BASE-T14881pps/port

100BASE-TX148810pps/port

Backbound Bandwidth

1.0Gbps

Power

Input : 100~240V AC50/60Hz

Output : 5V DC0.6A

Temperature

Operation Temperature:-10°C~45°C

Storage Temperature:-40°C~70°C

Humidity

Operation Humidity:10%~90% RHnon-condensing

Storage Humidity 5%~90% RHnon-condensing
