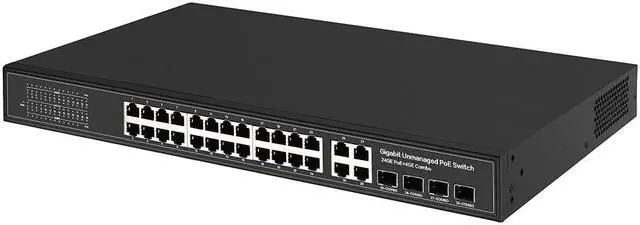

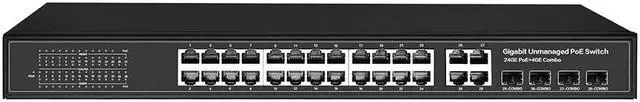

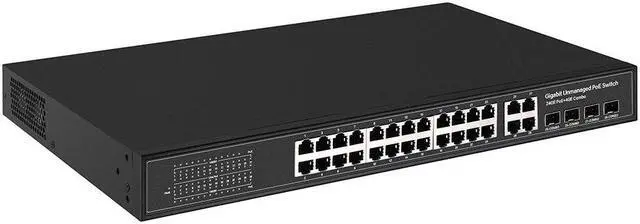

Switch 24 Ports with 4GE/Optical Fiber SFP Combo Uplink Network Gigabit CE/FCC/ROHS/Reach Certified

The TS58P-24G-4TC is a 10/100/1000Mbps unmanaged switch, which provides 24 DATA+ ports and 4GE/SFP combo uplink ports. Among them, port 1 -24 follows the 802.3af/at standard and supports maximum power output of 30w. The ports of the switch can automatically detect and supply power to the PD devices that complies with the 802.3af/at standard. Otherwise, there is no power supply output. In addition, the switch supports auto-negotiating traffic control functions and is compatible with terminal devices of 10Mbps, 100Mbps1000Mbps.

Specification

Model

S5800P-24G-4TC

Product

Full Gigabit 24+4 Switch

Fixed Port

24*10/100/1000Base-TX  portData/Power

4GE/SFP COMBO

Ports

1-24 port supports

Network Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

Standard

IEEE802.3af/at

Port Specification

10/100BaseTXAuto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

56Gbps

Packet Forwarding

40.32Mpps

MAC Address

8K

Buffer

4.1M

Transmission Distance

10BASE-T Cat3,4,5 UTP(250 meter)

100BASE-TX Cat5 or later UTP(150 meter)

1000BASE-TX Cat6 or later UTP(150 meter)

Power Pin

Default 1/2(+)3/6(-)Optional order 4/5(+)7/8(-)

Single port power

Average 15.4WMAX 30W

Total power/Input voltage

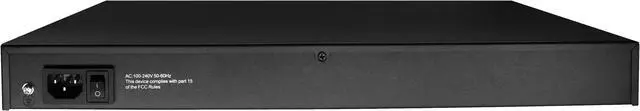

MAX 400W AC100-240V 50/60HZ

Watt

Standby Power Consumption30W

LED Indicator

PWR:Power LED

Power Input

440mm*290mm*45mm
