24 ports 22 PoE 250W Gigabit VLAN Switch PoE Switch for Camera AP, over-distance 260meters Desktop Ethernet Network Switch

Key Features:

1)Comply with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,IEEE802.3af, IEEE802.3at  standards.

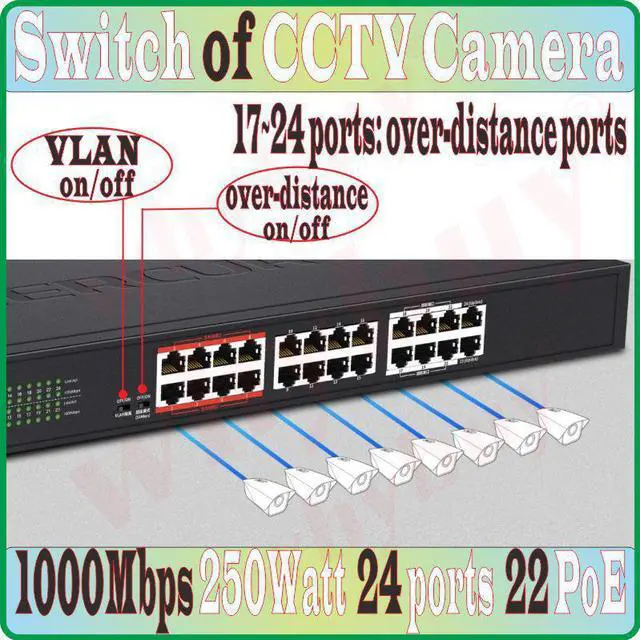

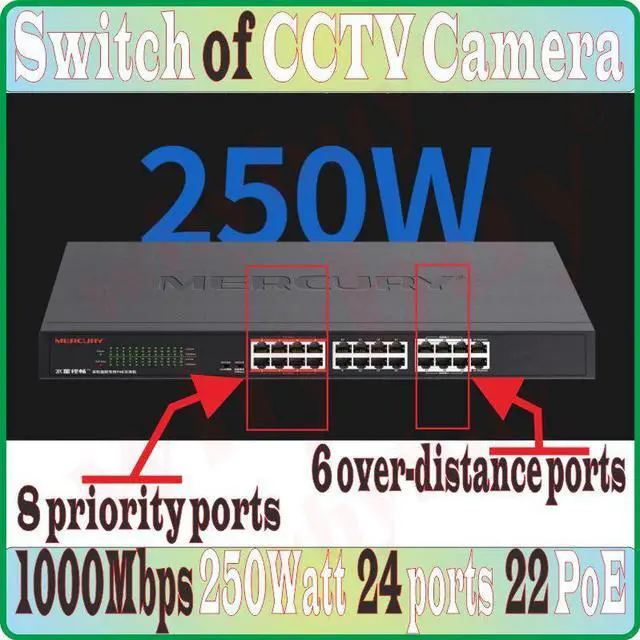

2)Provide 6 over-distance ports to support remote transmission of monitoring data. By a over-distance on/off, after on, 17~22 ports work at 10Mbps, and the transmission distance can reach 260 meters.

3)Provide 8 priority ports to ensure priority transmission of monitoring data.These eight priority ports ensure that the port data is preferentially forwarded when the data is congested. The security monitoring device accesses the priority port to ensure the minimum probability of data packet loss and data delay in the event of an emergency. The video is played smoothly in real time.

4)Intelligent flow control mode, intelligent cache, to avoid data loss.

5)Store-and-forward architecture.

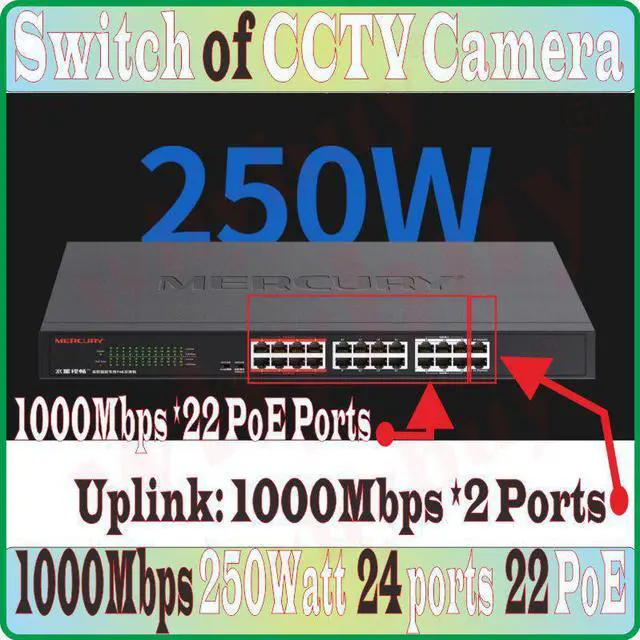

6)22* 10/100/1000Mbps RJ45 ports, support PoE power supply.  2* 10/100/1000Mbps RJ45 ports, Uplink Ports, Not support PoE.

7)Provides 22 PoE ports, the maximum power of the whole machine is 250W, and the maximum power of a single port is 30W.

8)Provides a VLAN mode switch. After being enabled, 1 to 22 ports are isolated from each other and can only communicate with the Uplink port, port 23 and port 24.

9)Supports 16K MAC address table depth.

10)Dynamic LED indicator for easy working status prompting and troubleshooting.

11)Desktop shell structure design, support wall mounting.

12)Intelligent power management, if the power of the powered device exceeds the limit, the system starts the PoE port priority mechanism and cuts off the power supply of the port with lower priority.

13)Each port supports MDI/MDIX auto-flip and auto-negotiation.
