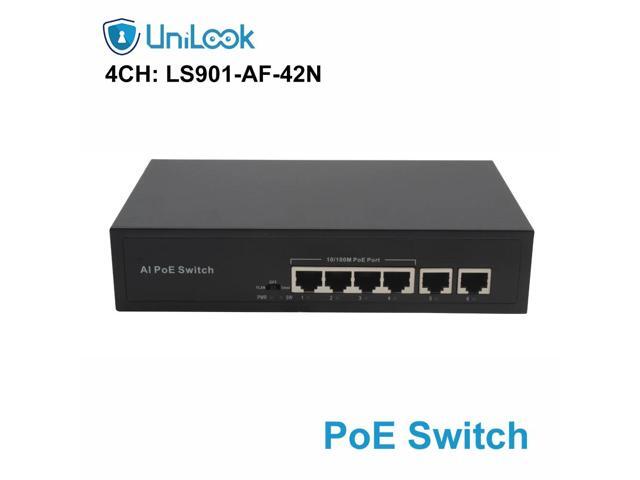

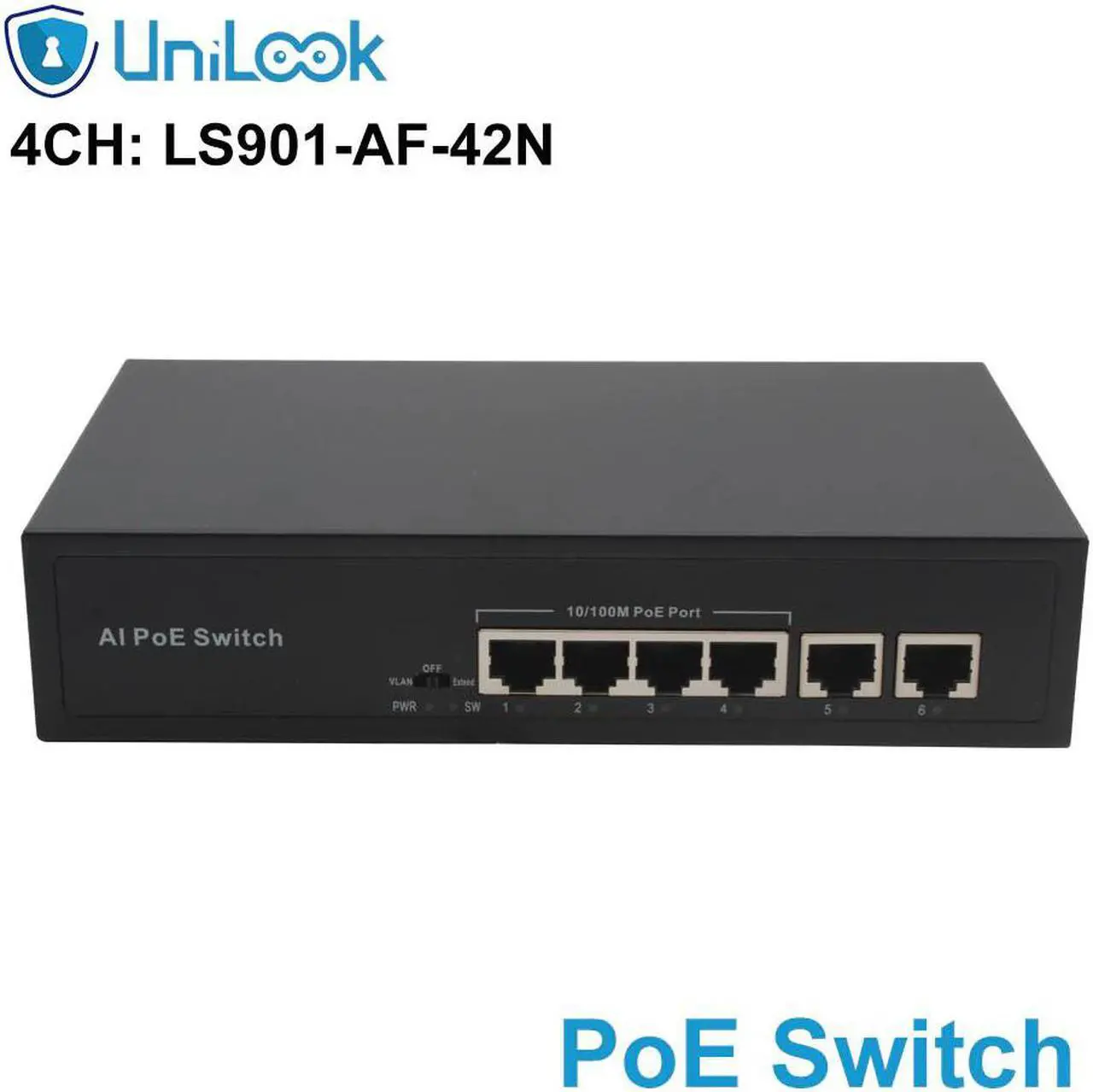

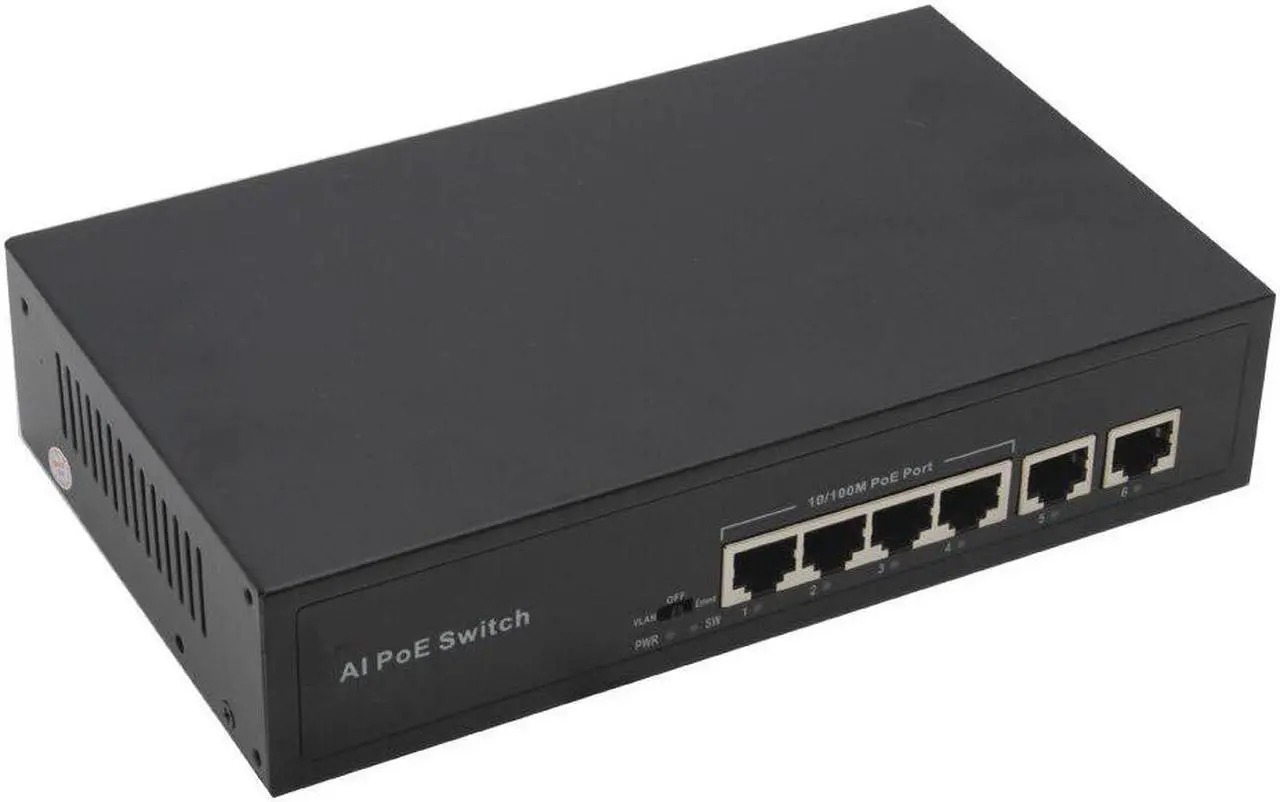

    1+4 Ports 10/100Mbps Mini PoE Switch 48V 1A Power over Ethernet Network Switch for CCTV IP Camera

    • Enjoy Your Shopping
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    This PoE Switch provides a network point for power supply and data transmission.

    All the 5 Ethernet ports can be connected with 10/100Mbps quickly, and the uplink port is Ethernet interface, among which 1-4 port can provide standard IEEE 802.3af power supply.

    Due to the advanced self-sensing algorithm supply power for IEEE802af terminal only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment.

    In addition, it will stop power supply when PoE devices are not connected.

    Technical parameter list

    Product Name: 5-Port AF PoE Switch with 4 PoE Ports and 1 Uplink Ethernet

    Model: LS901-AF-41

    Connector Type: 5 * 10/100M copper cable RJ45 ports(4 PoE ports+1 Uplink)

    Network Media: 10BASE-T: Cat3,4,5 UTP(100 meter) 100BASE-TX: Cat5 or more UTP (100 meter)

    Bandwidth: 1.0Gbps (non-blocking)

    Address Database Size: 1K

    MTBF: 190,000 hours (about 21 years)

    Forwarding Mode: Store-And-Forward

    Network Protocols: IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af

    LED Display System: power supply; Every Port: connecting, PoE working status

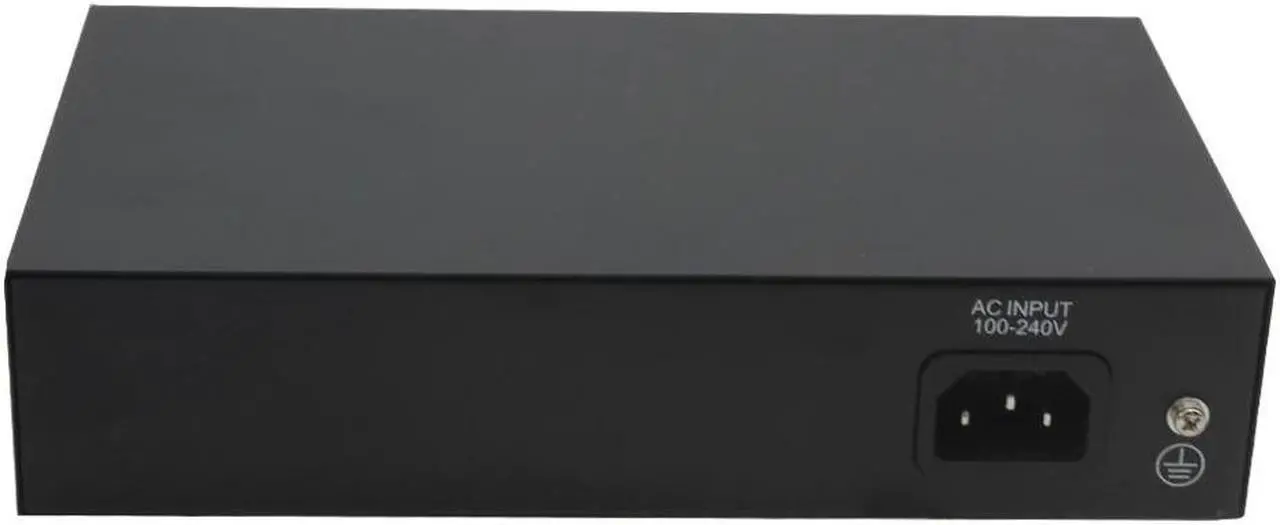

    Power Supply: Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

    PoE Ports: Port 1-4 support POE

    PoE Port Power: 15.4W for each POE port

    PoE Standard: IEEE 802.3af

    PoE Feature: All ports support MDI/MDIX

    Working Environment: Operating Temperature: -20 ° ~ 50 ° C; Storage Temperature: -40 ° ~ 75 ° C;

    Operating Humidity: 10% ~ 95%, non-condensing

    Certification: CE Mark ,commercial; CE/LVD EN60950, RoHS

    Warranty: 3 year warranty ( 1 yeas warranty for power adapter )
