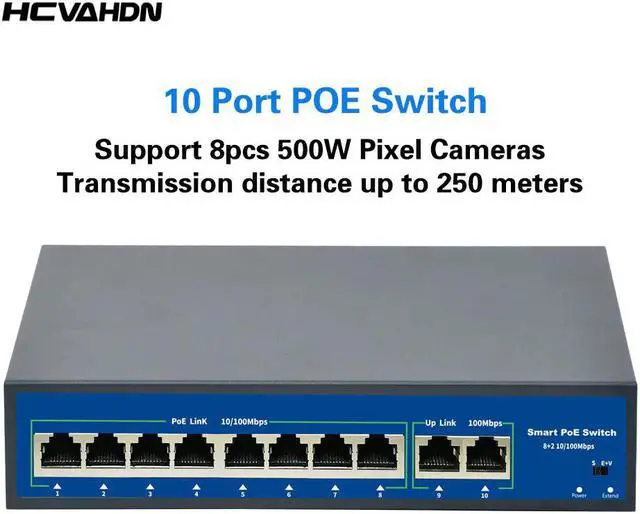

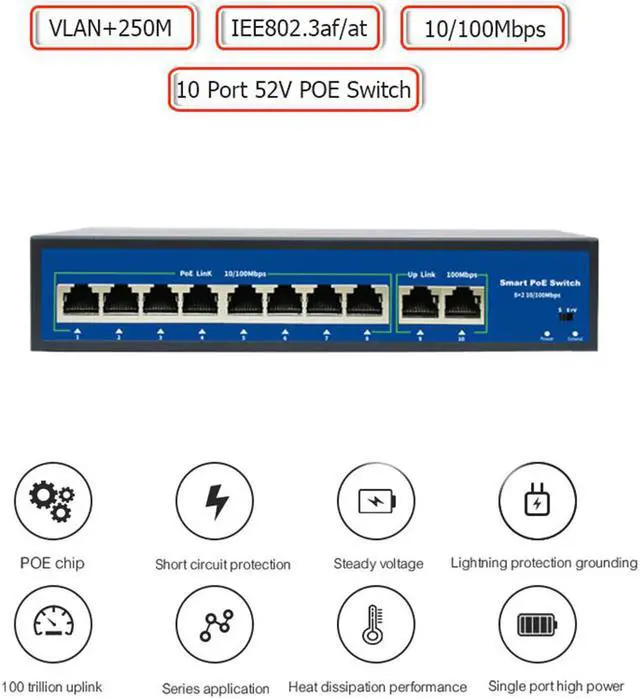

8Port POE Ethernet Switch 52V VLAN 10/100Mbps IEEE 802.3 Af/at Standard Network Switch POE for CCTV IP Camera Wireless AP 250M

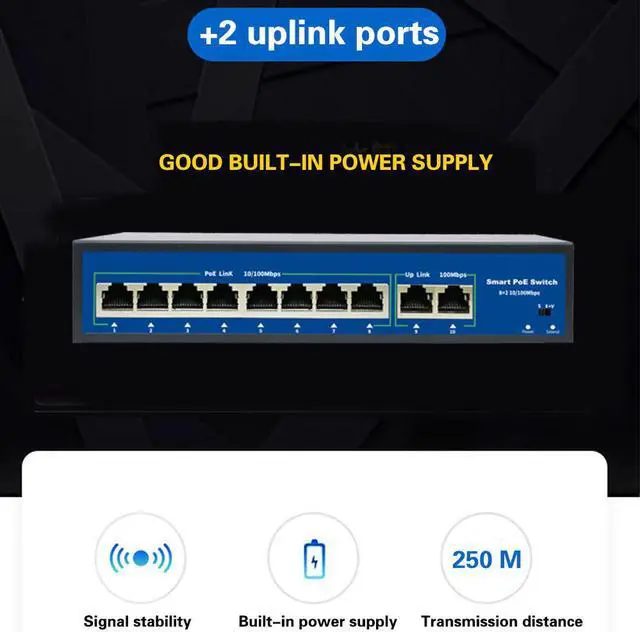

8*10/100mbps POE port;2*10/100mbps UP Link port

250m Distance Vlan Support

Support IEEE802.3AF/AT

Whole Power:120W(52V 2.3A)

All port supported by MDI/MDIX auto flip and self negotiation

Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

Each port max. power supply reached 30W.

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

4KV effective lightning protection

4KV lightning protection design to ensure stable operation of POE switches and monitoring systems in thunderstorms

Transmission distance

Support EXTEND mode, Max Network Cable length to 250 meters.

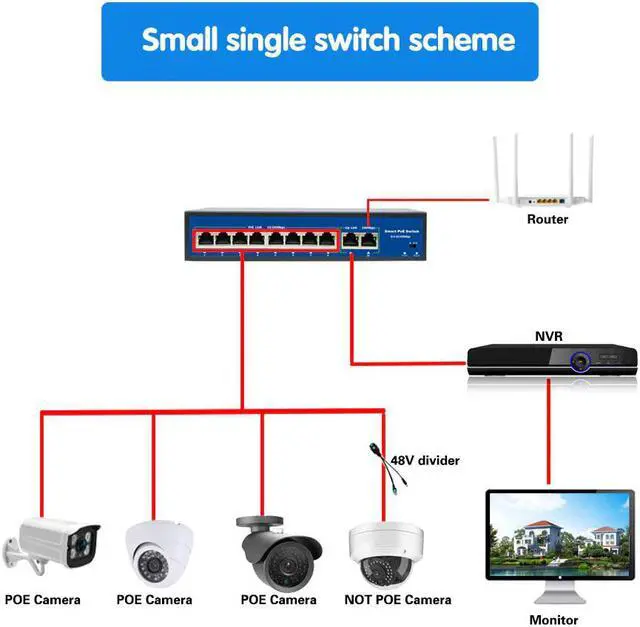

Application scenario

Use one switch to connect multiple cameras. .

Medium series power supply scheme ,Use multiple POE switches to connect multiple cameras

POE switch function parameter introduction

POE Port

1 to 8 support IEEE802.3AF/AT Standard

Output Power

15.4W/30W    IEEE802.3af/at

Power Pin

Both 1/2+3/6- and 4/5+7/8-

Whole Power

120W (52V 2.8A)

POE Protocol

IEEE 802.3af/IEEE 802.3at

POE Type

End-spa

Power Distance

250m

Network Standard

IEEE 802.3 IEEE802.3u802.3x802.3af/a

Network Medium

10/100BASE-TX:5 class and above non shielded twisted pair

Data Distance

250m

Switch Capability

1.6Gbps

Forwarding Mode

Store and forward

Forwarding Rate

10BASE-T:14880PPS/port 100BASE-tx14800pps/port

MAC Address

MAC address table 2K

Size
