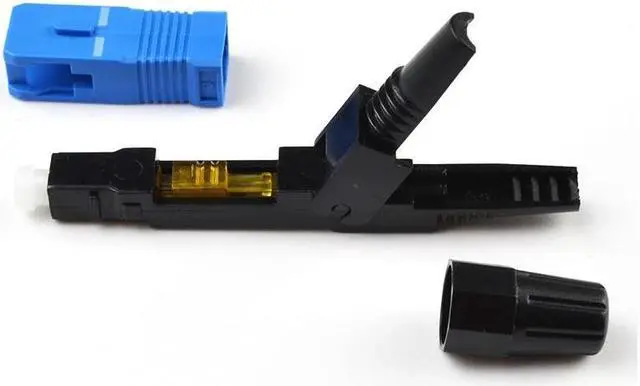

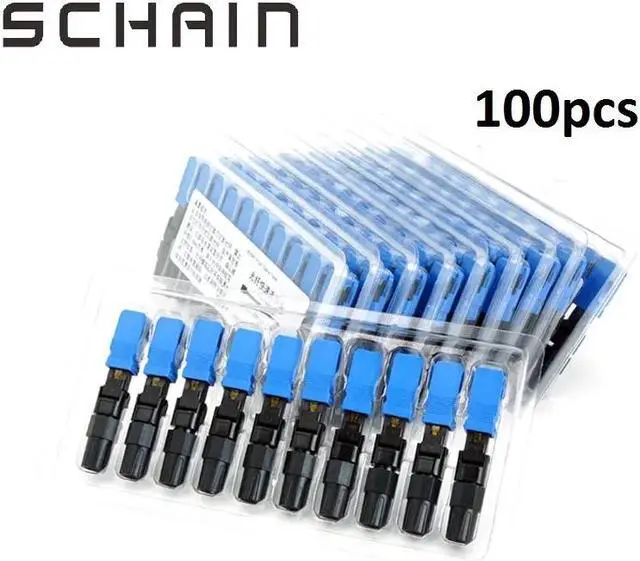

100pcs SC UPC Fast Connector Embeded Fiber Optic Connector SC FAST connector blue fibra Quick Connector FTTH SC connector
- Enjoy Your Shopping
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SC UPC Fast Connector Embedded Connector FTTH Tool Cold Fiber Fast Connector SC Fiber Optic Connector
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
Optical Characteristics
ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter
SM(9/125), MM(50/125, 62.5/125)
125m ( 657A & 657B )
Tight buffer diameter
250m
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
0.3dB(1310nm & 1550nm)
Return loss
50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber
5 N
Fastening strength of naked fiber holder
10 N
Tensile strength
50 N
Using temperature
40~+75°C
On-line tensile strength (20 N)
IL 0.5dB RL 5dB
Mechanical durability (500 times)
IL 0.5dB RL 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
IL 0.3
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
Optical Characteristics
ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter
SM(9/125), MM(50/125, 62.5/125)
125m ( 657A & 657B )
Tight buffer diameter
250m
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
0.3dB(1310nm & 1550nm)
Return loss
50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber
5 N
Fastening strength of naked fiber holder
10 N
Tensile strength
50 N
Using temperature
40~+75°C
On-line tensile strength (20 N)
IL 0.5dB RL 5dB
Mechanical durability (500 times)
IL 0.5dB RL 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
IL 0.3
