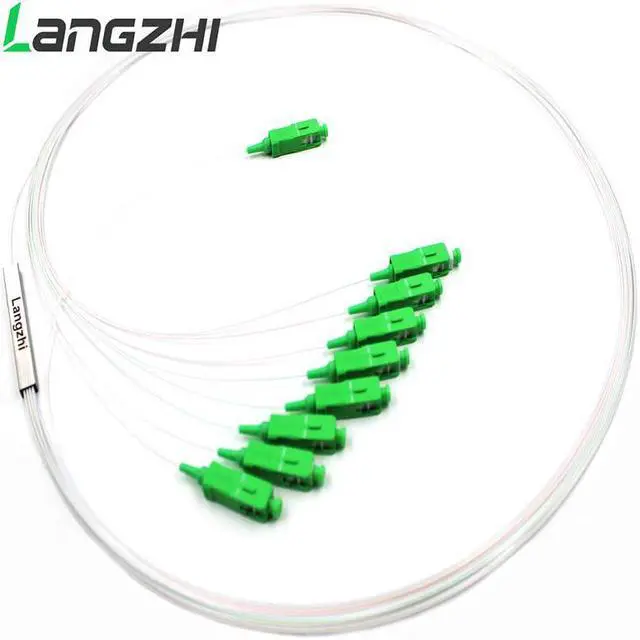

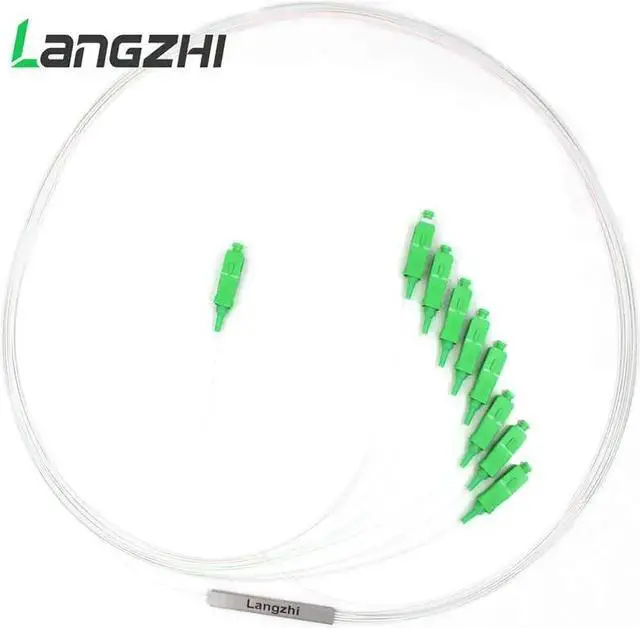

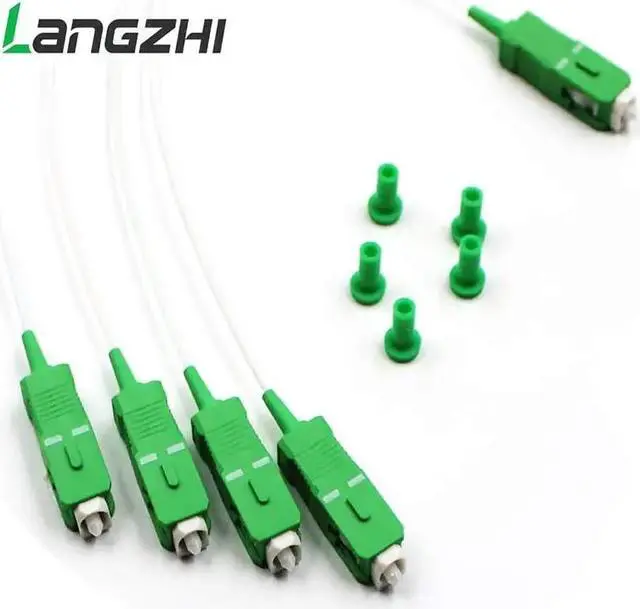

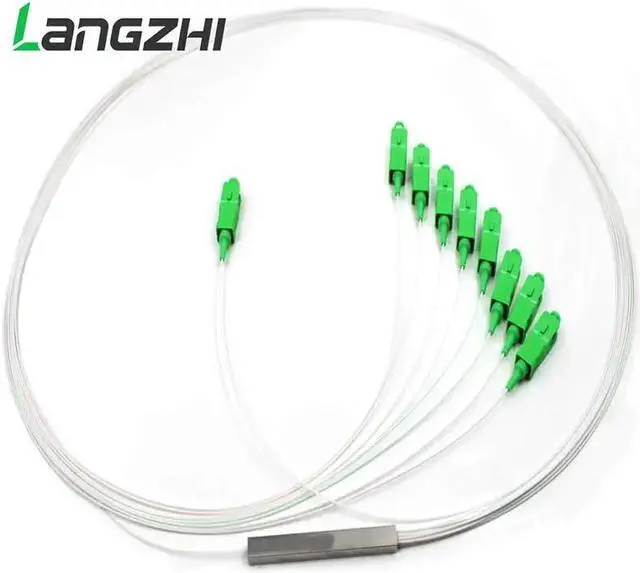

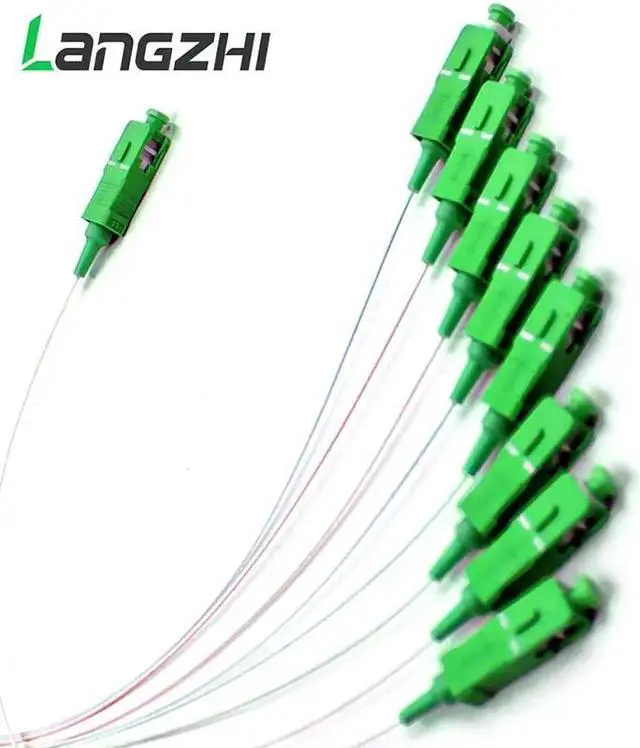

10pcs/lot 0.9mm Steel Tube Fiber Optic PLC Splitter 1x8 SC/APCMini Blockless 1*8 Sc APC Connector Fiber Optic PLC Splitter
- Enjoy Your Shopping
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
kenmerken
uitstekende Mechanische, Kleine Maat
hoge Betrouwbaarheid
lage insertion Loss en lage Polarisatie Afhankelijke verlies
hoge kanaal telt
uitstekende Milieu Stabiliteit en Veel Gebruikt
toepassingen
FTTx Implementaties (GPON/BPON/EPON)
kabel televisie (CATV)
lokale netwerken (LAN)
Test apparatuur
passieve optische netwerken (PON)
specificaties
1X8 Single Mode PLC Splitter Test Report
S/N
202003040901
Operating Wavelength(nm)
12601650
Input Fiber Length(m)
1
Output Fiber Length(m)
1
Operating Temperature()
4085
Storage Temperature()
4085
Package Dimension(mm)
60X7X4
Fiber Type
G657A
Connector Type
SC/APC
Date
2020/07/15
Cable(mm)
0.9
QC:Approved
0118
Channel
IL(dB)
PDL(dB)
1310nm
1490nm
1550nm
1310nm
1490nm
1550nm
CH1
9.88
9.85
10.26
0.14
0.12
0.08
CH2
9.82
9.97
9.81
0.06
0.11
0.09
CH3
9.89
9.76
10.20
0.07
0.10
0.10
CH4
9.80
10.28
9.85
0.14
0.09
0.05
CH5
9.98
10.06
9.88
0.12
0.09
0.06
CH6
10.13
10.05
9.99
0.05
0.11
0.15
CH7
10.17
9.91
9.78
0.08
0.09
0.12
CH8
9.95
10.20
10.10
0.06
0.06
0.15
uitstekende Mechanische, Kleine Maat
hoge Betrouwbaarheid
lage insertion Loss en lage Polarisatie Afhankelijke verlies
hoge kanaal telt
uitstekende Milieu Stabiliteit en Veel Gebruikt
toepassingen
FTTx Implementaties (GPON/BPON/EPON)
kabel televisie (CATV)
lokale netwerken (LAN)
Test apparatuur
passieve optische netwerken (PON)
