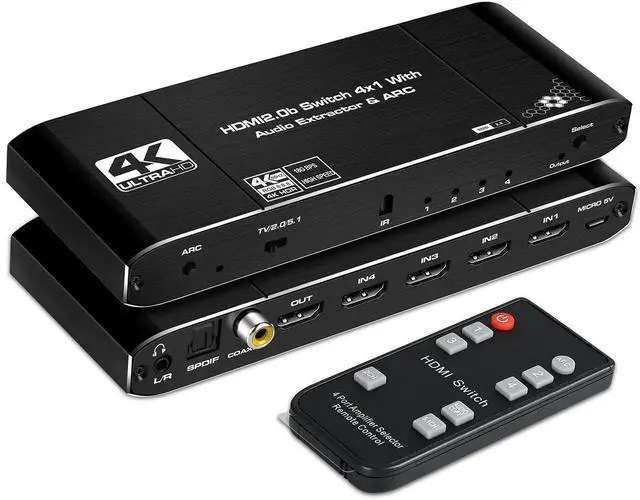

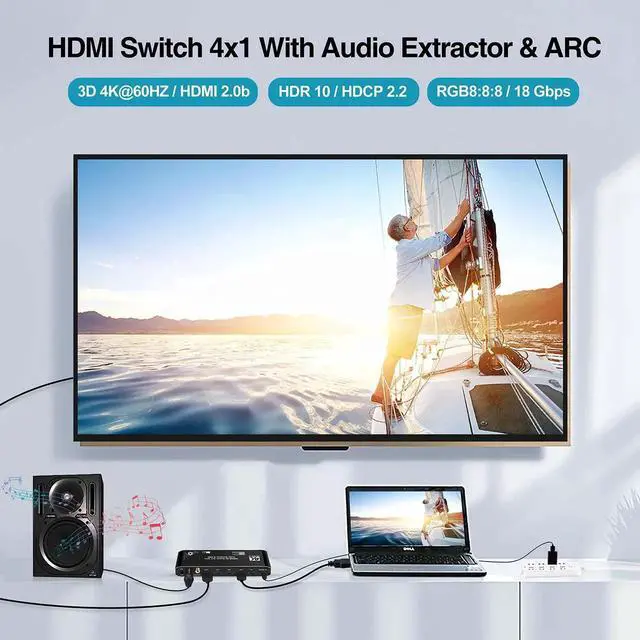

4K@60Hz 4x1 HDMI Switch Audio Extractor with Optical Toslink SPDIF/Coaxial/3.5mm Audio Out, 4 Ports HDMI 2.0b Switcher with Remote Control Support ARC, HDCP 2.2, 3D

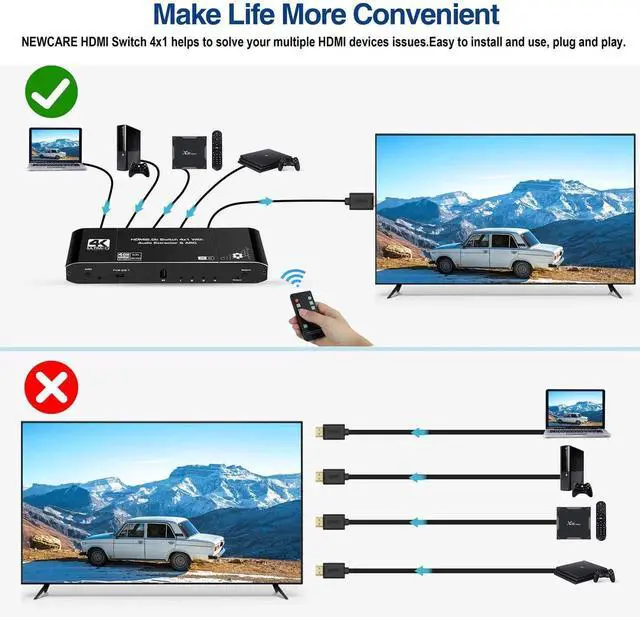

4K60Hz HDMI Switch audio extractor splitter support 4 HDMI Inputs to 1 HDMI Output.

--WARM TIPS--

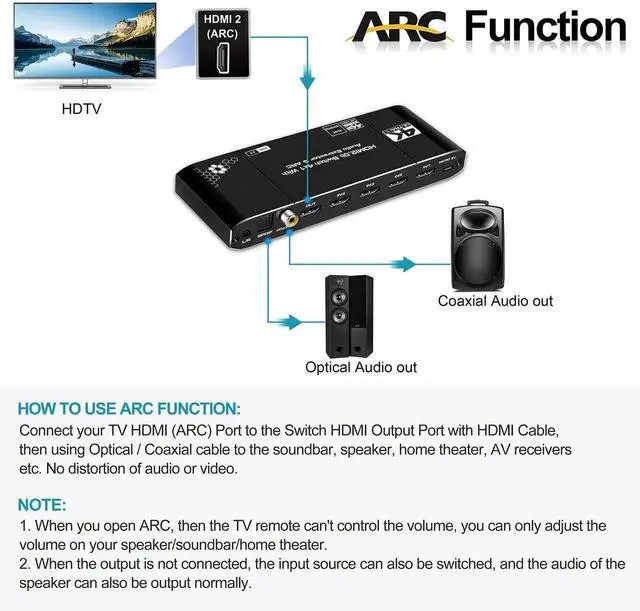

ARC: First, please make sure your display support ARC function. Second, using HDMI cable plug into HDMI ARC port on your display and the other side plug into the HDMI output on the switch.

Requirements of HDMI cable:

26AW (19+1PIN) HDMI 2.0 cable, input up to 5m (max),output up to 5m (max) ;

28AW (19+1PIN) HDMI 2.0 cable, input up to 3m (max),output up to 3m (max).

You should operate it properly when the switch is working, if you find the switch is not working, we suggest you unplug the power supply and plug it again.

When turn on the switch, by default, the input 1 led indicator will light on at the start when disconnect HDMI source.

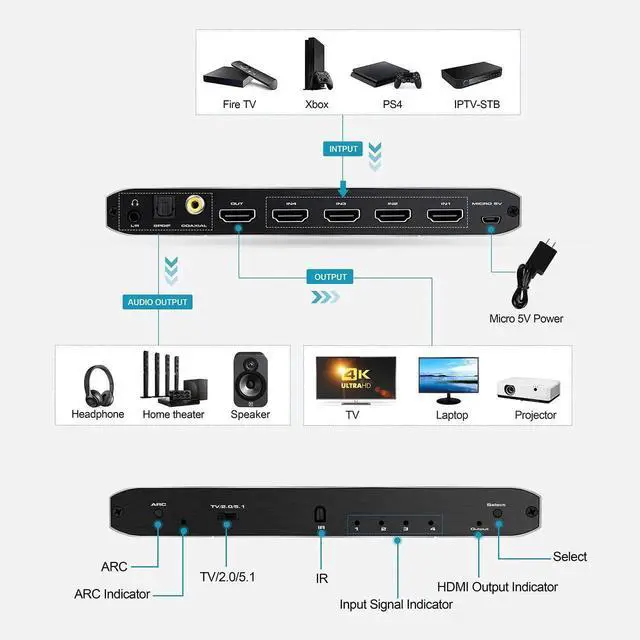

It supports coaxial cable and Optical cable are up to 10 meters (max), if you choose optical audio out or coaxial audio out,you can enjoy 5.1CH or 2CH or audio copy. If you choose 3.5mm audio out, you can enjoy 2CH or audio copy.

Maximum remote control distance is 8 meters, (Warm tip: To better control, we suggest you point at IR light of the switch, finger pulp to press it, wait 2 seconds each time before next press, please press it properly) you will be going to realize that the display will black screen about 5 seconds to change next source. This is normal, please dont worry.

Automatic switch: It will automatic change from HDMI source A to HDMI source B when you turned on source B and back to source A when you turned source B off.

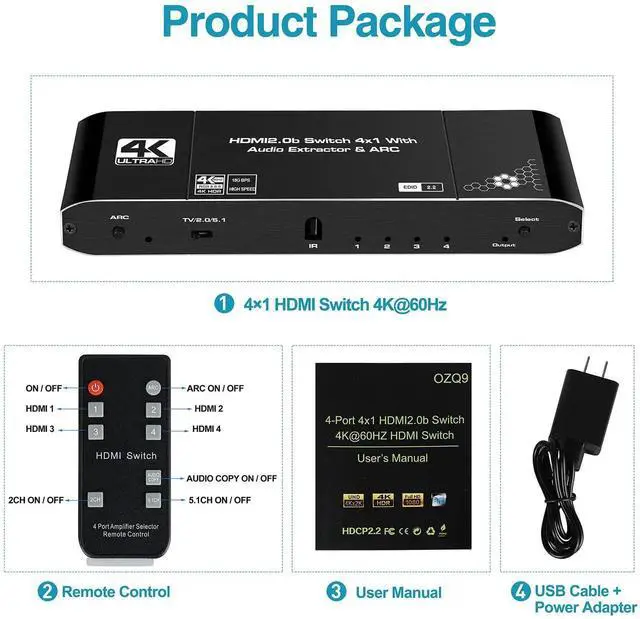

Package Contents:

1x HDMI Switch Box

1x 5V/1A DC Power Adaptor

1x Remote

1x User Manual

1. THREE AUDIO EDID SETTINGS: 2CH for 3.5mm jack or SPDIF stereo output; 5.1CH for SPDIF/coaxial Output, TV mode means output audio depends on the TV. Support Dobly True-HD, DTS-HD, AC3, DTS, DSD, Dobly Digital pass through (Please make sure your display that is compatible with those formats)
2. AUTO-SWITCHING & MANUAL SWITCHING: 4 Ports HDMI switcher with audio output will automatically skip to the next port with a viable signal source. It comes with a built-in IR remote, it allows you to easily switch via IR remote from the comfort of your couch or manual switching via "switch'' button on the device. TIPS: It will not allows auto-switch to the PS5/ X box due to current protection principle.
3. WIDE COMPATIBILITY: This HDMI selector switch works effectively with the HDMI port of any other device such as PS5, DVD, Xbox one, TV Box, Blu-ray Player, Fire Stick, Laptop and HDTV etc. Just connect your HDMI devices and the power adapter and enhance your home theater experience with high-resolution video and audio.
