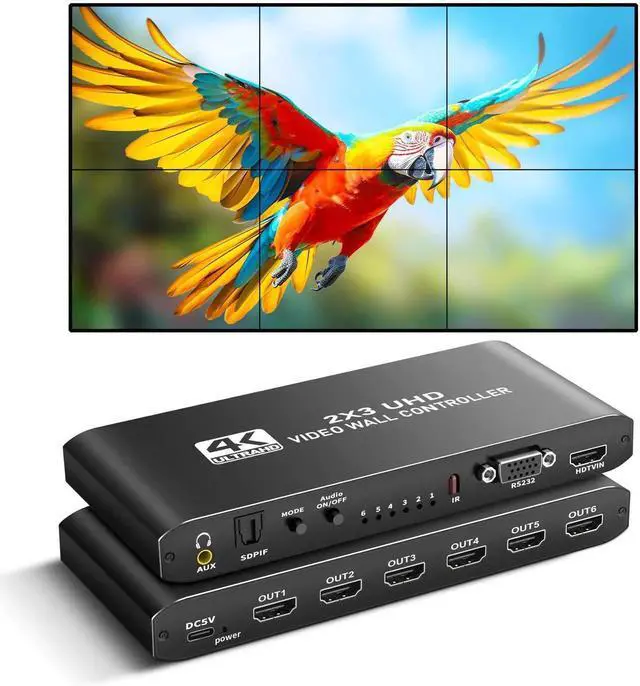

4K HDMI Video Wall Controller 2x3, Video Wall Processor with Audio Out and RS232, 180° Rotation Only for 2x2 Mode, Supports 14 Splicing Modes Including 2x2, 2x3, 3x2, 1x6

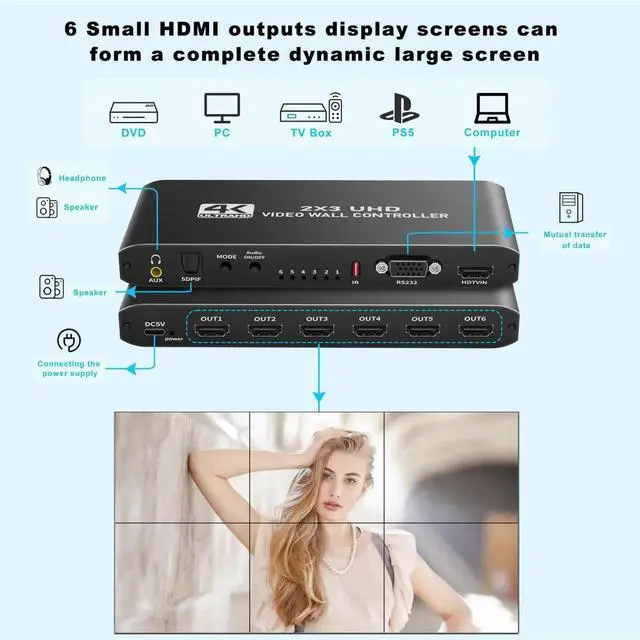

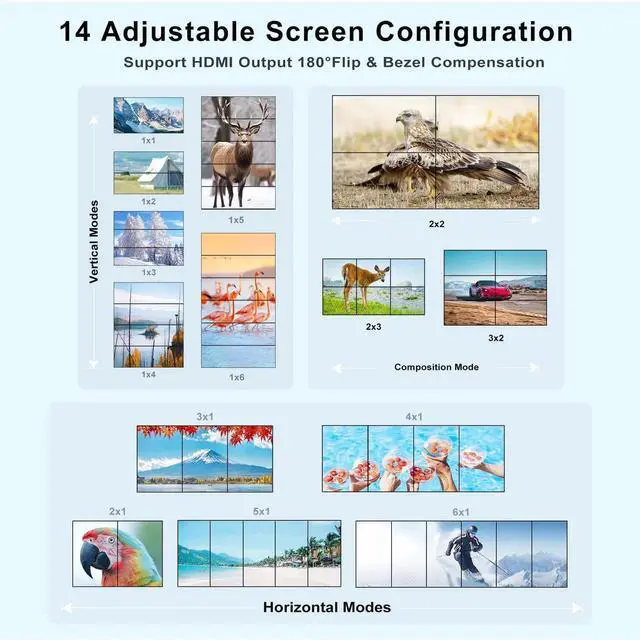

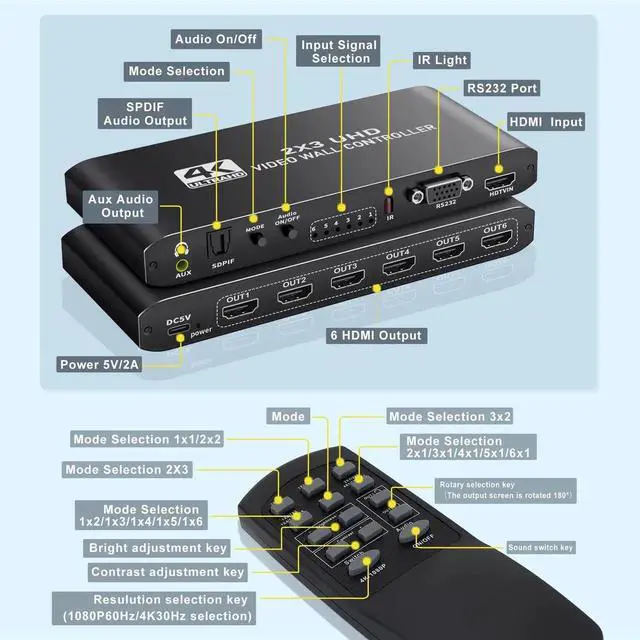

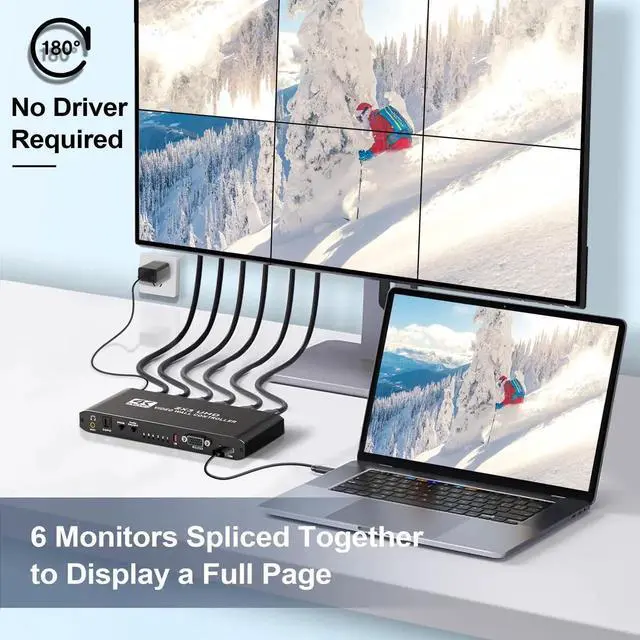

2x3 HDMI Video Wall Processor Controller Our 4K HDMI Video Wall Processor supports one HDMI input and six HDMI outputs, allowing you to divide a single HDMI HD signal into six segments and assign them to multiple video displays (such as rear projection units, LCD TVs, etc.), creating a large, dynamic video wall. Key Features 1 HDMI Input & 6 HDMI Outputs: Distribute a single HDMI signal to six screens simultaneously, creating a large-scale display. 14 Adjustable Display Modes: Choose from display modes like 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1 for flexible screen configurations. 180° Screen Rotation: Rotate the screen by 180° for 2x2 mode to adjust the display orientation and reduce bezel thickness. Audio Output: SPDIF and 3.5mm stereo audio output for connecting external sound systems. Remote Control: Includes both IR remote and RS-232 advanced remote-control options for easy operation. Plug-and-Play: No driver required; simple to set up and use. Specifications HDMI 1.4 & HDCP 1.4 Support Input Resolution: 3840x2160P@24/30Hz, 1920x1080P@25/30/50/60Hz Output Resolution: 4@30Hz Audio Output: 5.1CH audio over optical fiber Audio Format Support: PCM 2.0, Dolby Digital, and DTS Input Format: RGB/YUV 24bit; Output Format: RGB4:4:4 24bit Package Includes 1 x HDMI Wall Controller 1 x IR Remote Control . 1 x 5V/2A Power Adapter 1 x User Manual Tips Q: How to use the 180° rotation function? A: The 180° rotation function works for 2x2 display mode, with output resolution limited to 1080P@60Hz. Please ensure your HDMI outputs are set to 1080P resolution. Q: The screens show No Signal. What should we do? A: Ensure that both the input source and the output displays are set to the same resolution (like 1080P) for proper signal transmission.

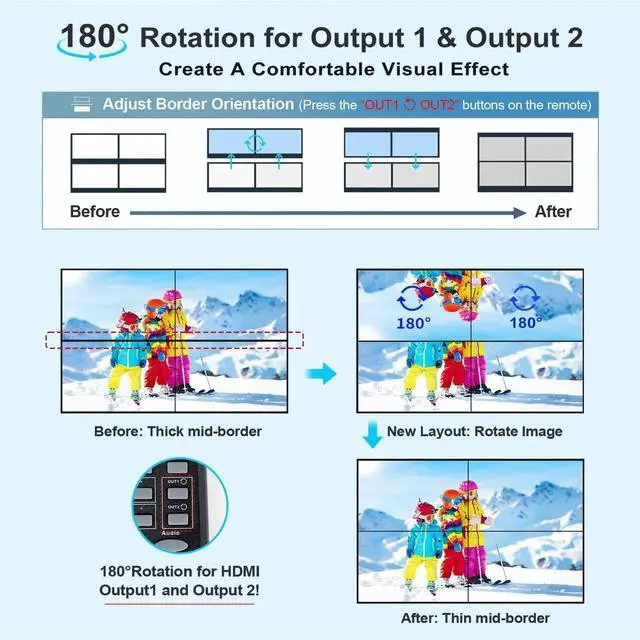

1. 180° Rotation & Edge Mask: Supports 180° rotation for Output 1 and Output 2, ideal for adjusting screens to reduce thick bezels and achieve a seamless display effect. Note: The rotation function is recommended for 2x2 display setups with resolutions up to 4K@30Hz.

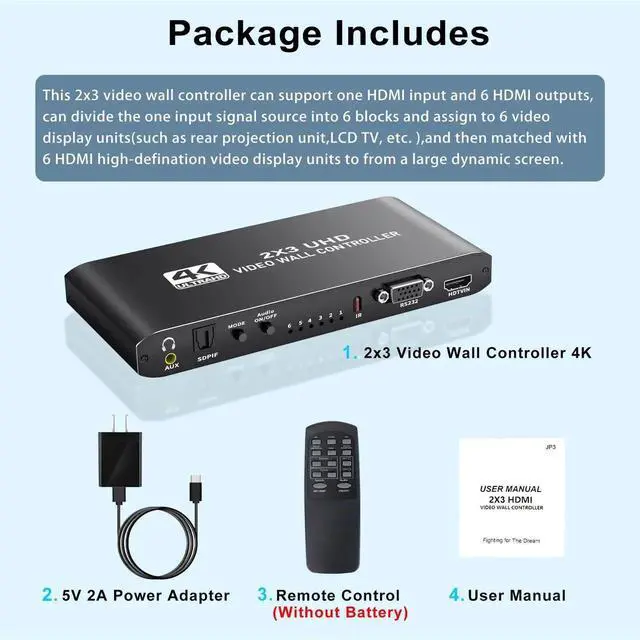

2. What You Get: Package includes: 1pcs 2x3 HDMI Video Wall Controller, 1pcs IR Remote (batt-ery not included, 1pcs 5V/2.1A Power Adapter, and 1pcs User Manual. Plug-and-play, with fast heat dissipation and gold-plated connectors for stable transmission perfect for shopping malls, exhibitions, conference rooms, security monitoring, and large screen splicing displays.
