4K@60Hz HDMI Switch Audio Extractor with Optical + 3.5mm AUX + Coaxial Output, 4 in 1 Out HDMI Switcher Converter Support ARC, HDCP 2.2, HDR10, Dolby Visio, RGB 8:8:8(Dobly Atmos),EDID

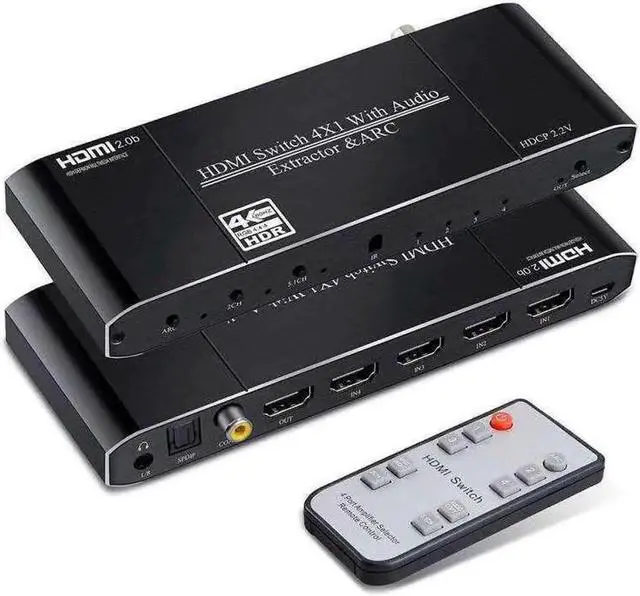

4 In 1 Out HDMI Switch with remote control

This HDMI switch supports HDR (

4:2: 0 YUV Format) 12-bit deep color, HDCP 1.4, HDMI

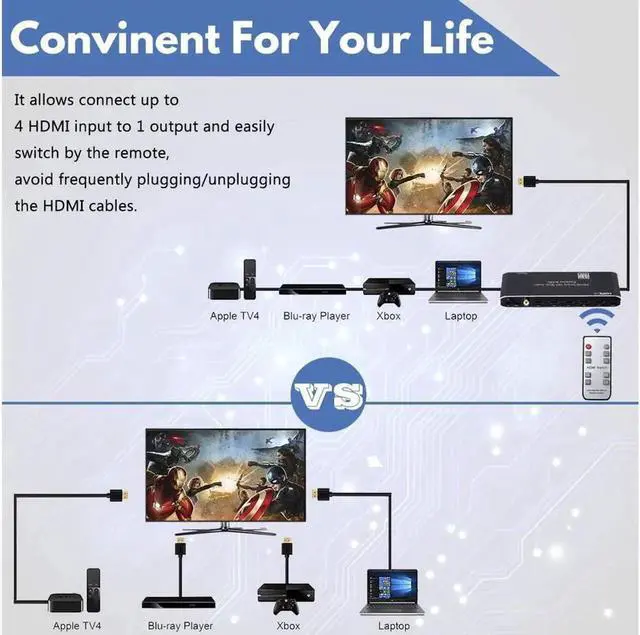

2.0 (YUV 4:2: 0), can easily select 4 HDMI sources that scale up to 4K@60Hz to a single HDMI output which your want to output. The HDMI Switcher support 12bit per channel (48bit all channels) Deep Color, Support ARC function.

Compliant with HDMI 2.0, HDCP 2.2 / 1.4 / 1.3 / 1.2 / 1.1 - Support 24/30/36 bit deep color per channel

Max bandwidth per channel: 300MHz.

Max baud rate per display: 10.2G bps

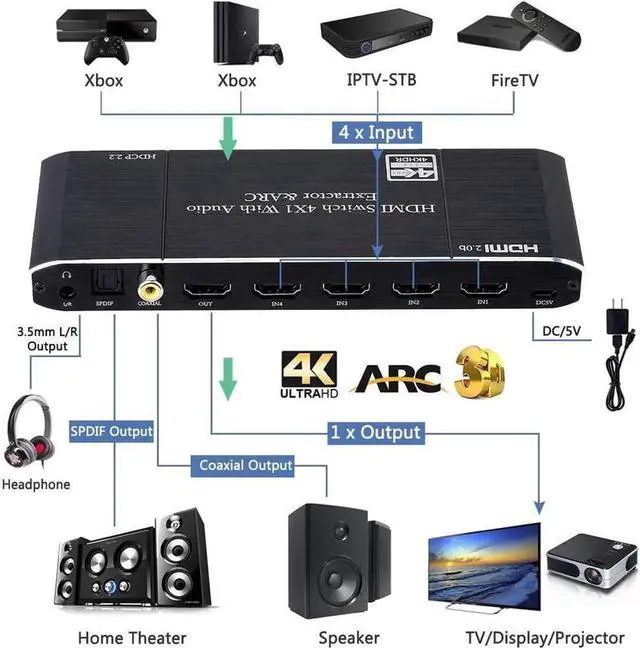

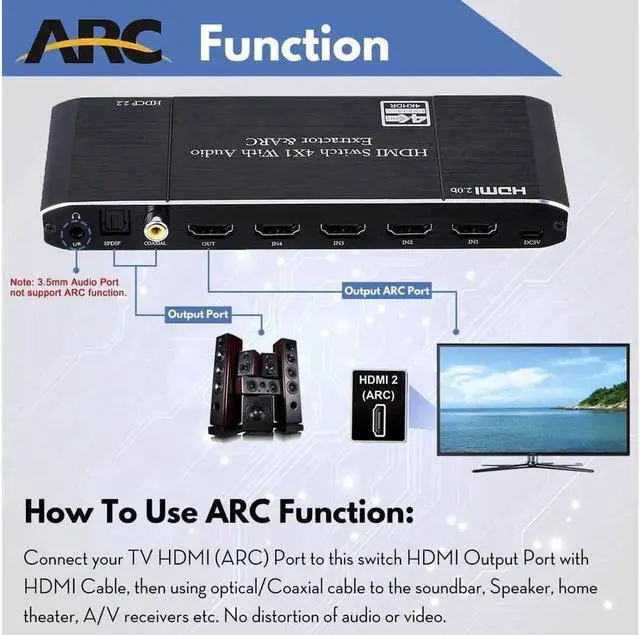

Coaxial and Toslink port output support ARC

3.5 mm Jack port output support audio extract function, it does not support ARC

Support 480i/ 480p/ 576i/ 576p/ 720p50/60Hz/ 1080p@50/60Hz/ 4kx2k@20/30Hz with 24 bit

RGB/ YcbcR 4:4: 4/ 4:2: 2 (4K@60HzYUV 4:2: 0)

This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60Hz;
