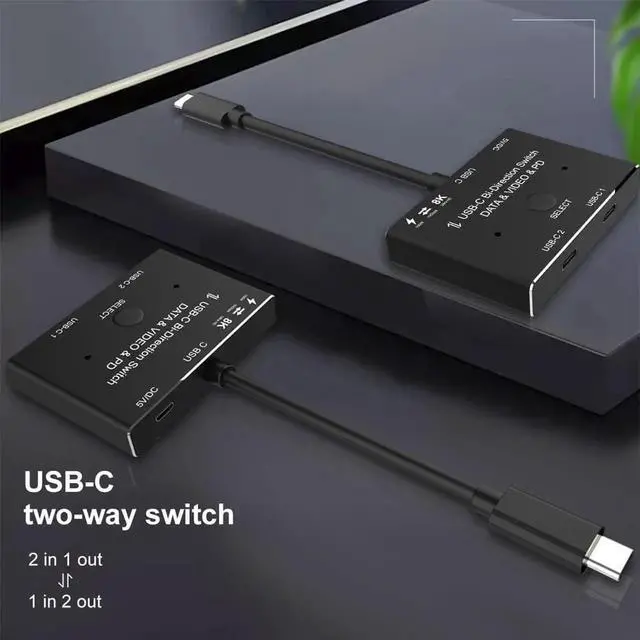

Function 1: 2IN 1Out
1. Connect two sources to the port "USB-C 1" and port "USB-C 2"
2. Connect the display from the Supplied and Fixed USB-C Cable on the switch.
3. Power the switch with the supplied USB to DC cable
4:Press"Select"Button to switch between two Sources
Function 2: 1In 2Out
1.Connect the source from the supplied and Fixed USB-C cable on the switch.
2. Connect two displays to the port "USB-C 1" and port "USB-C 2"(Note: two displays cannot work at the same time).In this connection,you can also connect USB-C to HDMI or Displayport Cable from the Switch to relatively Monitor.
3. Power the switch with the supplied USB to DC cable
4:Press"Select"Button to switch between two Displays

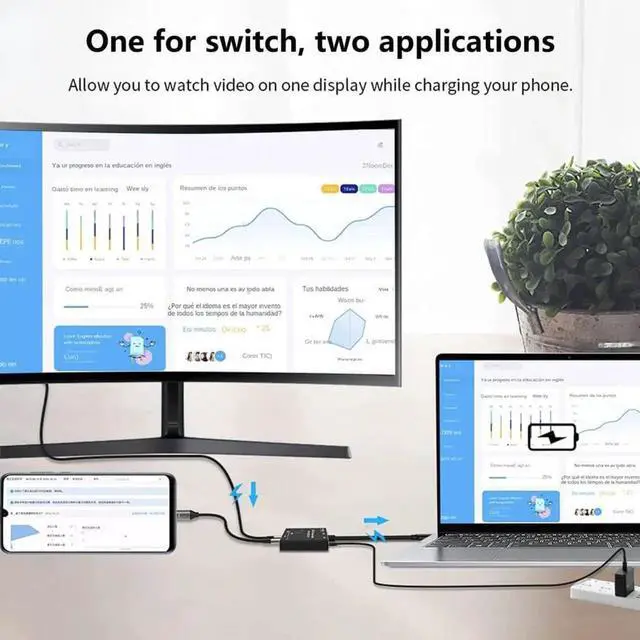

Function 3:Power Delivery&Data
1:Data Transfer,using USB3.1 Gen 2 Cable for Max 10Gbps data Transmissions from your Host devices to your data storage devices.

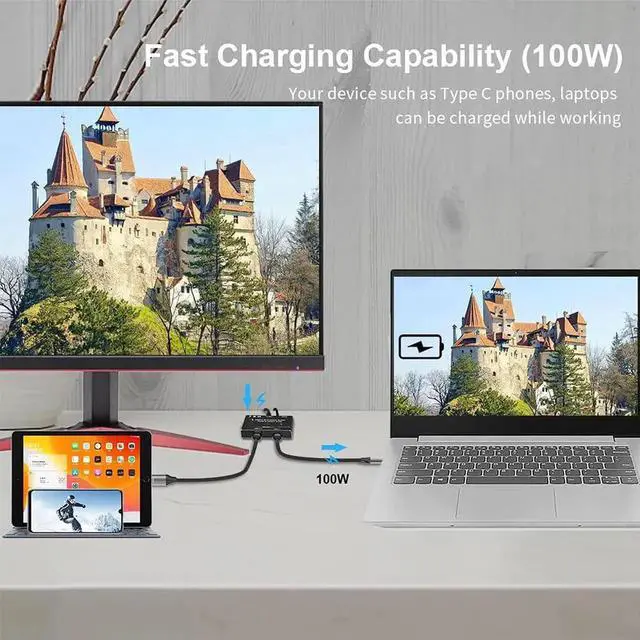

2:Max 100w Power Delivery for your relatively devices.
