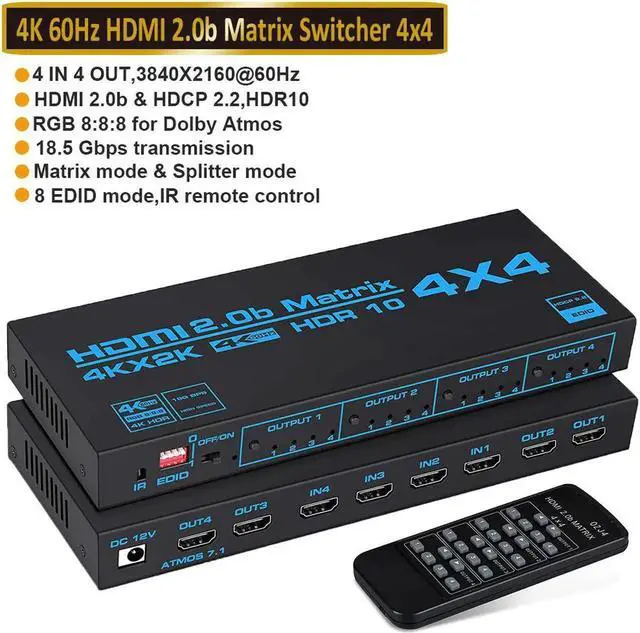

DIXSG HDMI Matrix Switch 4x4,AUBEAMTO 4K HDMI Matrix Switcher Splitter 4 in 4 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, YUV 4:4:4

4x4 HDMI-compatible Matrix Switch Splitter with SPDIF & L/R 3.5mm HDR HDMI-compatible Switch 4x2 Support HDCP 2.2 ARC 3D 4K@60Hz

1. HDMI Matrix 4x4: This 4 in 4 Out HDMI Matrix Switch can connect 4 HD signal sources to 4 HD display terminals. The matrix allows4HDMI devices to be switched or split easily to 4 HDMI compatible monitors or projectors. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, YUV 4:4:4, 4K HDR. This 4x4 HDMI Matrix Switch can also control by a IR remote control. After you had set the EDID, Please restart your HDMI Matrix Switch.
2. HDMI Video Format: 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4, YUV 4:4:4. Support 18Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24bit
3. EDID Management: EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.

Wide Compatibility: Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.

HDMI Matrix Switch 4x4

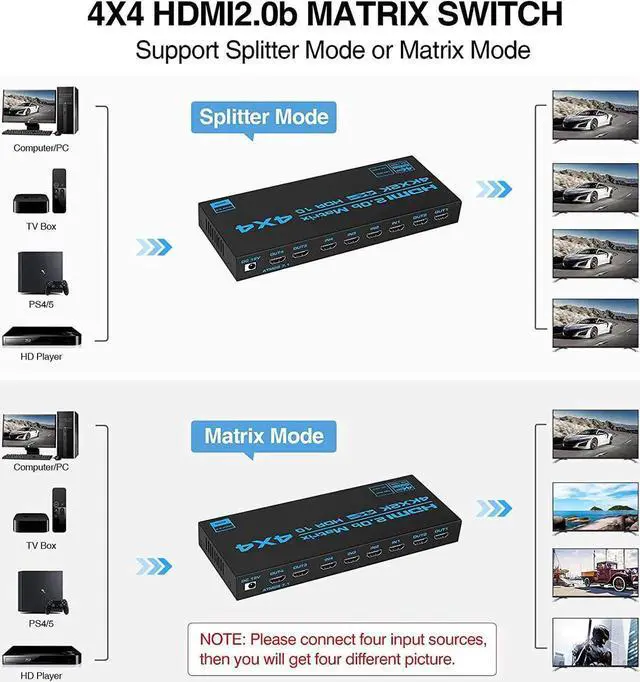

HDMI Matrix 4 in 4 out can connect 4 HD signal sources to 4 HD display terminals. The matrix allows 4HDMI devices to be switched or split easily to 4 HDMI compatible monitors or projectors.

Features

- Support HDMI 2.0b HDCP 2.2

- Support 3D video format

- Support highest resolution up to 3840*2160/60Hz YUV4:4:4

- Support 18Gbps data rate and tmds clock up to 600Mhz

- Support deep color 8/10/12/24bit

- Input and output cable distance: <8m AWG26 HDMI2.0b standard cable

Wide Compatibility

Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.

Package contents

1. 1x HDMI Matrix 4X4
2. 1x 12V power adapter
3. 1x IR Remote Control
4. 1x User Manual

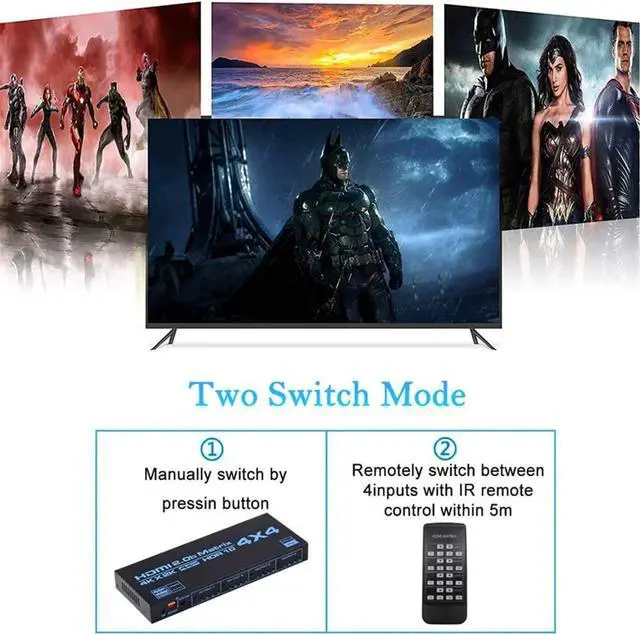

Two Switching Modes

Manual Switch - Simply choose whichever inputs you want with the button on the box.

Remote Control Switch - Effortlessly swap HDMI channels up to 15 ft with the remote.

Support 4K 60HZ & 3D

HDMI Resolution: 3D, Full HD, 4kx2k, up to 3840X2160/60Hz, RGB 4:4:4

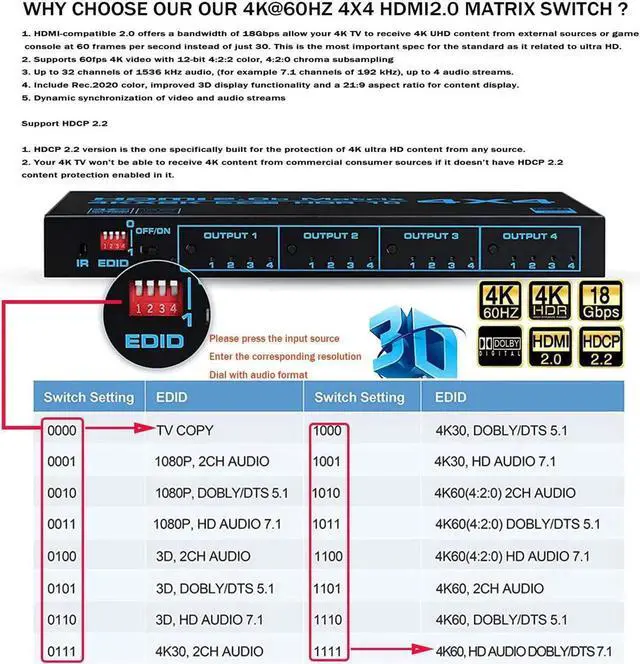

Settable EDID

EDID switch sets the video and audio mode of the HDMI source.

Flexible EDID switching provides 16 switching modes that can be met for different resolution needs.

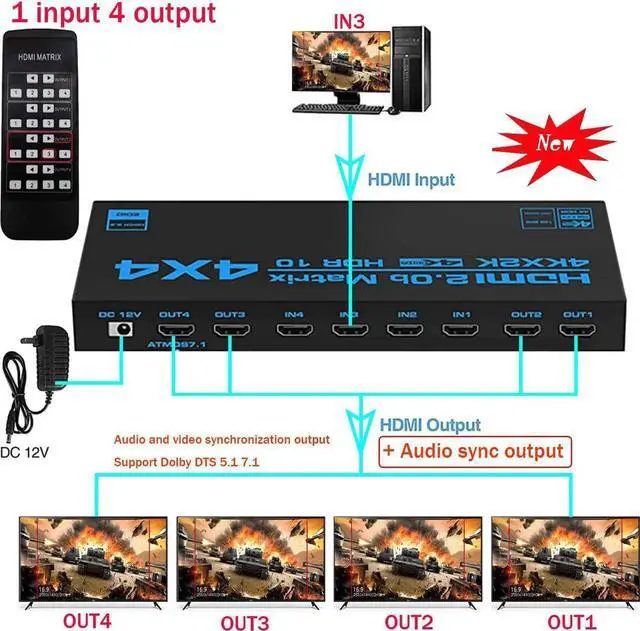

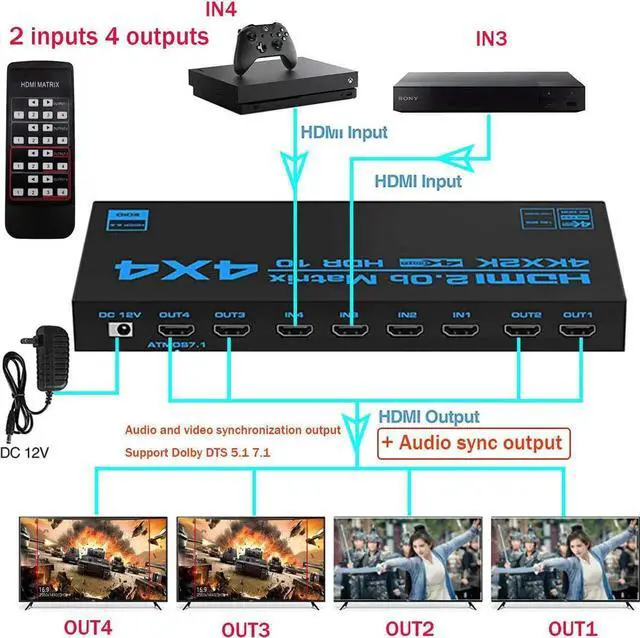

HDMI Matrix Switch 4x4 can connect 4 HD signal sources to 4 HD display terminals. It allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo headphone.

Support HDMI 2.0 b / HDCP 2.2

Support 3D video format

Support highest resolution up to 3840*2160/60Hz YUV 4:4: 4

Support 18Gbps data rate and tmds clock up to 600Mhz

Support deep color 8/ 10/ 12 bit

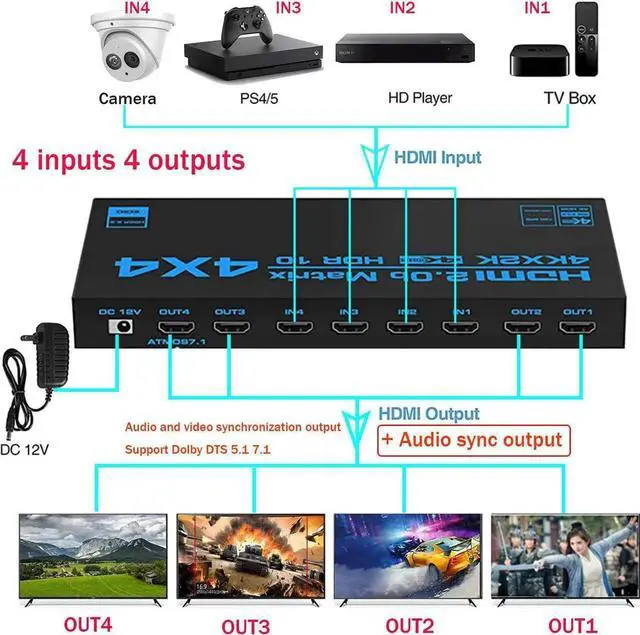

4 HDMI inputs switch and split to 4 HDMI displays
