16x32 HDMI Matrix Switch 4K@30Hz Web GUI,Rack Mount HDMI Matrix 16x32 with Rs-232, LAN Port, EDID, HDCP, IR, Backlit Crystal Button,DTS-HD Main Audio Transmission(16 In/32 Out Matrix )

EDID MANAGEMENT: HDMI Matrix 16x32 Supports Setting Scene Management, With built-in pre-plan Management that can set 32 Scenes And Realizes one-key Calling and Switching Support full-color LCD Screen and radio and Television Grade Crystal visual Buttons, Supports real-time Display of Equipment information, Fast Switching of input and output Signals, call and save of pre-plans, etc.
Wide Use Scenarios: 16x32 HDMI Matrix 4k can be used in Broadcast TV Projects, Nightclubs, Sports clubs, Gymnastics clubs, Multimedia Conference halls, Large-screen display projects, TV education, Command and Control centers, Restaurants, Nightclubs, Bars, Casinos, Hotels, Widely used Places such as home theater. Meet various Business needs and home use needs

UHD Series 4K HDMI Matrix Overview
1: 4 k HDMI Ultra-HD-Definition Matrix Is A Professionally Designed Ultra-HD-Resolution HDMI Digital Signal Switching Device, Which Can Arbitrarily Distribute Multiple Input HDMI Signals To Multiple Display Terminals

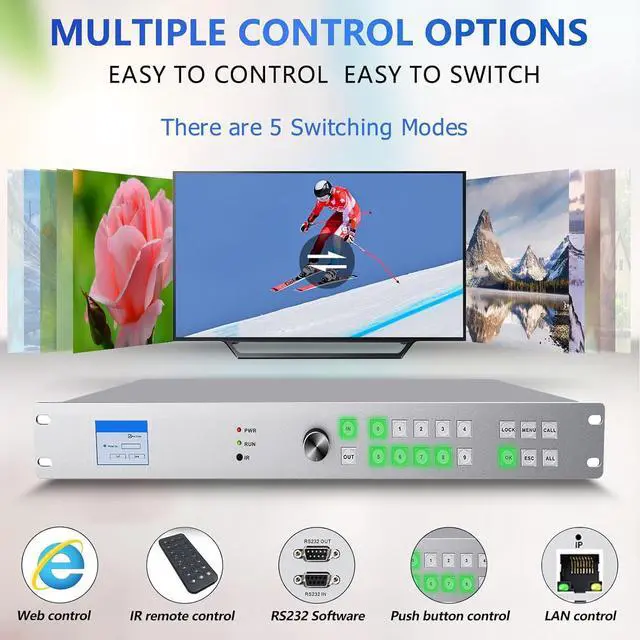

2: Support HDMI 1.4 a Standard, EDID Management; Resolution Up To 4K@30Hz, 1080P@120Hz. The Whole Machine Adopts An Integrated Structure, Supporting Multiple Control Methods Such As Computers, Mobile Phones, Tablets, Buttons, Remote Control, Serial Ports, Rs232, And Web Gui

3: Widely Used In Radio And Television Projects, Nightclubs, Sports Clubs, Gymnastics Clubs, Multimedia Conference Halls, Large-Screen Display Projects, TV Teaching, Command And Control Centers, Restaurants, Nightclubs, Bars, Casinos, Hotels, And Even Your Theater Room, Etc. A Commercial Or Domestic Place, To Bring You Convenience.

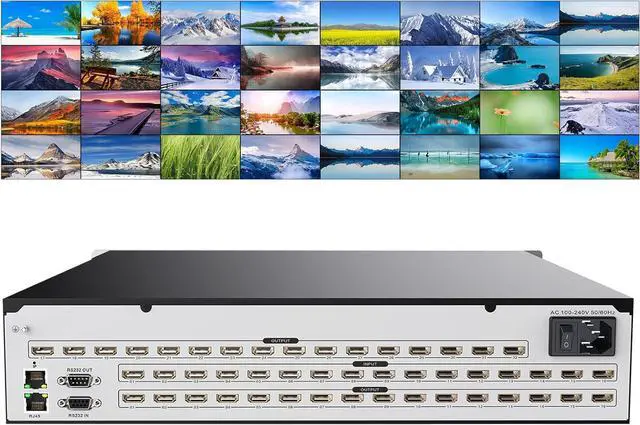

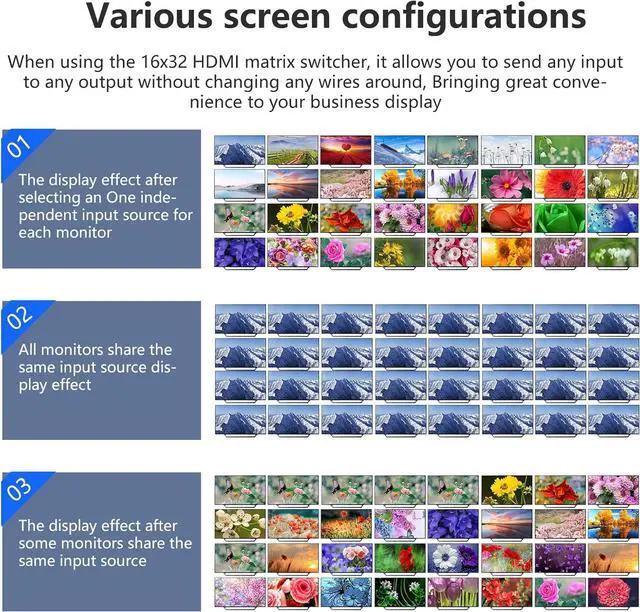

HDMI Matrix Switch Support Different device input and Multiple Screen Simultaneous output at the same time
HDMI Matrix Product Features
Full Hardware Architecture, No CPU and Operating System.
All Inputs Support HDCP Decryption, Blu-ray, And 3D.
Support 4k Ultra-HD-Definition Input And Output, The Device Supports HDMI 1.4 a Standard, Each
Channel Supports: 4Kx2K@30Hz, 1080P@120Hz, 1080P 3D
Support Embedded Audio, Support LPCM 7.1CH, Dolby True HD, Dolby Digital, And DTS-HD Master Audio Transmission, And Support Synchronous Switching of Audio And Video Signals.
ESD electrostatic Protection Design Is Adopted, Which Can Withstand The Human Body Discharge Mode: ±8kv (Air Gap Discharge), ±4kv (Contact Discharge), Effectively Avoiding The Interference And Damage of Static Electricity To The Equipment.
Support Full-Color LCD Screen and Radio and Television Grade Crystal Visual Buttons, Support Real-Time Display of Equipment Information, Fast Switching of Input And Output Signals, Call and Save of Pre-Plans, And Other Functions.
Support Setting Scene Management, Built-In Plan Management That Can Set 32 Scenes, And Realize One-key Call Switching.
Support Power-off Memory Function, With Power-off Site Protection, And The Incoming Call Will Automatically Restore The State Before Shutdown

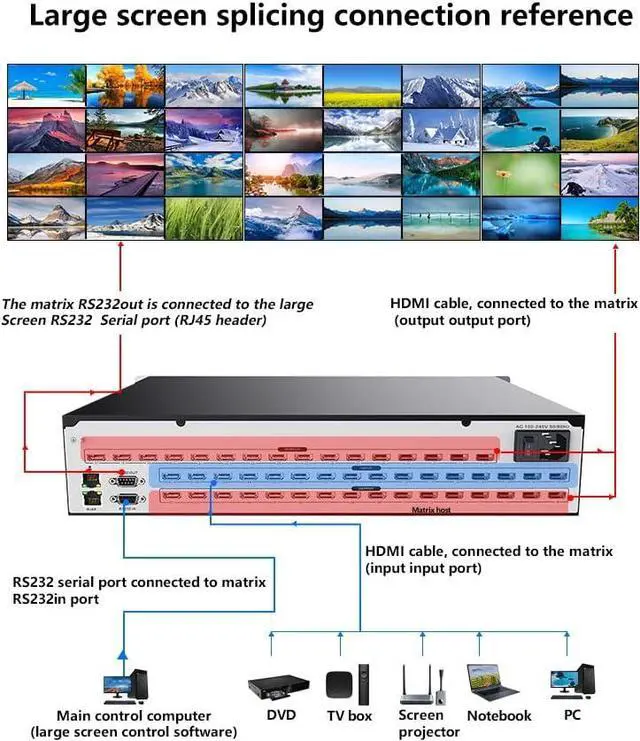

It Can Support 2 Serial Port Access Controls at The Same Time, For Example, The Central Control Serial Port and The Computer Serial Port Can Be Connected To The Matrix at The Same Time for Switching Control.

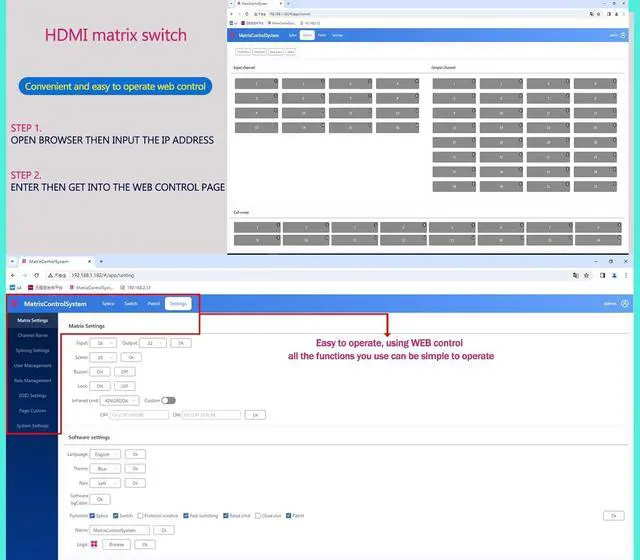

Support WEB Control/Support Cross-Platform Control, No Need To Install Any Client Software, Support WEB Page Login Control, Support Large Screen Power on and off, Splicing/Single Screen Switching Control, Support Splicing Screen Scene Linkage Switching. WEB Control Supports Switching Feedback, Viewing Matrix Channel Status; Supports Custom Modification of Software Logo And Name.
