MT-VIKI 16x16 HDMI Matrix Switch 4K@30Hz, Rack Mount Switcher & Splitter 16 in 16 Out, Backlit RS232 LAN Port and EDID (Built-in US ADI Chip)
Limited time offer, ends 01/09 By EnYZME

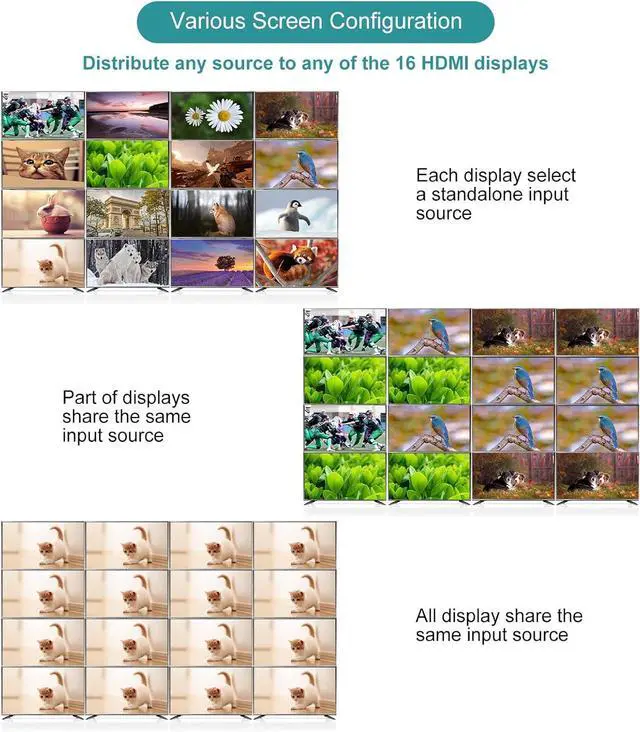

- HDMI Matrix 16x16 Connect up to 16 different HDMI sources to the matrix and independently route your video feed to any of the 16 different HDMI displays you can connect. Works as mixed switch and splitter, like 2 in 8out...16 out, 16 in 2 out...16 out, 4x4, 6x2, 8x8, 8x16, 16x16.
- Support UHD 4K@30Hz ResolutionEnjoy ultra high definition video with this hdmi matrix which supports resolutions of up to 4K@30Hz, 1080p@60Hz, and lower. This matrix 16x16 is HDCP 1.4 compliant and also supports HD audio including PCM, Dolby Digital, and DTS formats.

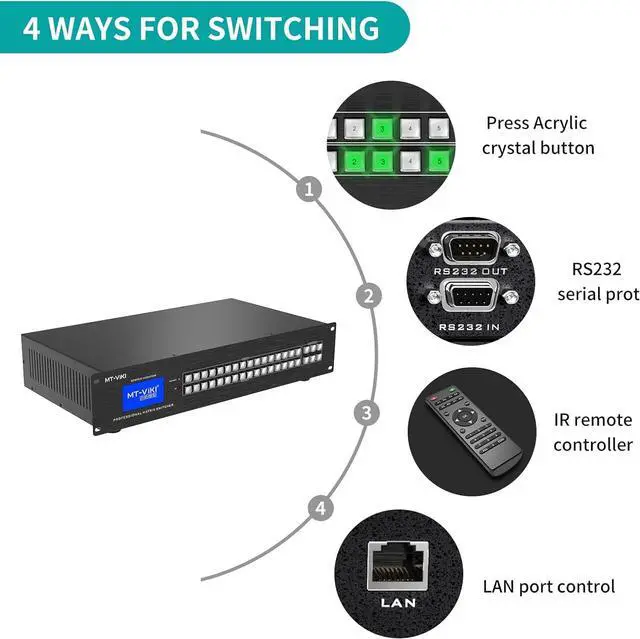

- Multiple Way to ControlChange your inputs and outputs in a variety of ways. Control your source and display routing via Acrylic crystal button, IR remote, RS-232 and LAN port. Support Local LAN control & RS232 control by MatrixController tool (CD driver included)
- EDID Copy Mode & Presets AvailableCopy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings within the matrix using the
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

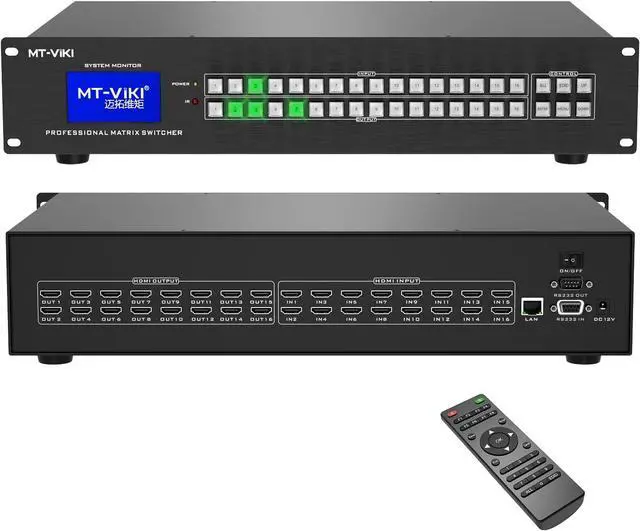

16x16 HDMI Matrix Switch, MT-VIKI HD1616

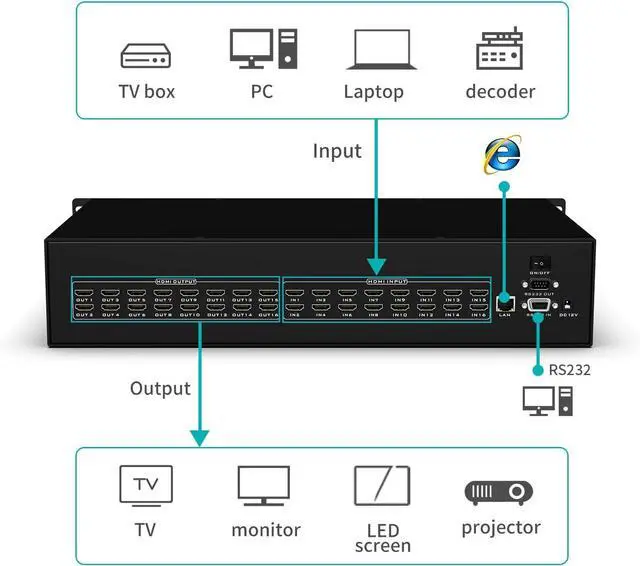

This 16X16 hdmi matrix is a high-performance professional switching device with embedded intelligent control, it can input 16 HDMI sources and output to 16 HDMI TVs, with RS232 in/out, LED digital display, and LAN port control.

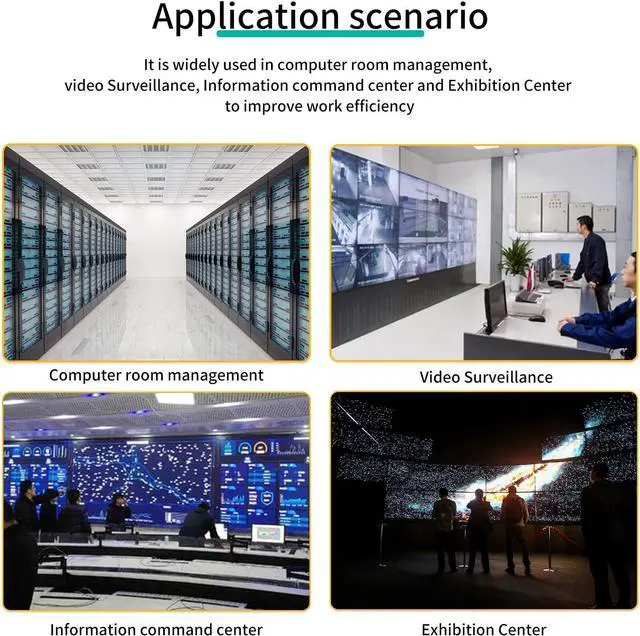

It can be widely applied in radio and television projects, nightclub, sportsclub, Gymclub, multimedia conference halls, large screen display projects, television teaching, command and control centers and other places. It's ideal for video wall display or servers.
Feature:
Support maximum resolution: 4K x 2K @ 30Hz, 1080P @ 60Hz, 3D. Supports HDCP decoding, Blu-ray, 3D. Support EDID management, Automatic Identification high-quality output.
Modular design, Support hot-plug, plug and play, stable and reliable system
Using the original 12.75G high-bandwidth imported switching chip from the United States
Support Save and Recall of scene Modes, can save/recall up to 16 modes and automatically restore previous matrix status after next power on. Also support OTO mode (one the one connection).
uilt-with Acrylic crystal button and LED backlit
Two button switch quickly
Menu screen for clear operations
Specification:
HDMI Input Ports: 16
HDMI Output Ports: 16
Fully compliant with HDMI 1.4 and HDCP 1.4 protocols
Fits for standard 2U 19-inch Cabinet/Rack.
This 16X16 hdmi matrix is a high-performance professional switching device with embedded intelligent control, it can input 16 HDMI sources and output to 16 HDMI TVs, with RS232 in/out, LED digital display, and LAN port control.
It can be widely applied in radio and television projects, nightclub, sportsclub, Gymclub, multimedia conference halls, large screen display projects, television teaching, command and control centers and other places. It's ideal for video wall display or servers.
Feature:
Support maximum resolution: 4K x 2K @ 30Hz, 1080P @ 60Hz, 3D. Supports HDCP decoding, Blu-ray, 3D. Support EDID management, Automatic Identification high-quality output.
Modular design, Support hot-plug, plug and play, stable and reliable system
Using the original 12.75G high-bandwidth imported switching chip from the United States
Support Save and Recall of scene Modes, can save/recall up to 16 modes and automatically restore previous matrix status after next power on. Also support OTO mode (one the one connection).
uilt-with Acrylic crystal button and LED backlit
Two button switch quickly
Menu screen for clear operations
Specification:
HDMI Input Ports: 16
HDMI Output Ports: 16
Fully compliant with HDMI 1.4 and HDCP 1.4 protocols
Fits for standard 2U 19-inch Cabinet/Rack.
