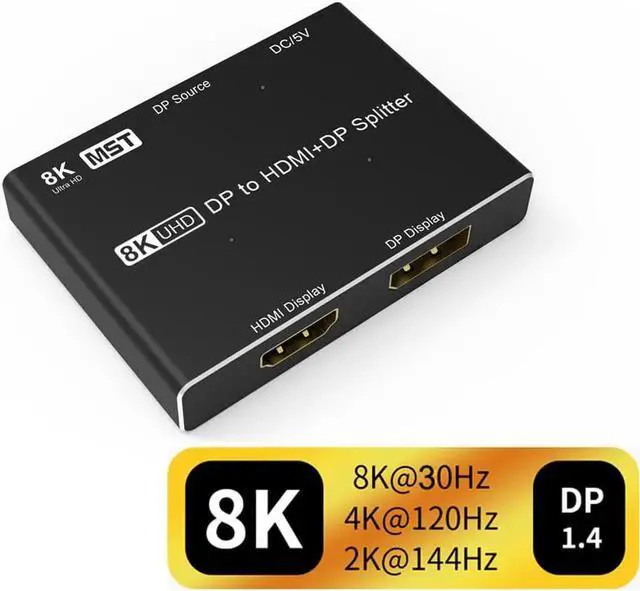

DisplayPort 1.4 Splitter Switch 8K, DP to DP+HDMI Switcher 8K@30Hz DP Splitter 1 in 2 Out 4K@120Hz 2K@144Hz Directional for PC Host Monitor Laptop etc

DisplayPort HDMI Splitter 8K MST SST 1In 2Out Directional DP 1.4 8K@30Hz 4K@120Hz to DisplayPort HDMI 2.1 1440P@165Hz Directional Converter Switch Multi Screen Transfer

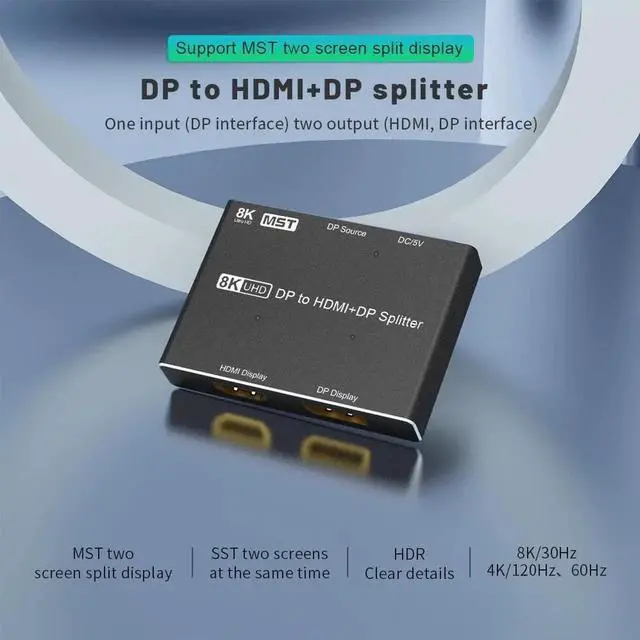

This new 8K DP to HDMI+DP splitter, compared with other 8K DP splitters on the market, this splitter supports two screens connected to display at the same time (no need to switch), when you connect two (HDMI+ DP)Monitors, It supports two working modes.

Product Description:

Compatible with all DisplayPort input and HDMI, DisplayPort output

Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications

Support resolution:

8K@30Hz

4K@120Hz, 60Hz

1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)

1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output Not supported)

(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)

Support operating system: Apple (iOS) system, Windows system, Android system

Support HDR

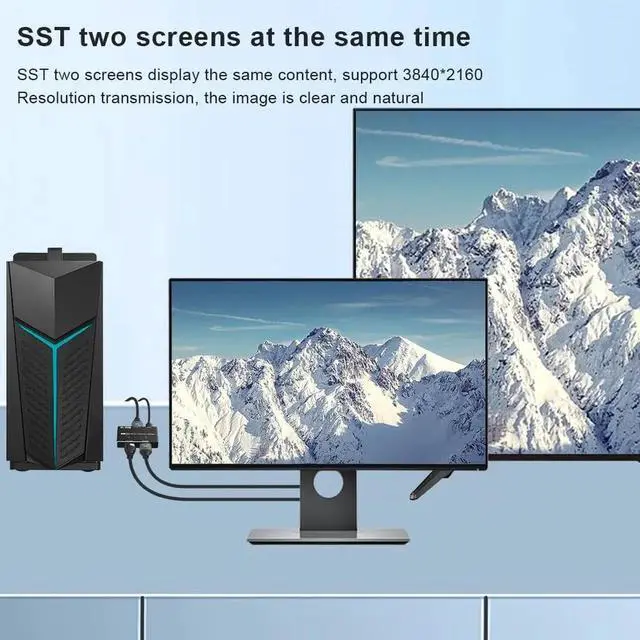

Support SST (Mirror) and MST (Extended) mode

Support 4:4:4, 4:2:2, 4:2:0

Remarks:

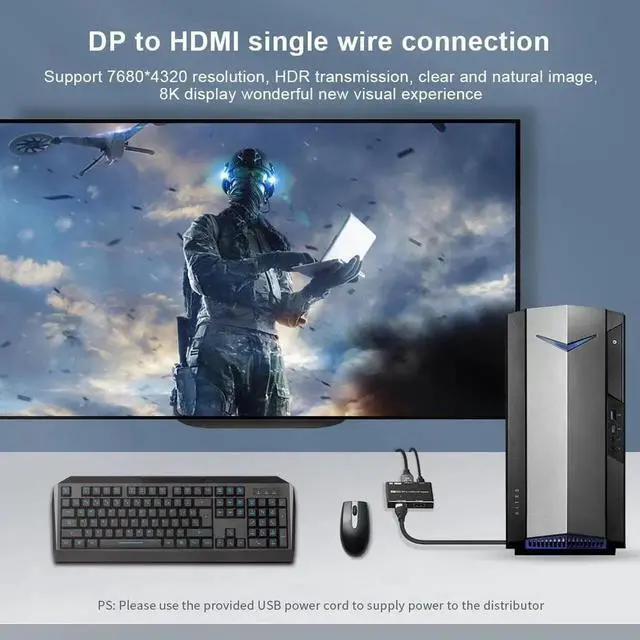

1. An external power supply is required: When using, please use the provided USB power cord to power the switch

2. Note that the output of HDMI or DP single port in MST extended mode can reach 8K when used alone,

The output of 2 ports can only reach 4K at the same time

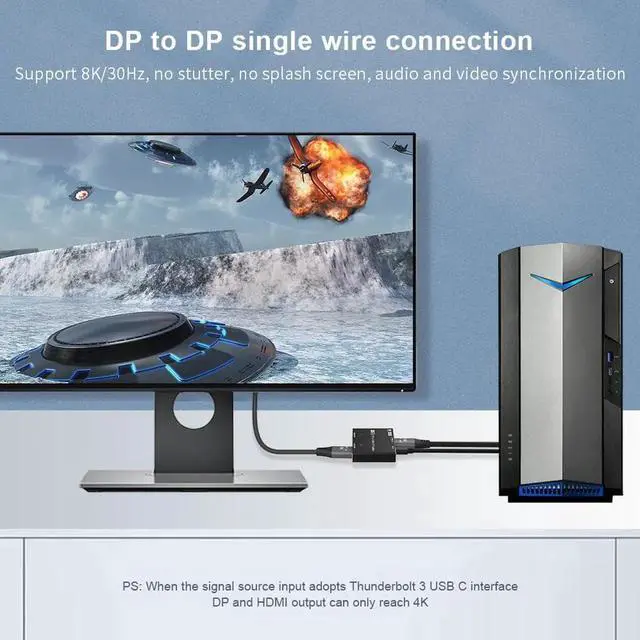

3. When the Thunderbolt 3 USB C interface is used as the signal source input, the DP and HDMI output can only reach 4K

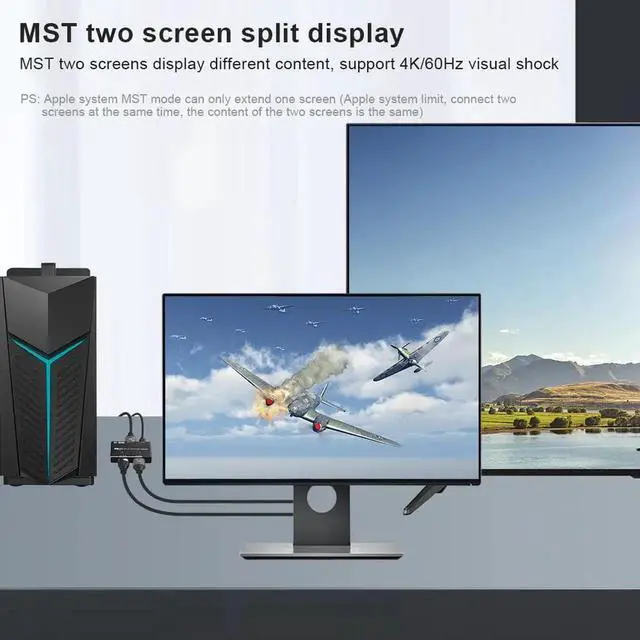

4. Apple system MST mode can only extend one screen (Apple system limit, connect two at the same time

Screen, the content of the two screens is the same)

Package list:

1 x D P to D P + H D M I distributor host

1 x U S B A t o U S B M i c r o B power supply line

1 x User Manual

This new 8K DP to HDMI+DP splitter, compared with other 8K DP splitters on the market, this splitter supports two screens connected to display at the same time (no need to switch), when you connect two (HDMI+ DP)Monitors, It supports two working modes.

Product Description:

Compatible with all DisplayPort input and HDMI, DisplayPort output

Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications

Support resolution:

8K@30Hz

4K@120Hz, 60Hz

1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)

1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output Not supported)

(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)

Support operating system: Apple (iOS) system, Windows system, Android system

Support HDR

Support SST (Mirror) and MST (Extended) mode

Support 4:4: 4, 4:2: 2, 4:2: 0
