4X2 Matrix HDMI-compatible HD 4X2 Martrix toslink audio ARC 2.0 HDMI-compatible Matrix Switch Splitter HDMI 4 in 2 out switch with EDID Extractor and Remote Control (OZJ2)

HDMI 2.0b and HDCP 2.2,4K@60Hz HDMI Matrix switch 4x2 with ARC,HIFI,HDR10,1x3.5mm Jack,1xSPDIF Audio,1xCoaxial Audio ,RGB 4:4:4/8:8:8(Dolby ATMOS) and 8 kinds of EDID mode.

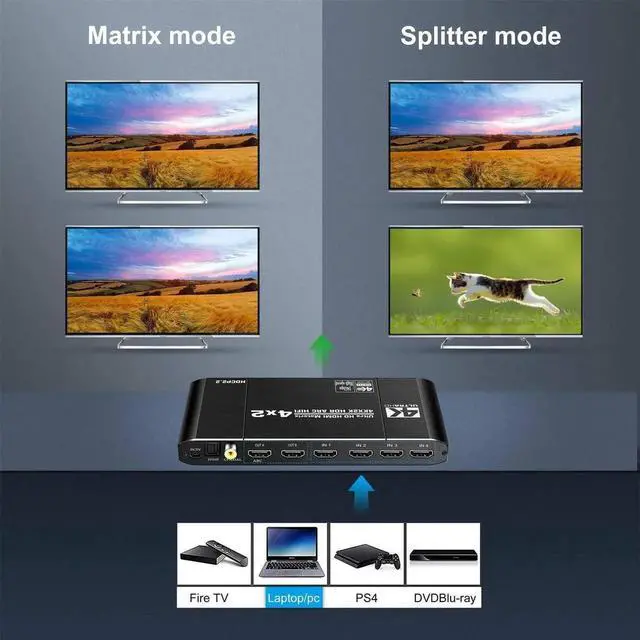

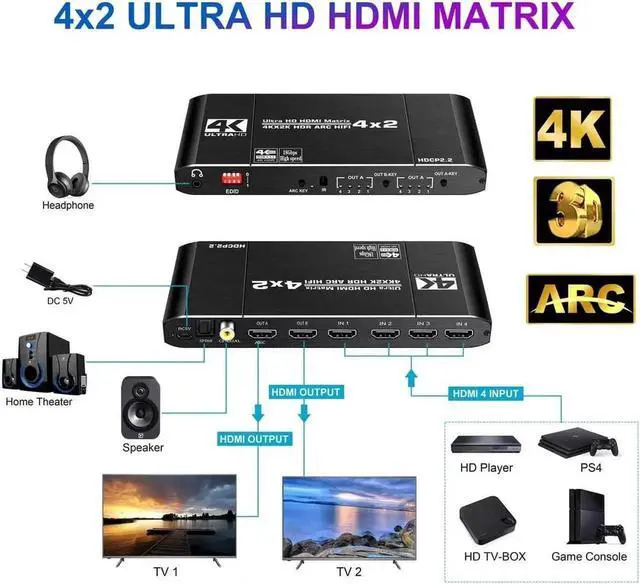

4K HDMI Matrix 4 In 2 Out Matrix Switch: 4x2 HDMI Matrix routes four HDMI sources to two HDMI displays at the same time. It Combines the functions of HDMI splitter, switch, 4 HDMI Inputs switch or split to two HD Displays. It can display same or different image on your television .

4K@60Hz ULTRA HD RESOLUTION: It supports up to 4K2K 60Hz YCbCr 4:4:4 and HDCP2.2 resolution(Downward Compatible) , Support HDMI V2.0 and HDR . Support 2.0/ 5.1/ ADV three kinds of audio mode options / Supports ARC ,TV audio will return and out by the Optical Port;(Note: only the OUT A port supports ARC function) /Supports HDMI audio separation, can output by optical and 3.5mm jack at the same time .

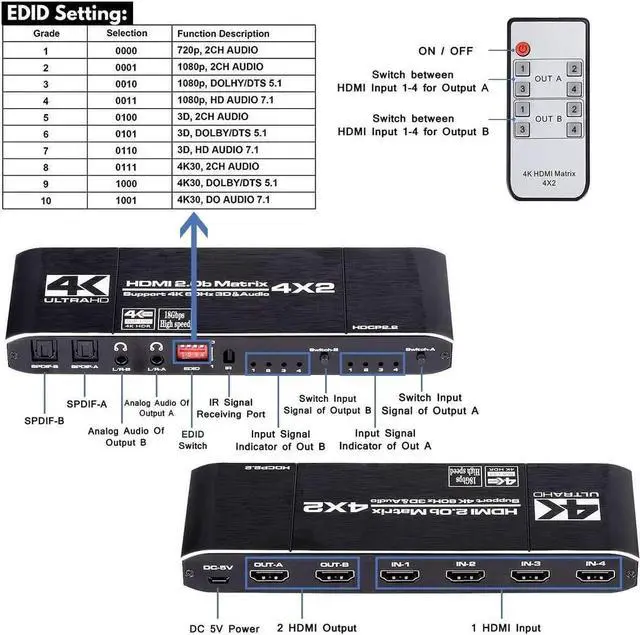

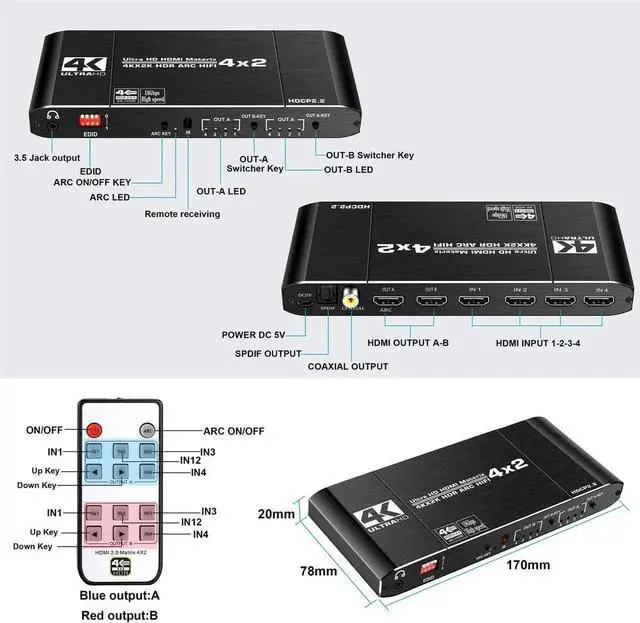

Easy to Operate: Inputs can be switched with the IR remote control, also can be controlled by two switch buttons. (The LED indicator clearly shows the current input source of the device you are using, and displays the operating status of the device in real time. The product package is equipped with the latest infrared wireless remote control ).

Widely Compatible: With EDID management, make it compatible with most of the HDMI source and sink devices. This 4x2 HDMI Matix Switch compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360,PS3, Beamer,DVB Receivers, Blu-ray Player, Laptop and HDTV/HD Monitor etc. It Supports LPCM 7.1,Dolby digital, DTS, DTS-HD, DSD and Dolby True HD Audio.

The HDMI 2.0 matrix 4x2 simultaneously transmits four HDMII sources to two HDMI displays. It combines HDMI splitter, switcher, 4 HDMI input switching or separation functions to two HD displays. It can display the same or different images on your TV.

4K@60Hz Ultra HD Resolution - It supports up to 4K2K 60Hz YCbCr 4:4 and HDCP 2.2 resolution (backward compatible), and supports HDMI V 2.0 and HDR. Support 2.0 / 5.1 /ADV three audio mode options/support ARC, TV audio will be returned and output through the optical port;

Features

Support HDMI 2.0 b HDCP 2.2

Support 3D video format

Support highest resolution up to 3840*2160/60Hz

Support 18.5G bps 3 data rate and tmds clock up to 600Mhz

Support deep color 8/10/12/24/32/48bit

Support HDMI audio outputs, 3.5 mm earphone jack and optical output at same time

HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4: 4

4 HDMI inputs switch and split to 2 HDMI displays

Support LPCM/Dolby/DTS 5 1 audio
