4K@60Hz 4x2 HDMI Matrix Switch, HDMI 2.0b Matrix Switch 4 in 2 Out, 4K HDMI Switcher Splitter + Optical and L/R Audio Output, Scaler EDID with Remote, HDCP2.2, HDR 10

4x2 HDMI Martrix Switch

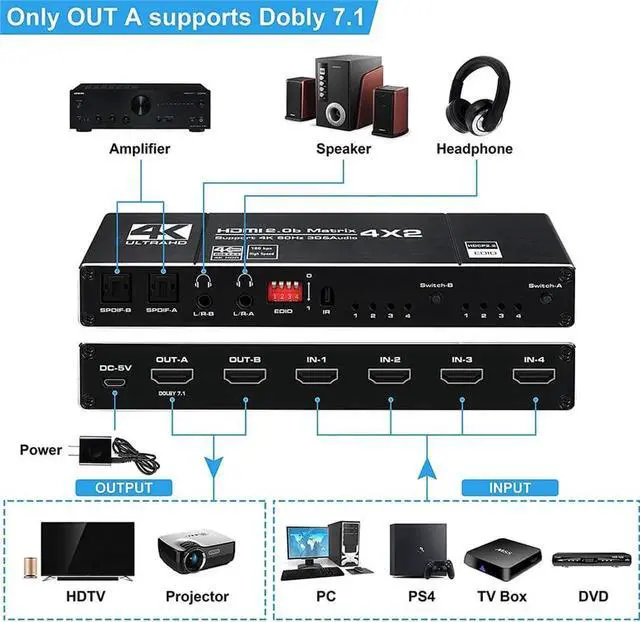

The 4 in 2 out HDMI matrix switch allows four HDMI devices to be easily switched or split into two HDMI compatible monitors or projectors. The device is also expanded with 2 3.55mmL/ Raudio output ports and 2 optical audio outputs Port (we give two optical audio cables, you don't need to purchase additional optical audio cables). Suitable for home theaters, villas, conference rooms, shopping centers, TV walls, schools and corporate training environments, etc.

FEATURE:

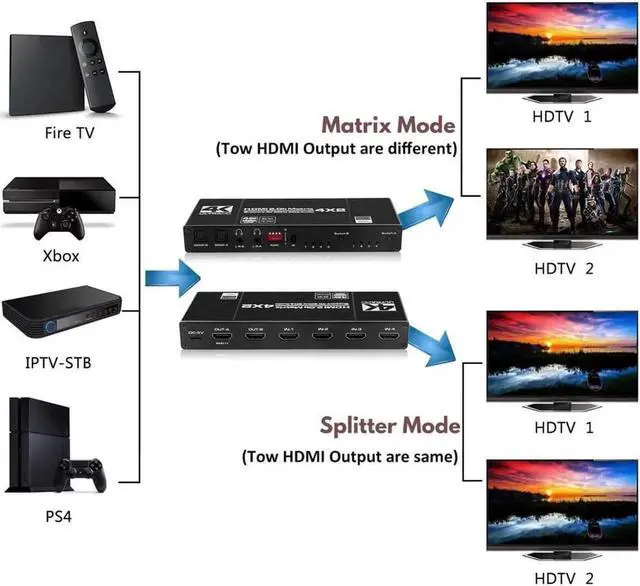

4 IN 2 OUT matrix: The 4x2 HDMI matrix can connect four HDMI signal sources to two monitor screens. It can easily switch and distribute the signal sources. It can also use Toslink SPDIF optical fiber or 3.5mm stereo headphone output Extract HDMI input audio signal. With infrared remote control and two optical fiber audio cables, it is suitable for various entertainment and work occasions.

1. 4K@60Hz Ultra HD Resolution: Excellent video quality, resolution up to 4K@60HZ, RGB4:4:4, 3D, backward compatible with multiple resolutions, support 18.5Gbps data rate, and tmds clock Up to 600Mhz. Support dark 8/10/12/24bit. When your device supports 4k@60Hz, you can get an ultra-high-definition picture quality experience, the image display is more delicate and lifelike, and the colors are brighter and moving.
2. HDMI Audio Extraction and EDID: Support LPCM / Dobly / DTS 5.1 channels and intelligent EDID management. With two 3.5mm L/R ports and two optical Toslink audio outputs, it supports HDMI audio output, while 3.5mm headphone jack and optical output.
3. Two switching modes: This device can switch between signal sources through the buttons on the panel or the infrared remote control. The button in the corresponding area can switch the signal source of the corresponding output interface, the operation is simple, and it brings more convenience to your use.

Widely compatible, easy to use: Support HDCP 2.2, compatible with HDMI 2.0b. Input support: PC, PS3, PS4 pro, PS5,Nintendo Switch, HD player, TV Box, Apple TV, etc. Output support: projector, HDTV, etc. It is suitable for home theaters, offices, schools, conference rooms, shopping centers, hotels and other office and entertainment venues.

Note:

EDID the dial switch to dial downward is 1, dial upward is 0.

1. The Remote Control instruction:

(1) The four buttons on OUT A is the corresponding input source IN1-IN4from OUT AJN1-IN4 can be switched freely.

(2) The four buttons on OUT B is the corresponding input source IN1-IN4 from OUT B, IN1-IN4 can be switched freely.

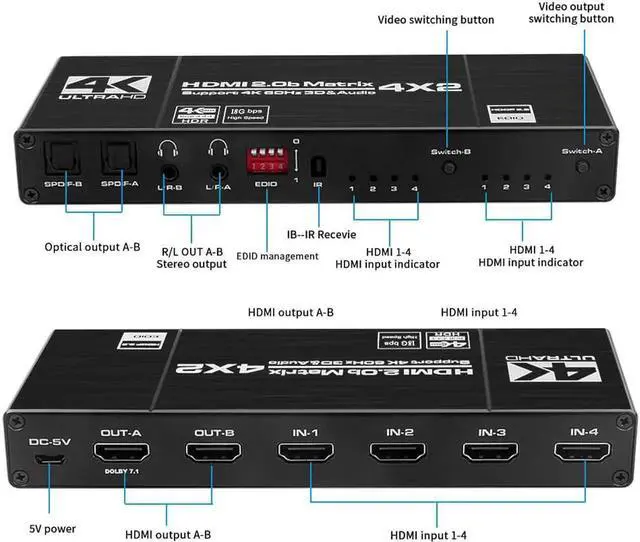

2. Instruction of Buttons and LED:

(1) Instruction of LED: W1-IN4 indicator is the corresponding input sources out from OUT A or OUT B,

(2) Operation of Buttons: SWITCH A or SWITCH B is used to switch the corresponding inpul source out from OUT A or OUT B.

HDMI Matrix 4x2: It can connect four 4K HDR signal sources to two HD display or monitor, and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5 mm stereo headphone output. It supports HDCP 2.2, HDMI 2.0 b, 4K@60HZ, RGB

4:4: 4, 4K HDR. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right. After you had set the EDID, Please restart your HDMI Matrix Switch.

HDMI Video Format: 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB

4:4: 4. Support 18.5G bps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit.

HDMI Audio Extract and Settable EDID: HDMI Matrix 4x2 with two 3.5 mm L/R port and two optical toslink audio output, support LPCM/Dolby/DTS 5.1 channel and smart EDID management.

Compatibility: Support HDCP 2.2, compatible with HDMI 2.0 b.

Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, etc.
