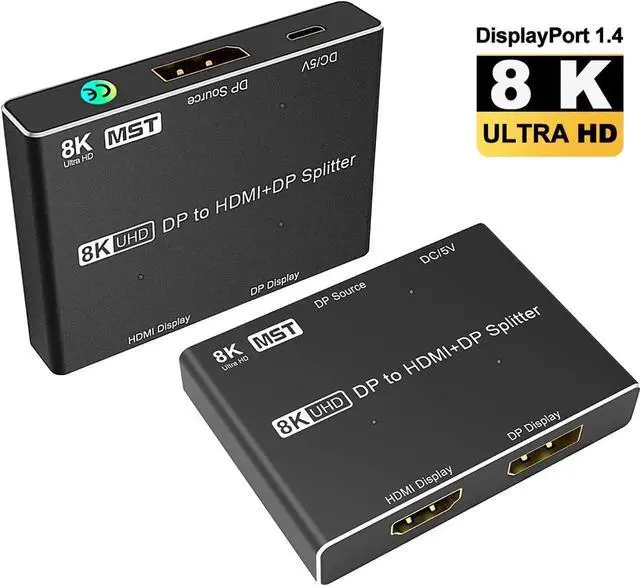

Displayport Switch 8K, Directional DP to DP+HDMI Switch 8K @ 30Hz, 4K @ 120Hz, Displayport Switcher 1 to 2 Out with LED Indicator for PC Host Monitor etc

DisplayPort HDMI Splitter 8K MST SST 1In 2Out Directional DP 1.4 8K@30Hz 4K@120Hz to DisplayPort HDMI 2.1 1440P@165Hz Directional Converter Switch Multi Screen Transfer

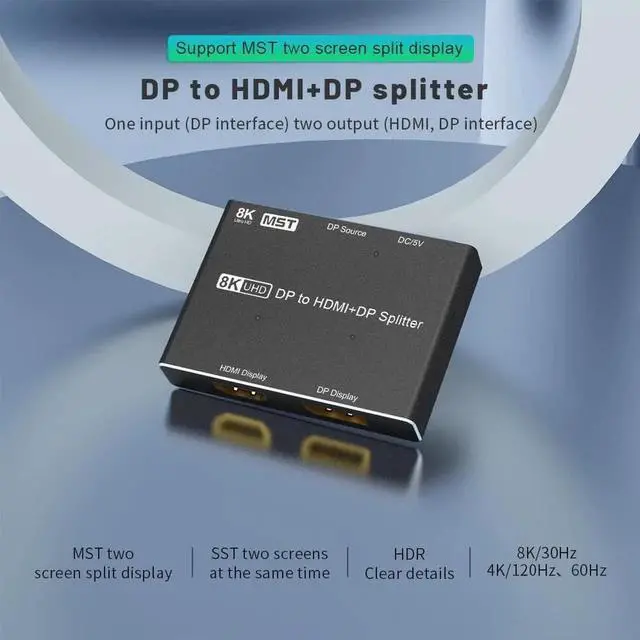

This new 8K DP to HDMI+DP splitter, compared with other 8K DP splitters on the market, this splitter supports two screens connected to display at the same time (no need to switch), when you connect two (HDMI+ DP)Monitors, It supports two working modes.

Product Description:

Compatible with all DisplayPort input and HDMI, DisplayPort output

Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications

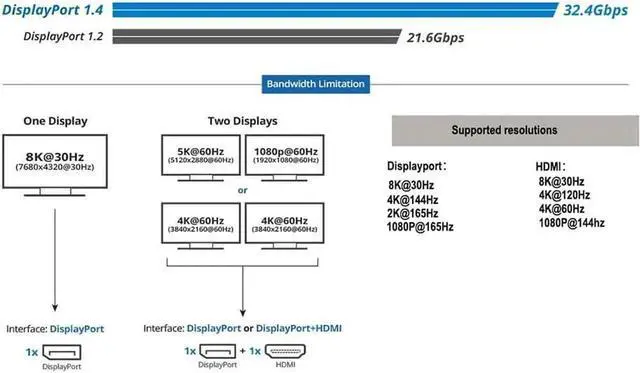

Support resolution:

8K@30Hz

4K@120Hz, 60Hz

1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)

1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output Not supported)

(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)

Support operating system: Apple (iOS) system, Windows system, Android system

Support HDR

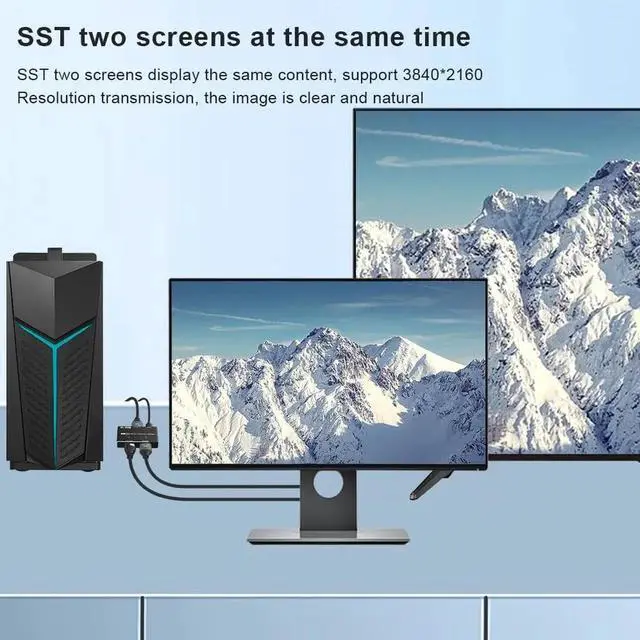

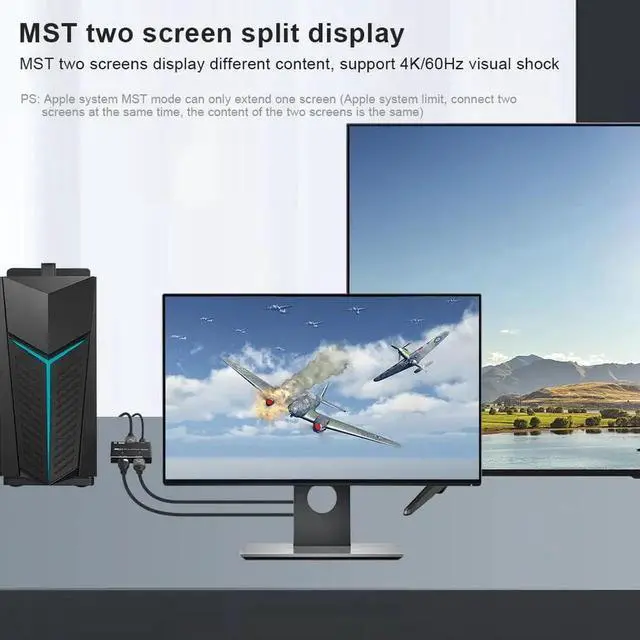

Support SST (Mirror) and MST (Extended) mode

Support 4:4:4, 4:2:2, 4:2:0

Remarks:

1. An external power supply is required: When using, please use the provided USB power cord to power the switch

2. Note that the output of HDMI or DP single port in MST extended mode can reach 8K when used alone,

The output of 2 ports can only reach 4K at the same time

3. When the Thunderbolt 3 USB C interface is used as the signal source input, the DP and HDMI output can only reach 4K

4. Apple system MST mode can only extend one screen (Apple system limit, connect two at the same time

Screen, the content of the two screens is the same)

Package list:

1 x D P to D P + H D M I distributor host

1 x U S B A t o U S B M i c r o B power supply line

1 x User Manual

FEATURES

1. Compatible with all DP inputs and HDMI-CompatibleDP outputs.

2. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications.

3.

Support Compatible resolution:

8K@30Hz 4K@120Hz60Hz 1440P@165Hz 144Hz120Hz60Hz(165hz, 144hz HDMI-Compatible output not supported)

1080P@240Hz 165Hz144Hz120Hz60Hz(165hz, 144hz HDMI-Compatible output not supported)

((Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI-Compatible cable support))

4.

Support operating system: IOS system, windows system, Android system

5. Support HDR

6. Support SST (mirror) and MST (Extended) mode

7.

Support 4:4: 4, 4:2: 2, 4:2: 0

SPECIFICATION

Input Port: 1 x DP Female, 1 x USB Micro B Female

Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female

Bandwidth: 32.4G bps

Operating Temperature: -15~55/5°F~131°F

Deep Color: 8bit/10bit/12bit

Chroma:

4:2: 0 / 4:2: 2 / 4:4: 4

Chassis: Aluminium alloy Shell

Dimension: 7.0 mm (L) x 51.7 mm (W) x 13.0 mm (H)

Weight: 83.0 g
