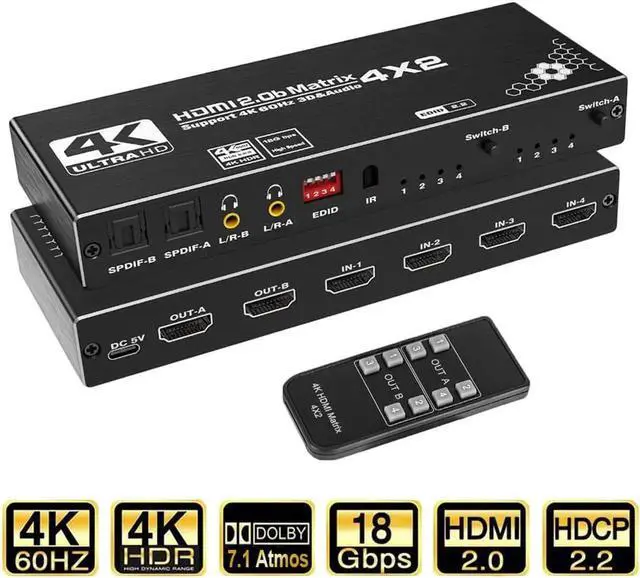

WISDUM HDMI Matrix 4x2,4K@60Hz HDMI Matrix Switch 4 in 2 Out with EDID Extractor and IR Remote Control, Support HDMI 2.0b, HDCP2.2, HDR10, Ultra HD, 3D
- HDMI Matrix 4x2

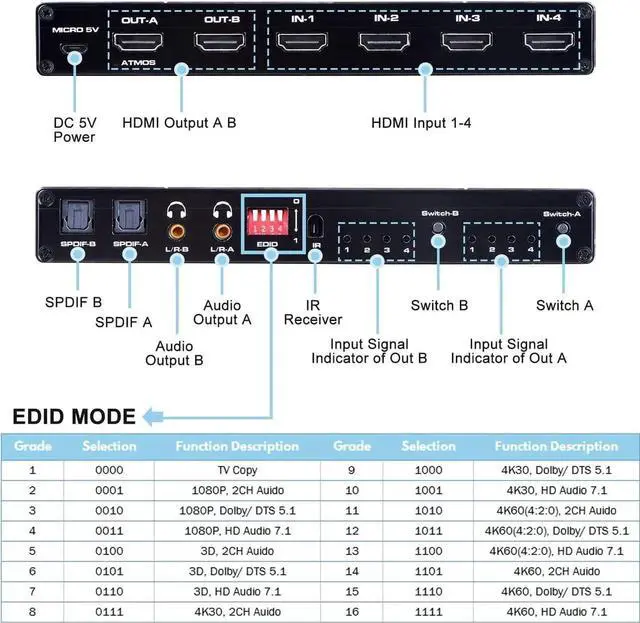

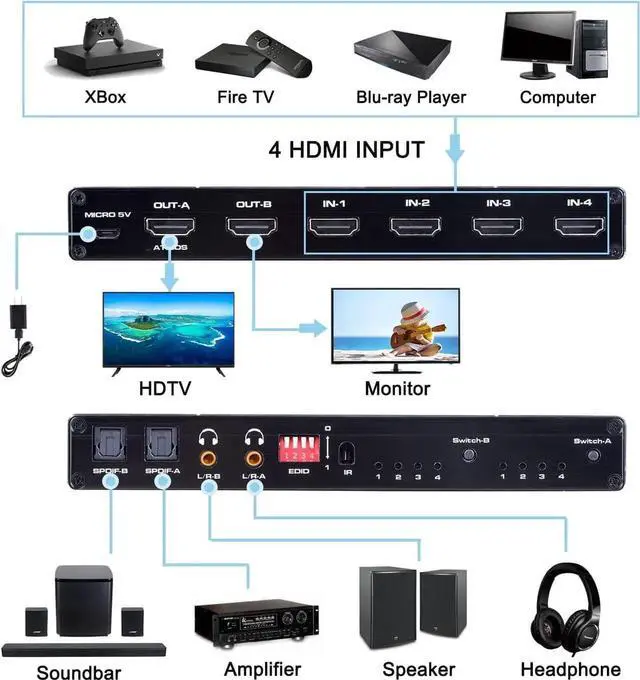

- HDMI Matrix Switch can connect four 4K HDR signal sources to two HD display or monitor,and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5mm stereo headphone output. It can also control by a IR remote control. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right. After you had set the EDID, Please restart your HDMI Matrix Switch.
- Specifications:
- HDMI-Compatible version: HDMI-Compatible 2.0b
- HDMI-Compatible resolution: 4096*2160/30Hz
- Support video format: 8/10/12 bit dark
- Support audio format: for DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Maximum bandwidth transmission: 320MHz
- Maximum transmission rate: 3.2Gbps
- HDMI-Compatible input ports: 4
- HDMI-Compatible output port: 2
- Maximum working current: 1000mA
- Power adapter specifications: input: AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Matrix 4x2: HDMI Matrix Switch can connect four 4K HDR signal sources to two HD display or monitor, and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5 mm stereo headphone output. It can also control by a IR remote control. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right. After you had set the EDID, Please restart your HDMI Matrix Switch.
Specifications
:
HDMI-Compatible version: HDMI-Compatible 2.0 b
HDMI-Compatible resolution: 4096*2160/30Hz
Support video format: 8/10/12 bit dark
Support audio format: for DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Maximum bandwidth transmission: 320MHz
Maximum transmission rate: 3.2G bps
Input cable length: (1080p resolution) 15m, (4K resolution) 12m AWG26 HDMI-Compatible standard cable
Output cable length: (1080p resolution) 25m, (4K resolution) 15m AWG26 HDMI-Compatible standard cable
HDMI-Compatible input ports: 4
HDMI-Compatible output port: 2
Maximum working current: 1000mA
Power adapter specifications:
input: AC (50HZ, 60HZ)
100V-240V; output: DC5V/2A
