MT-VIKI 4K HDMI Matrix Switch 8X8 w/Web GUI & 3.5mm Stereo Audio w/IR Remote, 4K@30Hz, Rack Mount Switcher & Splitter, EDID, RS232, LAN Port, APP

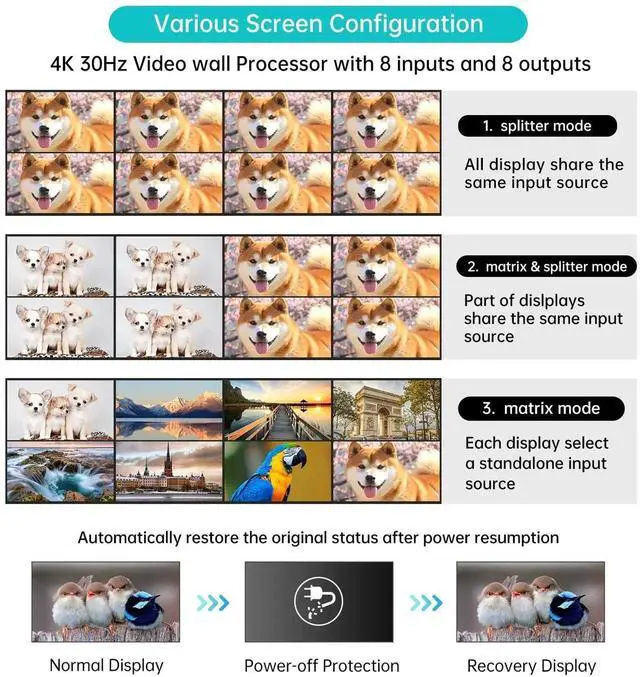

- MT-VIKI This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. Allow all outputs to mirror the same signal or independently route unique input signals to each display for a fully customized HDMI routing matrix.
- 4K Resolution: This hdmi matrix 8 in 8 out supports resolution up to 4K 3840*2160@30Hz, 8KV ESD protection. Support Local LAN control from other computer by installing MatrixController.
- 5 Control Ways: Button, IR remote control, RS232, LAN port or WEB GUI without delay. Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format. [NOTE]Please switch to OUT8 for 3.5mm audio extraction.
- Support cable length: Input and output cable transmission distance up to 10 meters. For stable transmission quality, pls use high-quality HDMI 1.4 Cable.

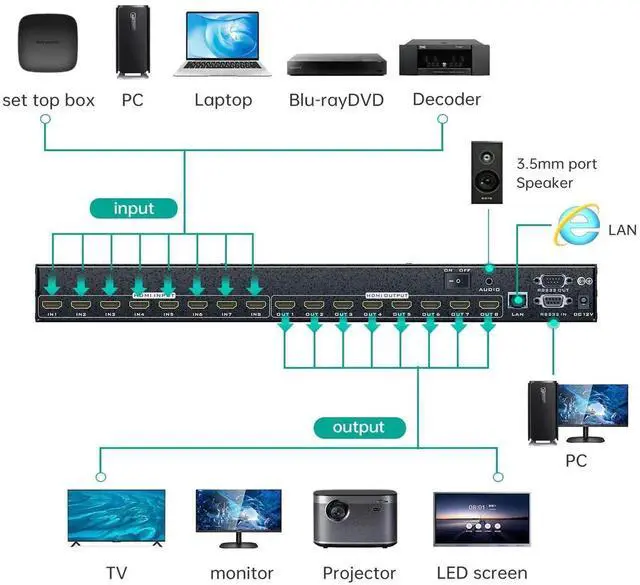

- How to Connect: Input port connect HDMI Devices like Computer,Laptop,Decoder,Set-Top box,DD Blu-ray DVD..., Output port connet project/monitor/TV...,then connect Power adapter, and press POWER ON/OFF.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Matrix has 8 HDMI Input Ports and 8 HDMI Output Ports
This MT-HD88L HDMI matrix 8X8 is a high-performance professional switching device with embedded intelligent control, which is used to switch each audio and video input signal to any output channel of audio and video synchronously or asynchronously.
HDMI matrix switch is mainly used in radio and television projects, multimedia conference halls, large screen display projects, television teaching, command and control centers and other places.
Product Feature
1.Modular design of all boards, support hot plug, stable and reliable system;
2.Use 3.4G high-bandwidth original switching chip
3.Each channel supports HDCP decoding, Blu-ray, 3D;
4.Support fast channel switching, one-to-one correspondence, and quick save and recall of scene modes;
5.Support maximum resolution: 4K x 2K @ 30Hz, 1080P 3D @ 60Hz;
6.Visualized operation buttons, the status of input and output channels can be visualized through the button indicator;
7.Supports multiple control methods such as push buttons, IR remote control, RS232 serial port, Lan port, and WEB control;
8.Support EDID rewritable and EDID -adaptive function, better adapt to the diversified display equipment on site, improve compatibility;
9.Output adjustable gain mode, so that the receiver can still receive signals after long-distance transmission. Use high-quality HDMI 1.4 cable, the input transmission distance up to 15 meters, and the output transmission distance up to 20 meters;
10.Power-off memory on-site protection function, automatically save the current scene state.

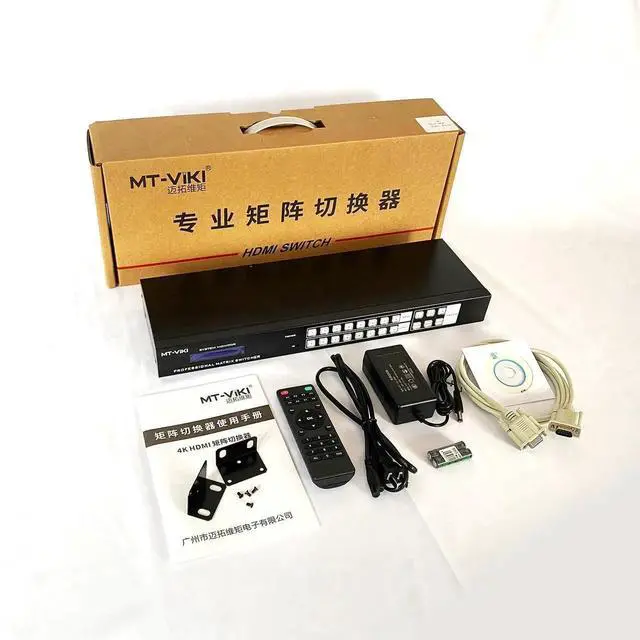

Package Included: 1xHDMI Matrix switch 8X8, 1xRS232 Cable, 1x IR Remote, 1x Rack ears & screws, 1xPower cable & adapter, 1xCD driver, 1x User Manual
Additional Features
- Package Included: 1xHDMI Matrix switch 8x8, 1xRS232 Cable, 1x IR Remote, 1x Rack ears & screws, 1xPower cable & adapter, 1x User Manual.
