8K HDMI Matrix, HDMI2.1 8K 4K Matrix Switch Splitter 8K @60Hz HDMI 2.1 Matrix 4x2 Switcher 4 in 2 Out 4K @120HZ with Remote Support 48Gbps HDR10 HDCP2.3 Dolby Vision Atmos SPDIF 5.1CH ARC eokCXOY
- Two-mode Audio Output: The HDMI matrix 4 in 2 out support RCA audio output,SPDIF audio output separately or at the same time. Also support LPCM 2.0/5.1, DTS, Dolby Digital and smart EDID management. Built-in automatic equalization and amplification to ensure optimum transmission without loss in video/audio quality.
- 8K Ultra HD: The HDMI Matrix use the latest chip HDMI 2.1 version,support 8K 60Hz,8K 30Hz,4K 120Hz,1080P 240Hz/144Hz, 720P,etc. High Speed transmission rate up to 48Gbps,support VRR,HDCP 2.3,HDR10,Dolby vision.

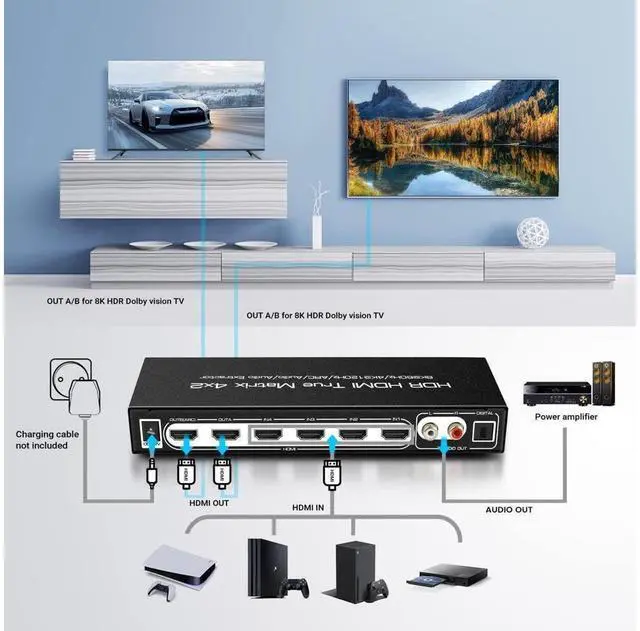

- HDMI 2.1 Matrix:The HDMI Matrix 4X2 allows 4 HDMI devices to be switched or split easily to 2 HDMI compatible monitors or projectors. Input support: Computer, PS5, PS4 pro, Xbox, NintendoSwitch, HD player, Fire TV etc. Output support: Projector, HDTV etc.
- Durable&Fast cooling:Made of premium raw materials,durable&sturdy.Built-in an efficient cooling system,empowering a stunning watching and listening experience by decreasing 70% fan noise.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

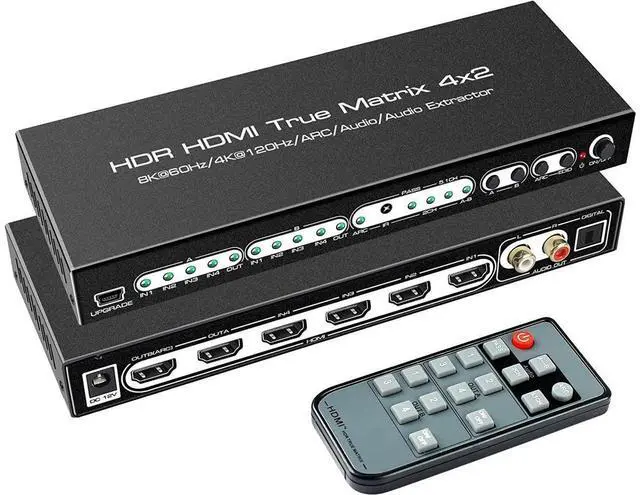

HDMI Matrix 4 in 2 out 8k 60hz HDR Dolby Vision
4K HDMI Matrix 4x2 distributes four HDMI sources to two HDMI displays reliably, supports
HDMI 2.1 8K60Hz 4:4: 4 8bit 18Gbps, HDR 10, HDR Dolby Vision, firmware upgrade via micro-USB port.

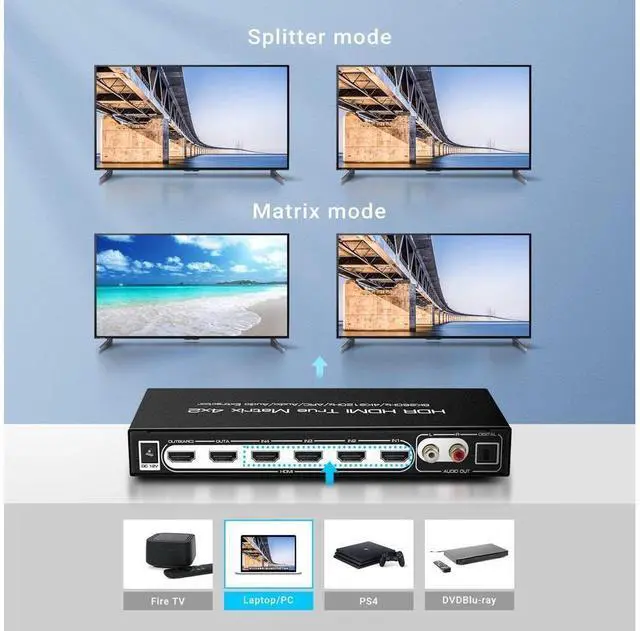

Connect 8K TV to OUTB. OUTA outputs 8K@60 or 4K@120 resolution only in split mode(In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30 or 4K@60in other modes.
The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B. Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output.
Connect the TV to the OUT A port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
Specification:
HDMI version: HDMI 2.1
Input ports: HDMI female x4
Output ports: HDMI female X2, RCA X2, Optical X1
HDMI Video: HDMI 2.1, HDCP 2.3, 8K
60Hz 4:4: 4 8bit 48Gbps HDR Dolby Vision, 4K
60Hz 4:4: 4 10bit HDR10, HDR Dolby Vision, 4K 2K, 1080p, 1080i, 3D, 1080P 120Hz, 24bit, 30bit, 36bit deep color
HDMI Audio: Dolby Digital 5.1CH Audio, Dolby Atmos, Dolby TrueHD, DTS: X, DTS-HD Master, LPCM 2.1CH, 5.1CH
Suggest HDMI cable length: HDMI 2.1 standard cable, 4320P/AWG 26 3m, 2160P/AWG 26 5m, 1080P/AWG 26 10m
Compatible systems: Windows, Mac OS, and Linux. Drive-free.
Package Contents:
4 x 2 HDMI Matrix X1
Remote Control x1
User Manual x1
