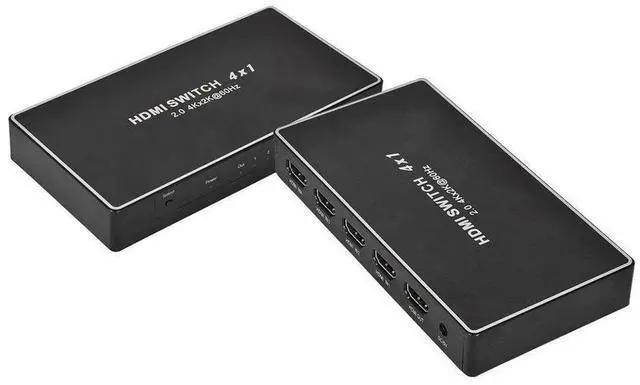

4K@60Hz HDMI Switch 4 HDMI 2.0a Ports 4 In 1 Out (4*1 HDMI) With IR Remote Control for Smart TV PC PS4 PS3 HDTV DVD eokCXOY

4K@60Hz HDMI Switch 4 HDMI 2.0a Ports 4 In 1 Out (4*1 HDMI) With IR Remote Control for Smart TV PC PS4 PS3 HDTV DVD

4x1 HDMI Switch:

The 4x1 HDMI switch allows 4 HDMI ports to be switched to a single display terminal via remote control or buttons on unit. The switcher can be placed at the end of a long HDMI cable to regenerate the HDMI signal.The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz,4K/60Hz multichannel audio

FEATURES

Support HDMI 2.0a

Support 3D

Support highest video resolution 4K/60Hz

Support 6Gbps data rate for tmds clock up to 600MHz

Support 24/30/36 bit deep color

Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres (4K/30Hz or lower)

Support standard HDMI 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz)

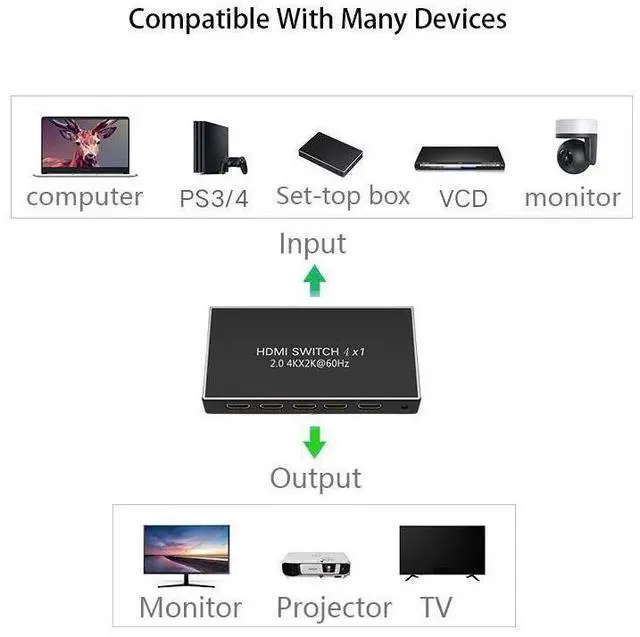

Support single and high definition display for multiple sources, such as DVD Players and Satellite Receivers, HD players, PS4, Set top Boxes

Need DC5V/1A power supply

SPECIFICATIONS:KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB

HDMI version.. HDMI 2.0a

HDMI resolution....4K/60Hz

Support video format................................................................................................3D

Support video color format .............KEY_TAB 24/30/36 bit deep color

Support audio format.DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth.600MHz

Max baud rate.....6Gbps

Input cable distance..... ..=8m AWG26 HDMI standard cable(4K/30HZ); =3m 2.0 HDMI standard cable(4K/60HZ);

Output cable distance....=8m AWG26 HDMI standard cable(4K/30HZ); =5m 2.0 HDMI standard cable(4K/60HZ);

Max working current.....350mA

Power adapter format..Input:.....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range... (-10 to +55?)

Dimension (L x W x H).144x75x21 (mm)

Weight.....110g

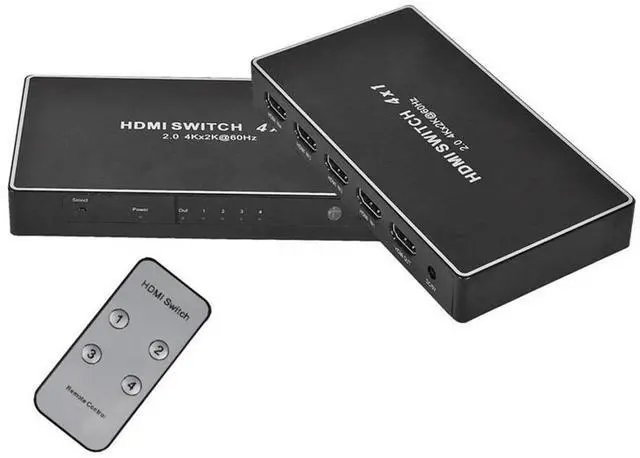

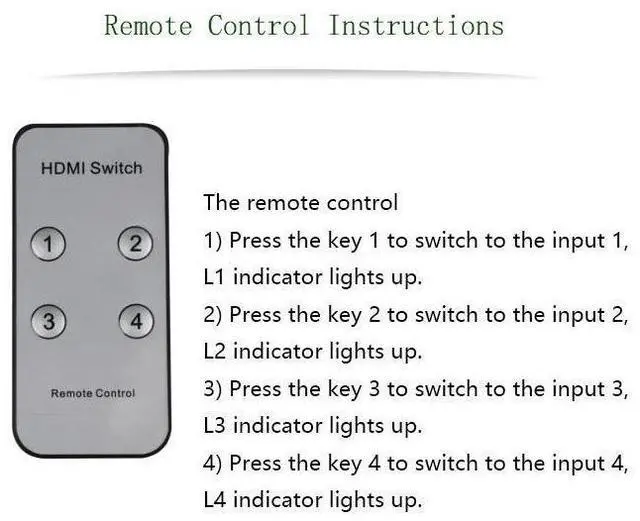

The remote control

1) Press the key 1 to switch to the input 1, L1 indicator lights up.

2) Press the key 2 to switch to the input 2, L2 indicator lights up.

3) Press the key 3 to switch to the input 3, L3 indicator lights up.

4) Press the key 4 to switch to the input 4, L4 indicator lights up.

Note: Input 1 is the default input when the power is on, and L1 indicator lights up at the same time.

Operating and Connecting

1: Connect four cables from HDMI source device into HDMI switch input.

2: Connect one cable from HDMI source device into HDMI switch output.

3: Connect 5V/1A power adapter to the HDMI switch.

The Package includes:

1. HDMI Switch

2. IR Remote Control

3. 5V DC USB Power cable

4. User Manual
